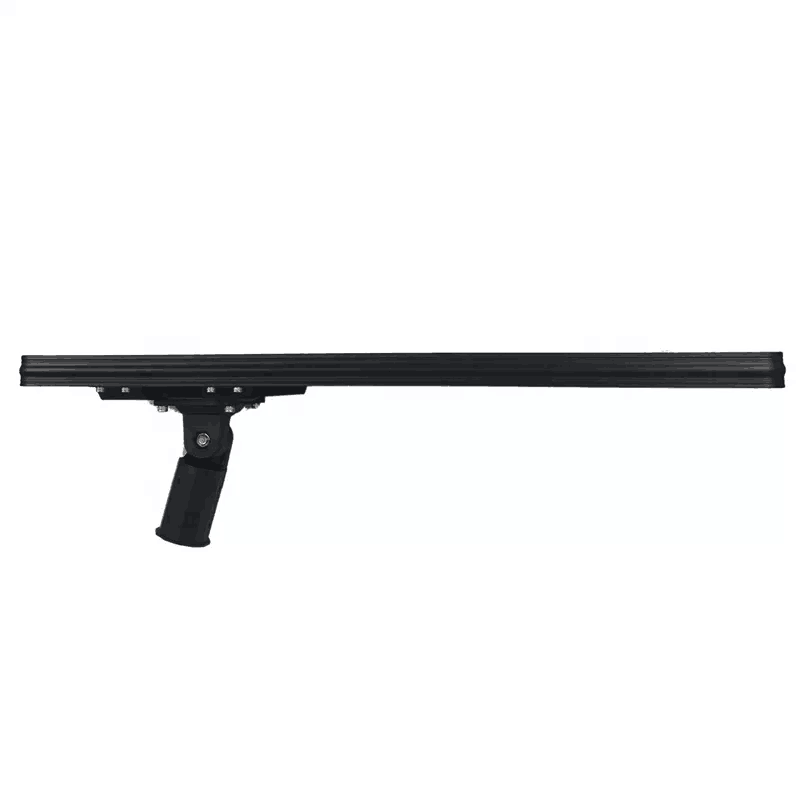

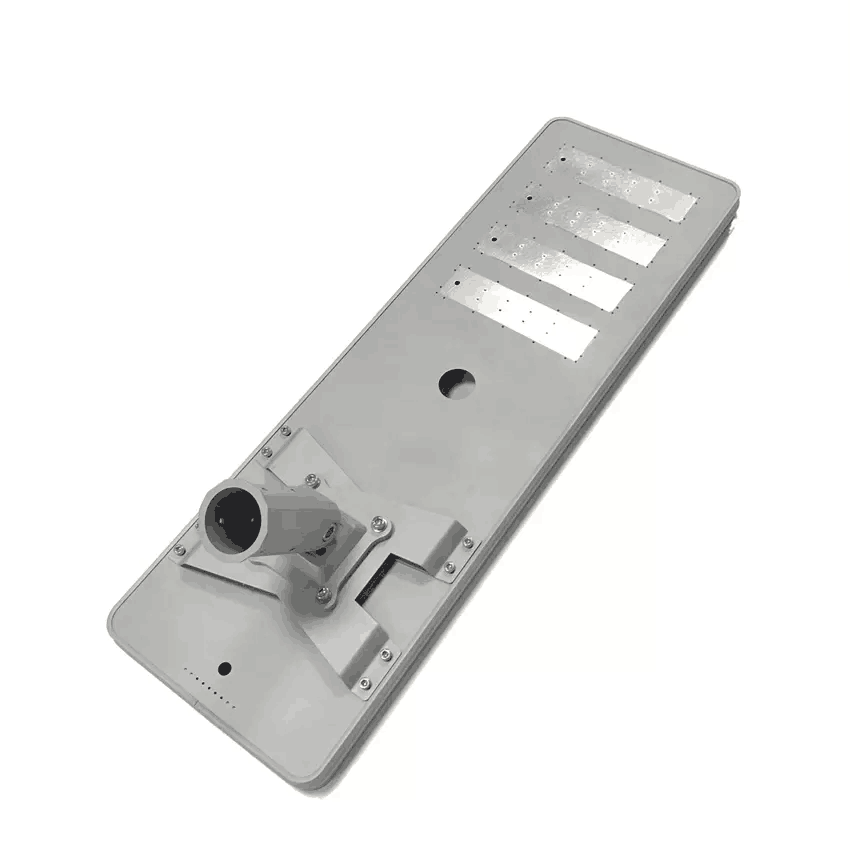

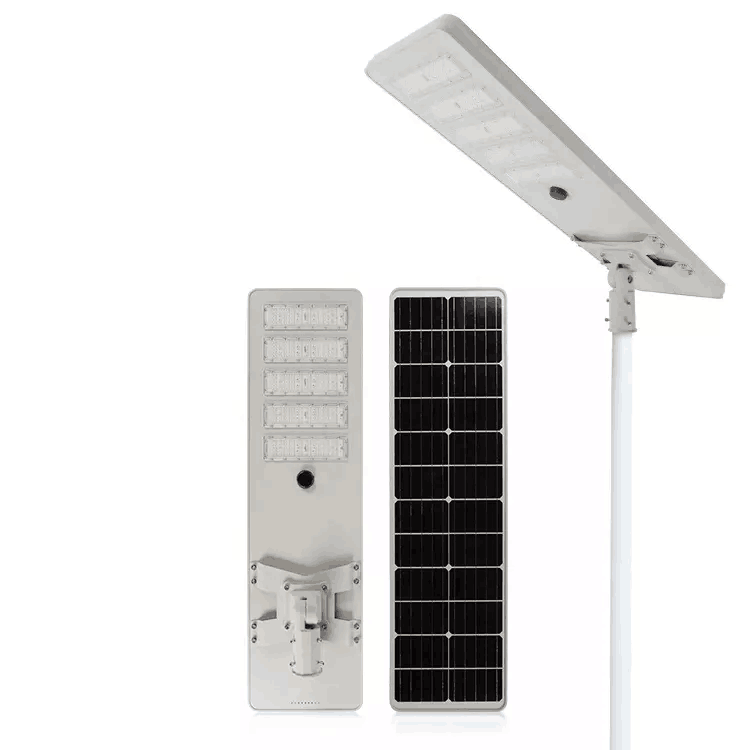

Fly Hawk Series All In One Smart Solar Street Lights

2023 All in One Solar LED Street Light for Road

Feature:

60W Solar Street Light
1.Wiring only takes one step, easy to install and maintaince

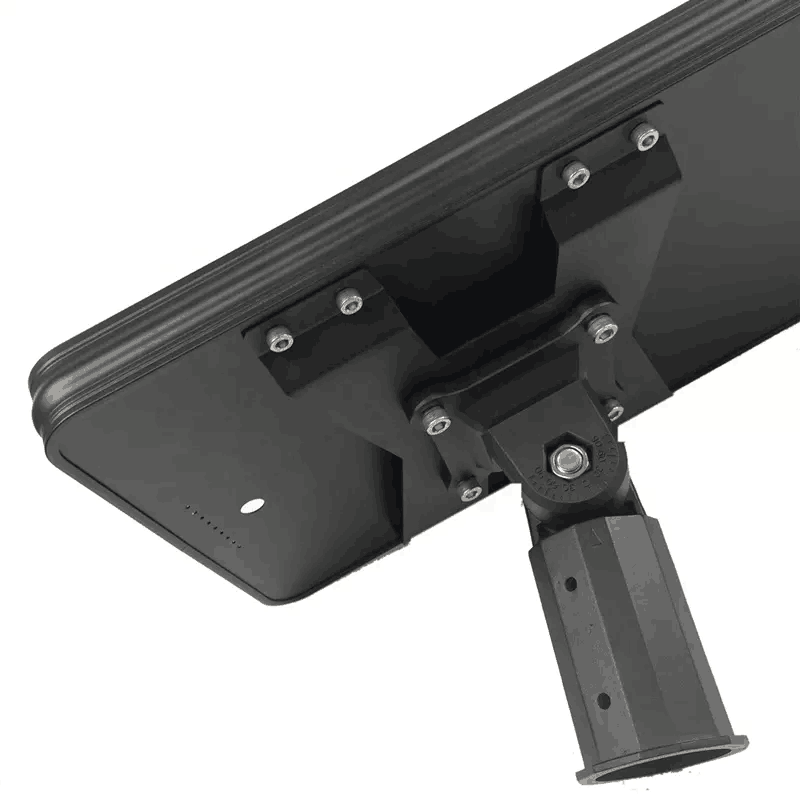

2.Adjustable angle LED module, suitable for different roads
3.140°wide lighting angle can light more area
4.Big battery box, build-in new LifePo4 battery, lifespan up to 8years
5.Adjust brightness via remote control

FH Series is HeiSolar's flagship model, tailor made for government solar street lighting project.

'Fly Hawk' shape light body, 'All In One' Modern and elegent appearance.

Rotatable solar panel design (5 angle) to maximum efficiency of solar energy.
All die-casting aluminum light body zinc plated anti-rust corrosion.

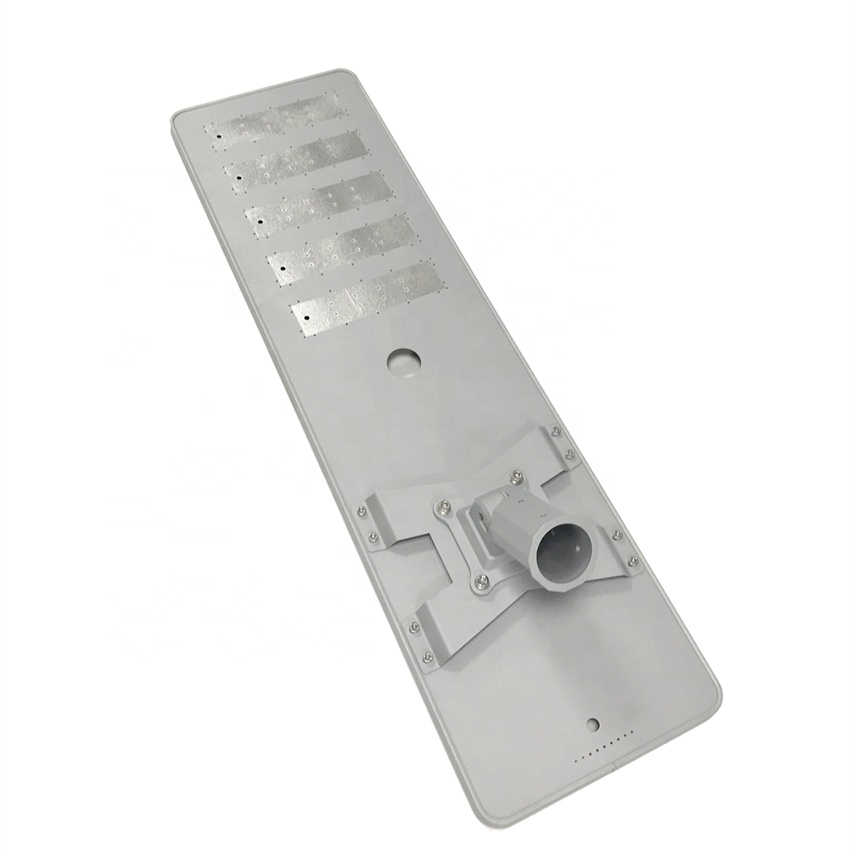

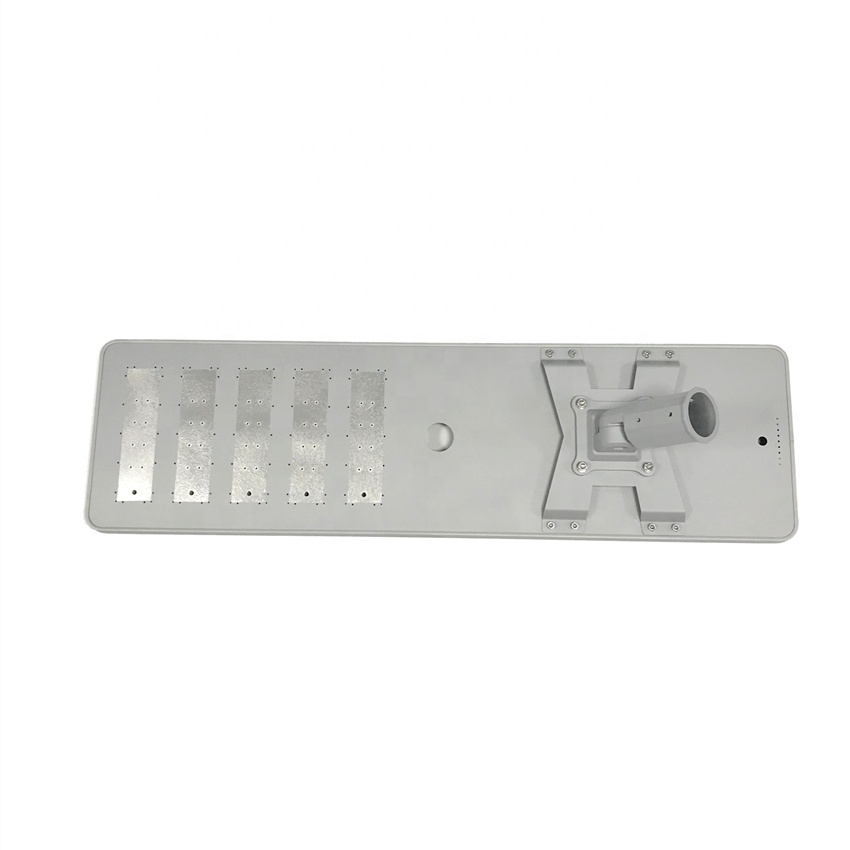

Perfect modular structure design, no wiring, easily replace the battery and other parts.
100% powered by solar. Support Customized Hybrid Solar Street Light With Wind Turbine.

Request A Free Quote

2023 All in One Solar LED Street Light for Road

Product Feactures

Here are some advantageous features of our Solar LED Lighting Products, help you understand moreover of our solar lamps

Product Videos

Technical Resources Download

Declaration of Conformity 001.jpg

DP-SSL08.pdf

DP-SSL08.pdf

EMC.pdf

IEC60598-2-3-Durapower.pdf


LVD.pdf

RoHS.pdf

Solar LED street light -Catalogue.pdf

Download

Product Description

Specification

IP65 All in One Solar LED Street Light for Road
Feature:
Wiring only takes one step, easy to install and maintaince
Adjustable angle LED module, suitable for different roads
140°wide lighting angle can light more area
Big battery box, build-in new LifePo4 battery, lifespan up to 8years
Adjust brightness via remote control Product Specifications:


Model	DP-SSL60W-2

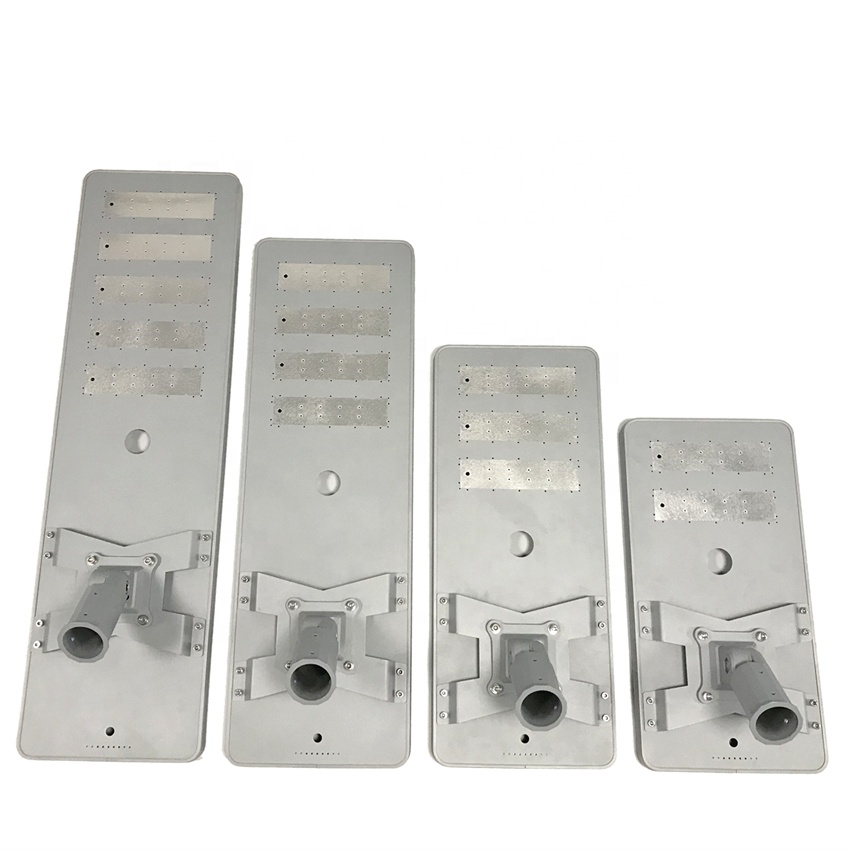

Power	30W	40W	50W	60W	80W	100w	120W
Mono Solar Panel	40W	50W	65W	80W	100W	150W	200W
Luminous Flux	170lm/w
LiFePO4 Battery	12.8V 42AH	12.8V 36AH	12.8V 36AH	12.8V 42AH	12.8V 57AH	12.8V 63AH	12.8V 72AH
Install height	4~6	5~7	6~8	7~9	8~10	9~12	10~12
Size(mm)	575280100	575280100	665280100	665280100	755280100	845280100	845280100
Solar charging time	6-8hours
Lighting mode	Light Control+Motion Sensor
Material	Aluminium alloy + PMMA
IP Class	IP65
Work temperature	-25℃ to 65℃

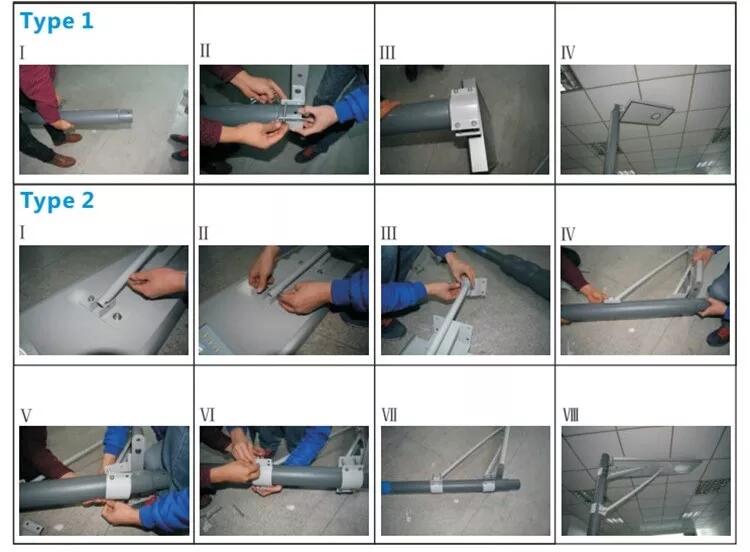

2448 2307

FAQ

 Q1. Can I provide sample orders for your products? A: Of course, you can check our quality before ordering.If you have any requirements, please contact us. Q2. Do you have a minimum order quantity requirement? Can you accept mixed goods for FCL orders? A: We have low MOQ requirement for 1pcs. We prefer you can mix items for FCL order for save both side cost.. Q3. How to ensure solar street light quality? A: Our factory was established in 2007, and our factory will inspect each lamp 4 times. At the same time, we have a professional quality control team responsible for checking and controlling all orders from raw materials to finished products. All products will undergo high-pot test and lighting aging test. Q4. What is your payment method for accepting full payment? A:Provide a variety of payment methods, including PayPal,Visa, MasterCard, Alibaba Trade Assurance, Western Union and wire transfer. Q5. Is it possible to put our logo on your solar street light or product packaging? A:Of course, we have a factory, welcome to customize your brand, LOGO, color, product manual, packaging, etc. The minimum order quantity is 10 per piece. Q6. Why do our customers choose us? A:Reply <3 hours. Delivery time> 99%. Quality control> 99% After-sales service> 99% 100% QC inspection before timely delivery. Q7: Can you OEM ODM or SKD for me? A:We accept all OEM ODM and SKD orders, just contact us and give me your design. We will provide you with a reasonable price and make samples for you as soon as possible. The minimum order quantity is 500 pcs.

Product Description

Specification

IP65 All in One Solar LED Street Light for Road
Feature:
Wiring only takes one step, easy to install and maintaince
Adjustable angle LED module, suitable for different roads
140°wide lighting angle can light more area
Big battery box, build-in new LifePo4 battery, lifespan up to 8years
Adjust brightness via remote control Product Specifications:


Model	DP-SSL60W-2
Power	30W	40W	50W	60W	80W	100w	120W
Mono Solar Panel	40W	50W	65W	80W	100W	150W	200W
Luminous Flux	170lm/w
LiFePO4 Battery	12.8V 42AH	12.8V 36AH	12.8V 36AH	12.8V 42AH	12.8V 57AH	12.8V 63AH	12.8V 72AH
Install height	4~6	5~7	6~8	7~9	8~10	9~12	10~12
Size(mm)	575280100	575280100	665280100	665280100	755280100	845280100	845280100
Solar charging time	6-8hours
Lighting mode	Light Control+Motion Sensor
Material	Aluminium alloy + PMMA
IP Class	IP65
Work temperature	-25℃ to 65℃

2448 2307

FAQ

 Q1. Can I provide sample orders for your products? A: Of course, you can check our quality before ordering.If you have any requirements, please contact us. Q2. Do you have a minimum order quantity requirement? Can you accept mixed goods for FCL orders? A: We have low MOQ requirement for 1pcs. We prefer you can mix items for FCL order for save both side cost.. Q3. How to ensure solar street light quality? A: Our factory was established in 2007, and our factory will inspect each lamp 4 times. At the same time, we have a professional quality control team responsible for checking and controlling all orders from raw materials to finished products. All products will undergo high-pot test and lighting aging test. Q4. What is your payment method for accepting full payment? A:Provide a variety of payment methods, including PayPal,Visa, MasterCard, Alibaba Trade Assurance, Western Union and wire transfer. Q5. Is it possible to put our logo on your solar street light or product packaging? A:Of course, we have a factory, welcome to customize your brand, LOGO, color, product manual, packaging, etc. The minimum order quantity is 10 per piece. Q6. Why do our customers choose us? A:Reply <3 hours. Delivery time> 99%. Quality control> 99% After-sales service> 99% 100% QC inspection before timely delivery. Q7: Can you OEM ODM or SKD for me? A:We accept all OEM ODM and SKD orders, just contact us and give me your design. We will provide you with a reasonable price and make samples for you as soon as possible. The minimum order quantity is 500 pcs.

Easy to installation in 5 mins.

Each light in a commercial system is independent of each other and doesn't need main power grid connectivity. No digging, no wiring, simply install and let the sun do the work!

企业微信截图_3c9a7666-e949-43ec-97c3-d7ed65fcc87e

1. Install bracket support

Fix the multi-angel brackrt buckles on the solar panel with 6pcs M6x20 screws. Be sure 'up' towards to led light.

企业微信截图_0f008043-107d-4d63-904b-16ac65a2183b

2. Rotating Platform

Use 6pcs M6x12 screws to fix the 360° rotating platform,according to the orientarion of the road.

企业微信截图_98917ffe-354e-4a87-afe0-13ffbc9cc70e

3. Combination

Use 2pcs M8x30 screws and 1set M8x100 screw to fix the multi-angle brackrt buckles. Choose the right holes according to the installation position of the sun at 2:00pm.
