1) 3 times peak power, excellent loading capability.

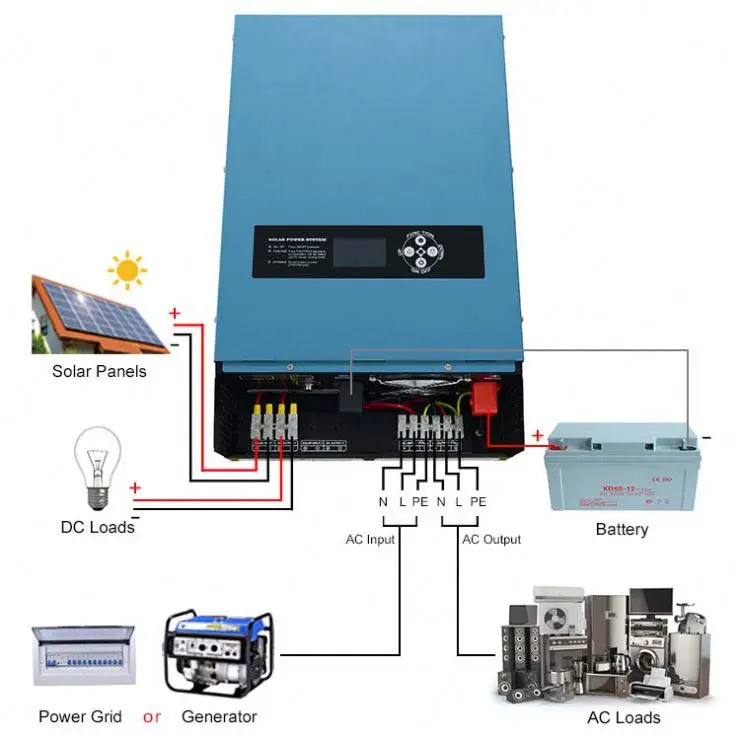

2) Combine inverter/solar controller/battery all in one.
3) Multiple output: 2*AC output socket, 4*DC 12V, 4*USB.
4) Working mode AC prior/ECO mode/Solar prior selectable.
5) AC charging current 0-30A selectable.
6) LVD/HVD/Charging voltage adjutable, suitable for kinds of battery
7) Adding fault code to monitor real-time work situations.
8) Continuous stable pure sine wave output with inbuilt AVR stabilizer.
9) Inbuilt automatic AC charger and AC mains switcher, stwitch time ≤ 4ms.
10) RS485/MOBILE APP(WIFI or GPRS) remote mornitoring.
Our Photovoltaic Panel Solar Energy System is not only environmentally friendly but also cost-effective. By significantly reducing your reliance on traditional energy sources, you can lower your electricity bills while positively impacting the environment. It's a win-win situation.
Installing and maintaining our system is hassle-free, thanks to its user-friendly design and robust construction. With easy-to-follow installation instructions and minimal maintenance requirements, you can enjoy the benefits of solar power without the complexities.
Investing in our Photovoltaic Panel Solar Energy System with Battery is an investment in a sustainable future. By embracing clean energy and reducing your carbon emissions, you're making a significant contribution to combating climate change and preserving our planet for future generations.
Ready to leap to a greener and more sustainable energy solution? Contact us today to learn more about our Photovoltaic Panel Solar Energy System with Battery and how it can transform energy consumption. Together, let's embrace the sun's power and pave the way for a brighter tomorrow.
| Model | DP-SPS20K-A-V1 | DP-SPS30K-A-V1 | DP-SPS60K-A-V1 | DP-SPS120K-A-V1 |
| Max. PV array input voltage | 800Vdc | |||
| Recommended PV Module Configuration | 2 channels, each channel 4 in parallel and 13 in series 330Wp, total 34320W | 2 channels, each channel 4 in parallel and 13 in series 330Wp, total 34320W | 2channels，each channel 8 in parallel and 13 in series 330Wp,total 68640W | 4channels，each channel 8 in parallel and 13 in series 330Wp,total 137280W |
| MPPT voltage range | 250~750Vdc | 250~750Vdc | 404~750Vdc | 404~750Vdc |
| Rated voltage | 230Vdc | 230Vdc | 384Vdc | 384Vdc |
| Type | Gel/lithium | |||
| Max. charge current | 150A | 150A | 150A | 300A |
| Grid voltage range | 304Vac~485Vac | 304Vac~485Vac | 304Vac~485Vac | 304Vac~485Vac |
| Grid voltage frequency | 50/60Hz (±5%) | 50/60Hz (±5%) | 50/60Hz (±5%) | 50/60Hz (±5%) |
| Voltage standard | 3-phase 4-wire，3W+1PE | 3-phase 4-wire，3W+1PE | 3-phase 4-wire，3W+1PE | 3-phase 4-wire，3W+1PE |
| Rated voltage | 400Vac(380/400/415Vaccan be set) | |||
| Rated power | 20kW | 30kW | 60kW | 120kW |
| Total harmonic distortion（Ithd） | ＜3% | |||
| Power factor | >0.99 | |||
| Rated output capacitor | 20000VA | 30000VA | 60000VA | 120000VA |
| Rated output power（linear load | ） 20000W | 30000W | 60000W | 120000W |
| Rated voltage | 400Vac(380/400/415Vac can be set) | |||
| Grid voltage frequency | 50/60Hz (±5%) | |||
| Voltage standard | Three-phase five-wire, 3W+1N+1PE, single-phase output capacity :30% rated power | |||
| Total Harmonic Distortion（Vthd) | <3% | |||
| Overload | 1min@≥120% load;10min@ 110%load | |||
| Autible noice | <62dB | |||
| Protecition level | IP21 | |||
| Cooling method | Forced cooling | |||
| Operate temp. | -20～+55℃ | |||
| Storage temp. | -25～+70℃ | |||
| Status indicator | LCD+LED | |||
| Interface | RS485 | |||
| Elevation | 2000m(>2000m derating operate) | |||
| Dimension(W*D*H)(mm) | 600*781*1300 | 600*781*1300 | 600*781*1600 | 600*781*2000 |
| Weight (kg) | 240Kg | 240Kg | 290Kg | 360Kg |

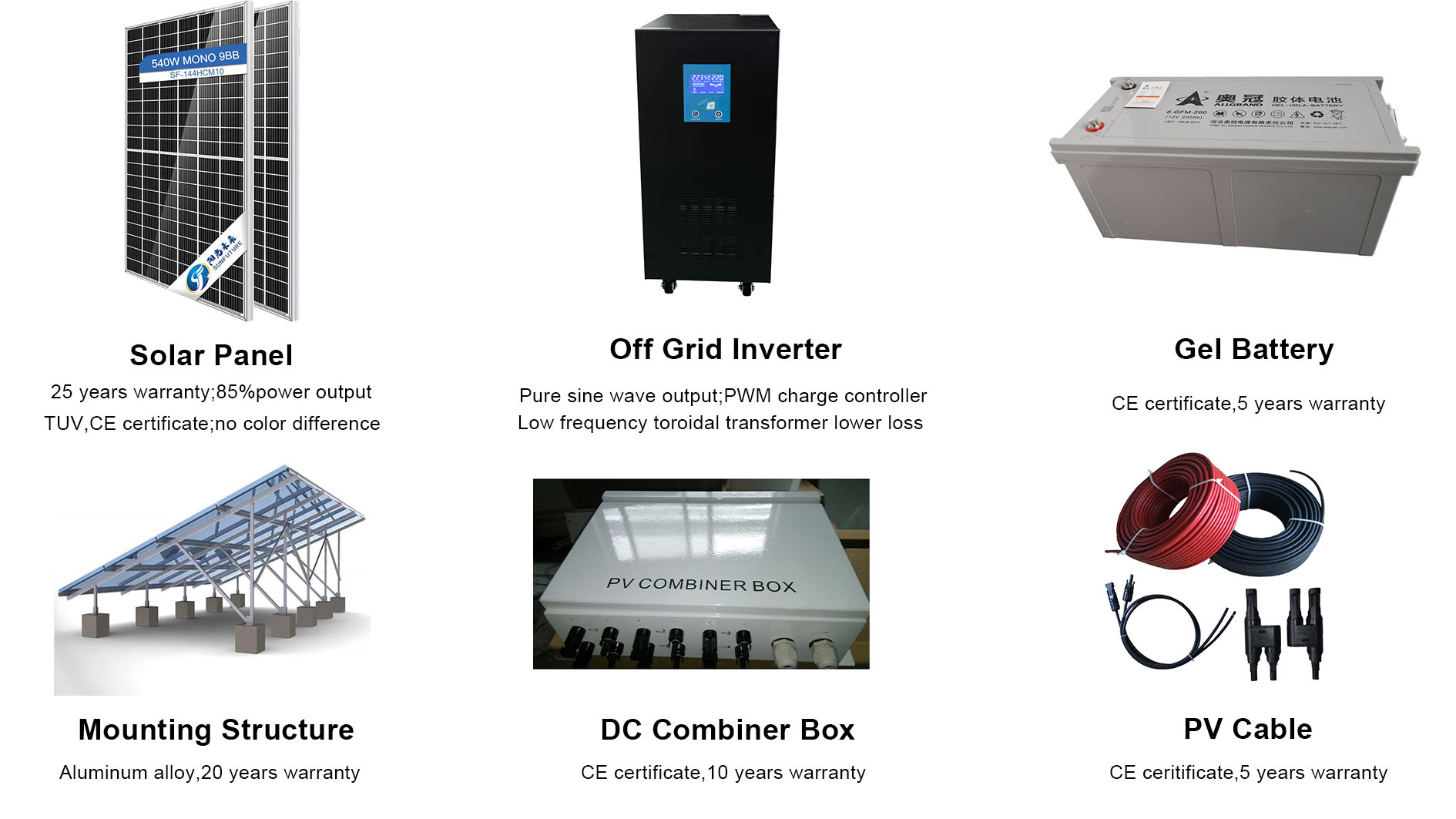

| No. | Name | Specification | Quan. | Unit |
| 1 | Solar panels | P=13600Wp | pcs | |
| 2 | Solar structure | Hot galvanizing，U shaped steel, ground pre-cast bolt installation, warranty 15 years | 1 | pcs |
| 3 | PV combine box | DC Combiner box with SPD & DC switch Model: MSPV2-1 (1000V) (between PV array and Solar inverter & controller) | 2 | pcs |
| 4 | Solar off-grid inverter with hybrid controller (high frequency) | 30kW,PV input 404VDC~750VDC, Charge 150A ,230V,output 60kW, three phase 380V/50Hz， | 1 | pcs |
| 5 | lithium battery | 230V300AH，69kWh lithium battery | 1 | pcs |
| 6 | Cable | PV cable,1000VDC, 4mm2, Connetor | 1 | pcs |
