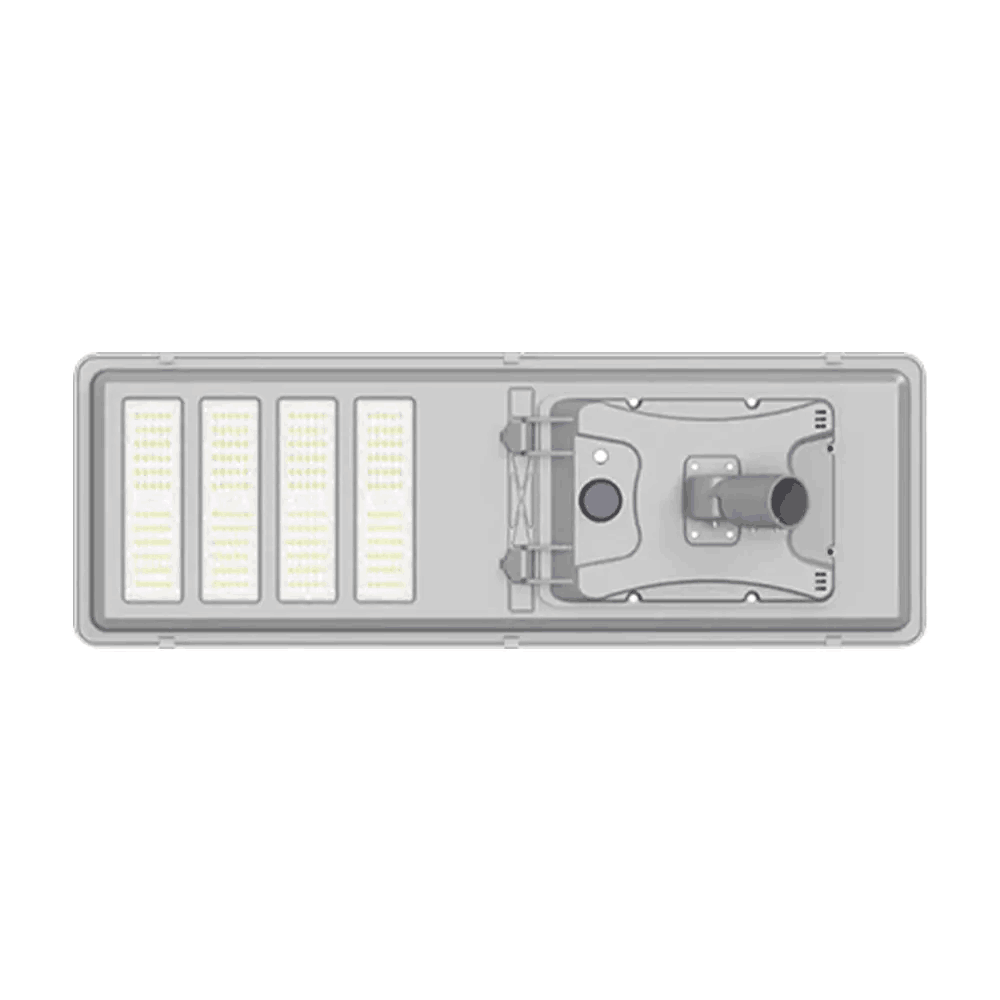

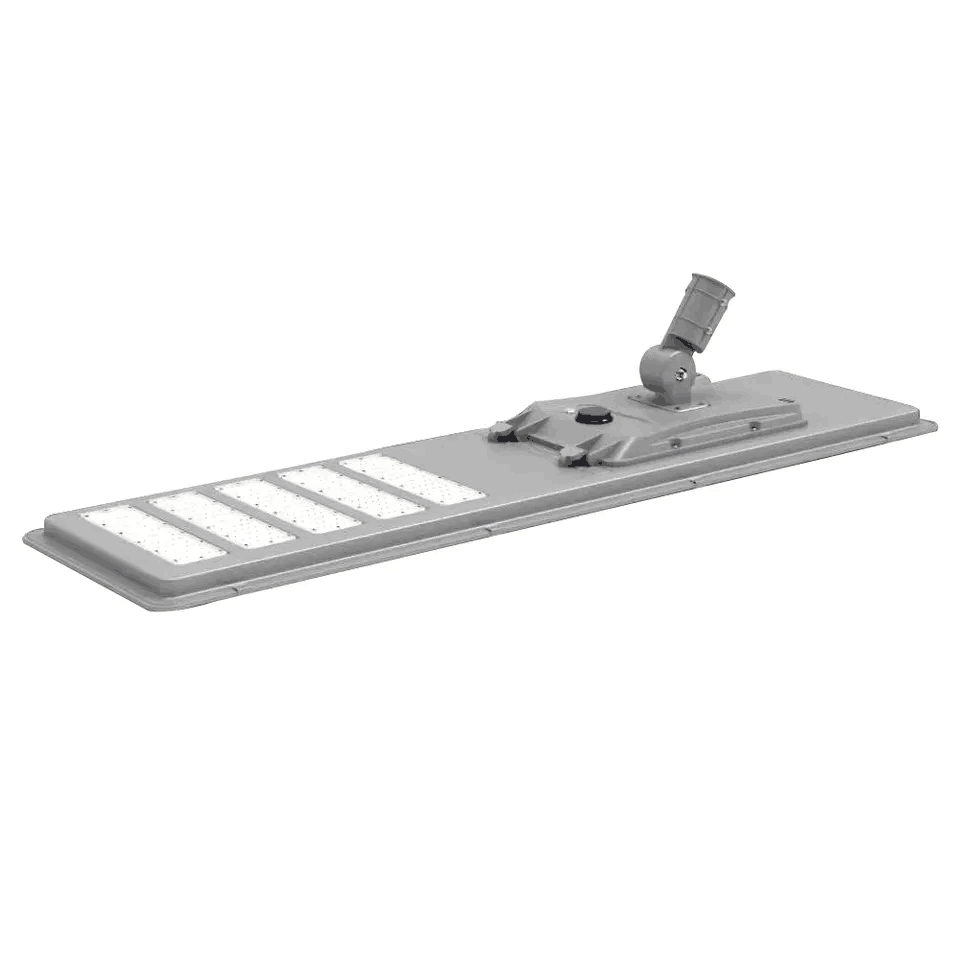

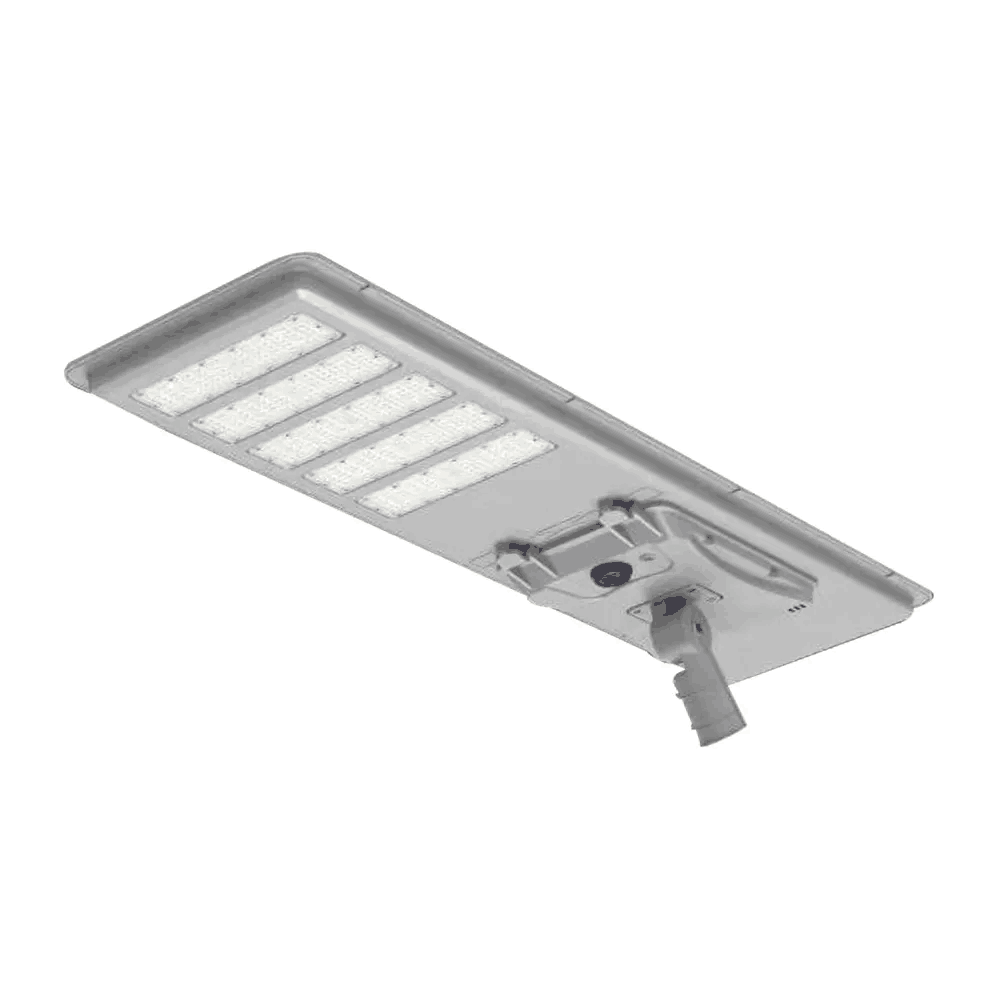

Fly Hawk Series All In One Smart Solar Street Lights

Solar Street Outdoor Road Project Lighting

*Solar Street Light Feature:
*Elegant Integrated Design,Aluminum alloy case
*Night sensor + PIR motion sensor+Remote Control
*120°wide lighting angle, 12m detecting distance
* Support 3 nights after full charging

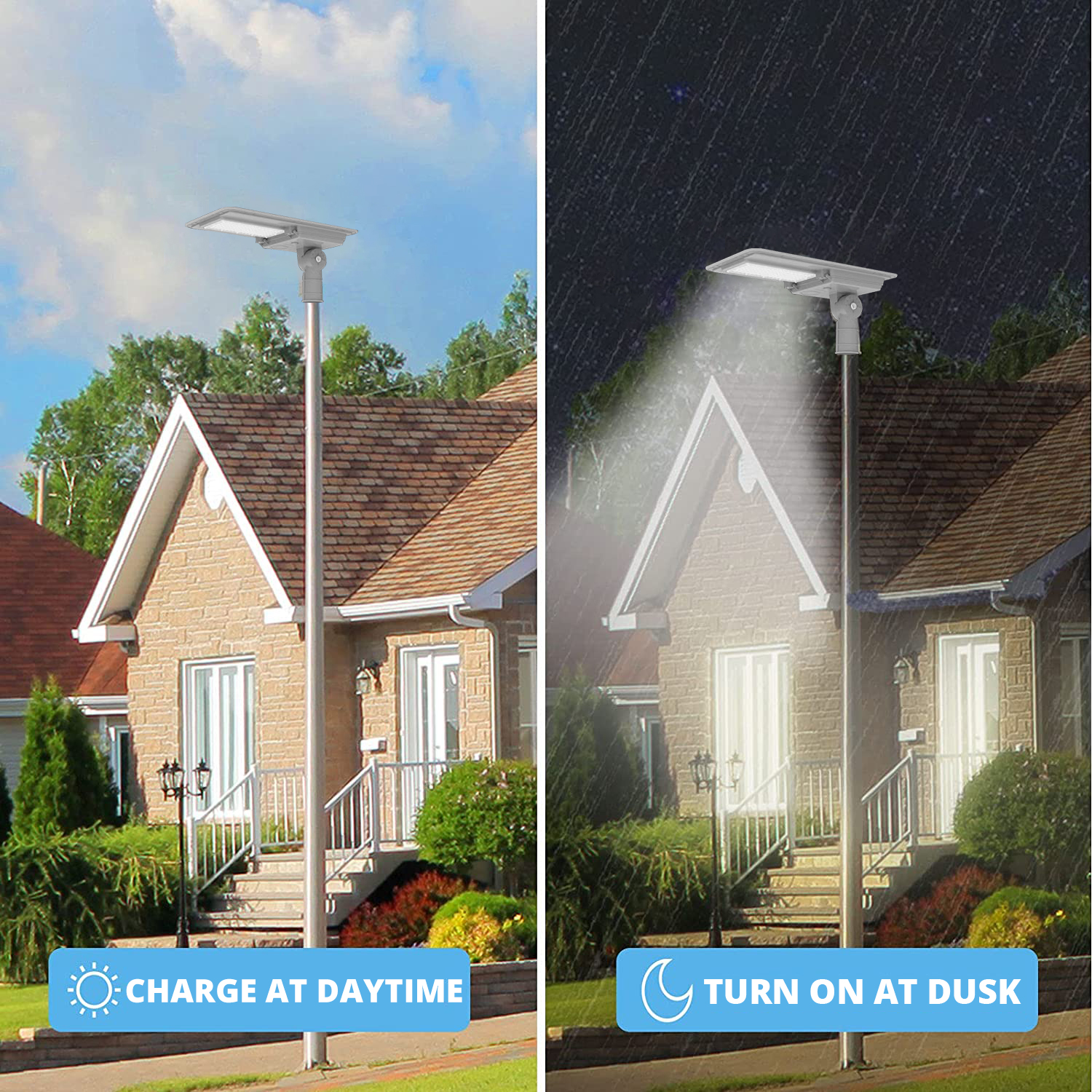

*Easy to install and Auto on/off/PIR

*Charging Temperature: 0~60℃
*Discharging Temperature: -20~60℃
*Installation height: 4-8m

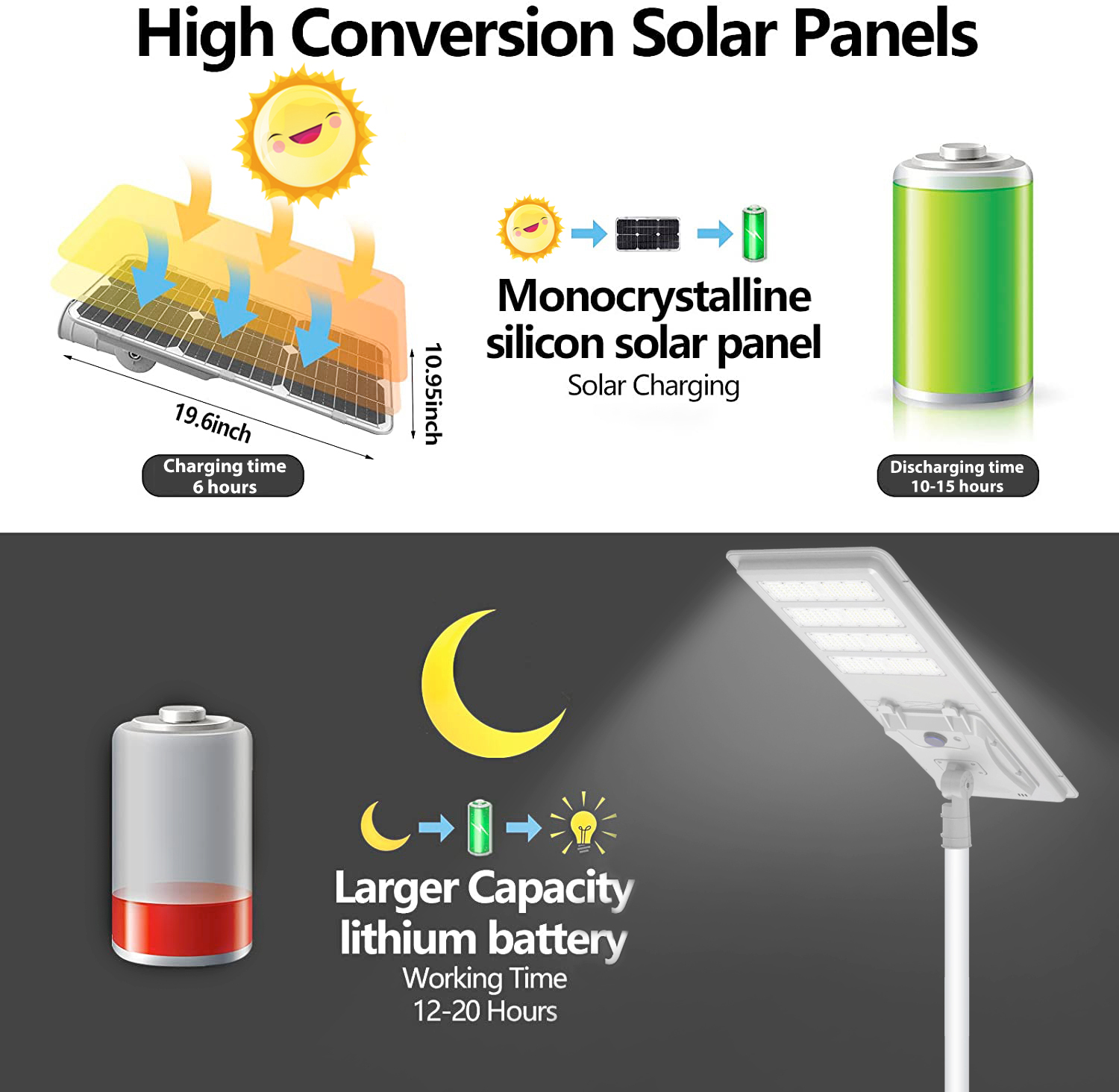

*Charging time: 6-8 hours by bright sunlight
*Discharging time: 5 consecutive rainy days
*With timing function, with PIR Sensor, with remote control
*Solar Panel warranty 15 years
*Battery warranty: 3 years

FH Series is HeiSolar's flagship model, tailor made for government solar street lighting project.

'Fly Hawk' shape light body, 'All In One' Modern and elegent appearance.

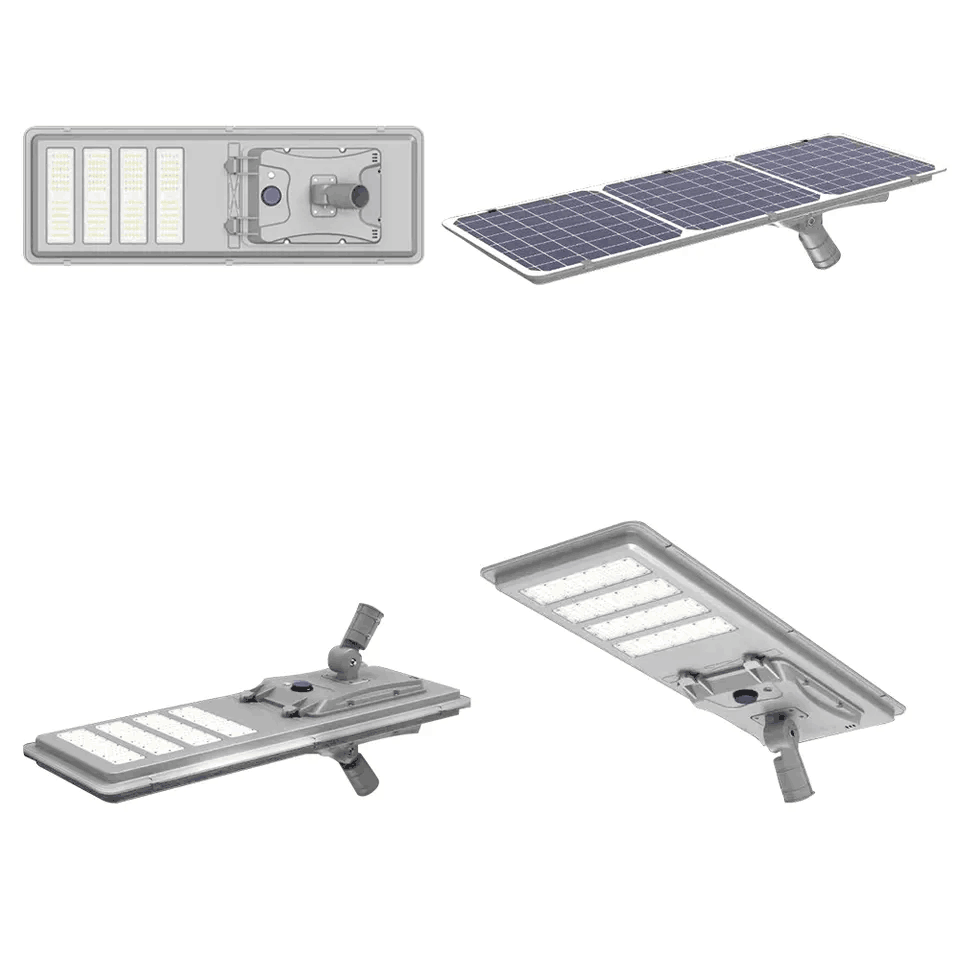

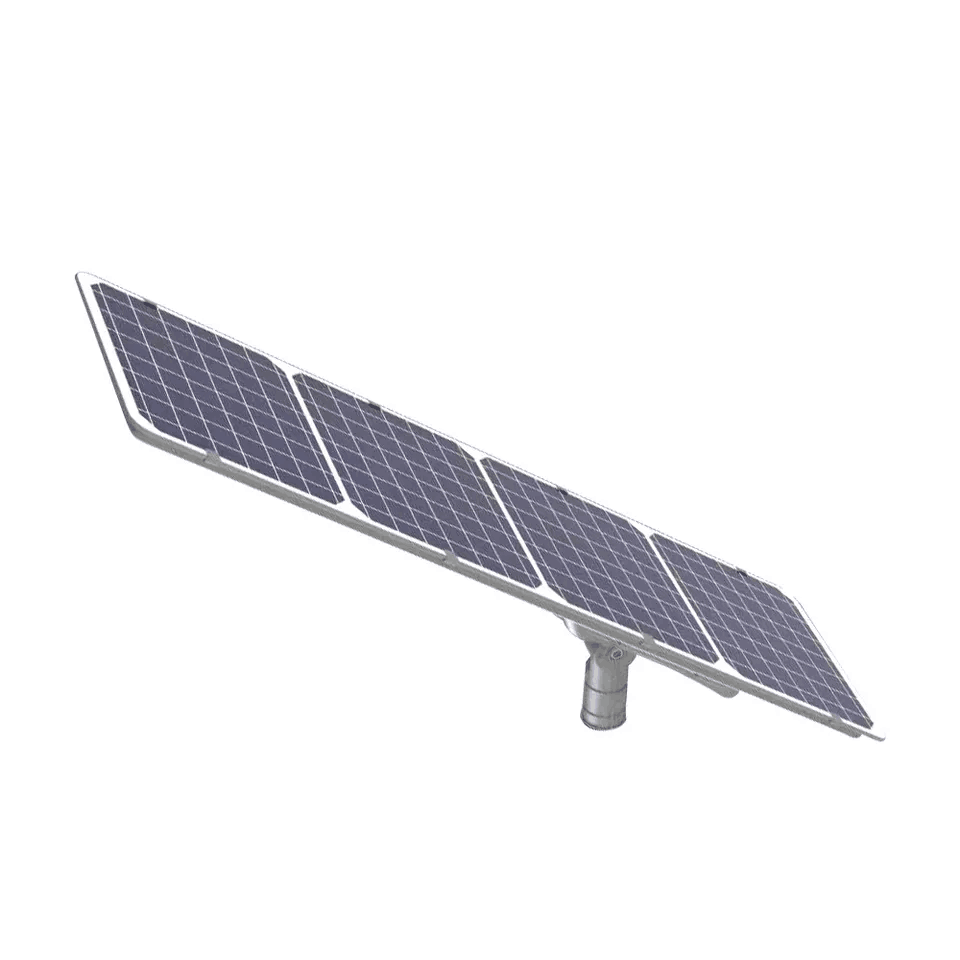

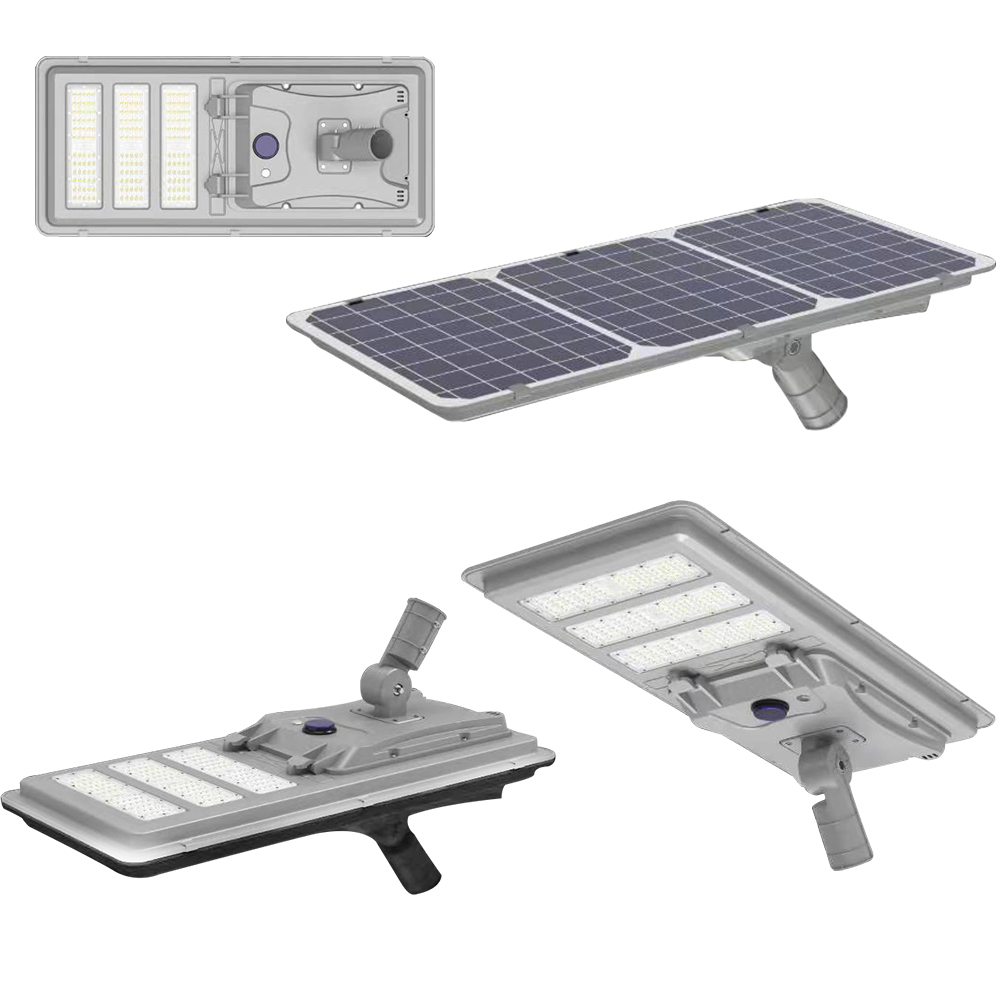

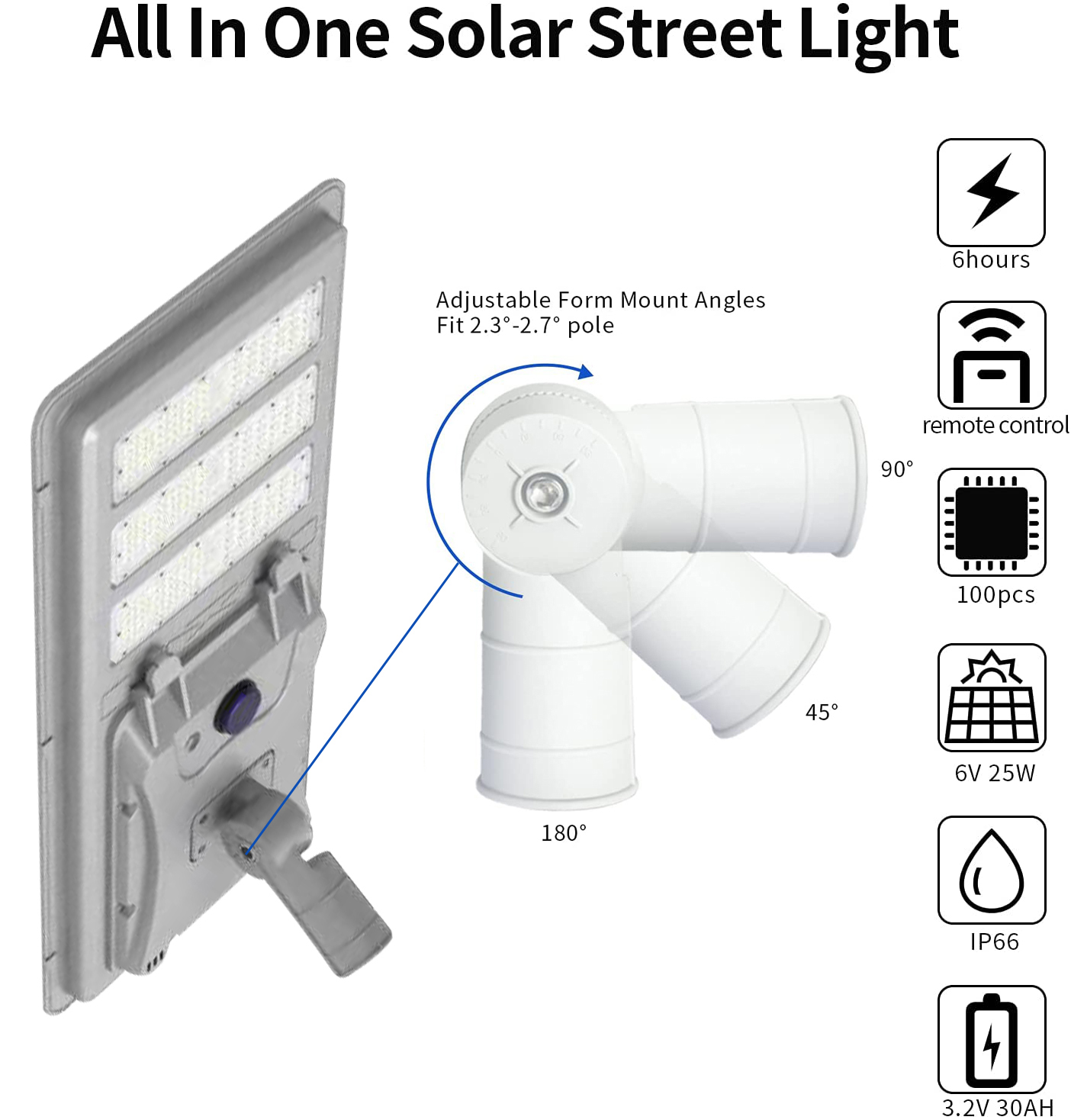

Rotatable solar panel design (5 angle) to maximum efficiency of solar energy.
All die-casting aluminum light body zinc plated anti-rust corrosion.
Perfect modular structure design, no wiring, easily replace the battery and other parts.
100% powered by solar. Support Customized Hybrid Solar Street Light With Wind Turbine.
Product Feactures
Here are some advantageous features of our Solar LED Lighting Products, help you understand moreover of our solar lamps
Product Videos
Technical Resources Download
Declaration of Conformity 001.jpg
DP-SSL08.pdf
DP-SSL08.pdf
EMC.pdf
IEC60598-2-3-Durapower.pdf
LVD.pdf
RoHS.pdf
Solar LED street light -Catalogue.pdf

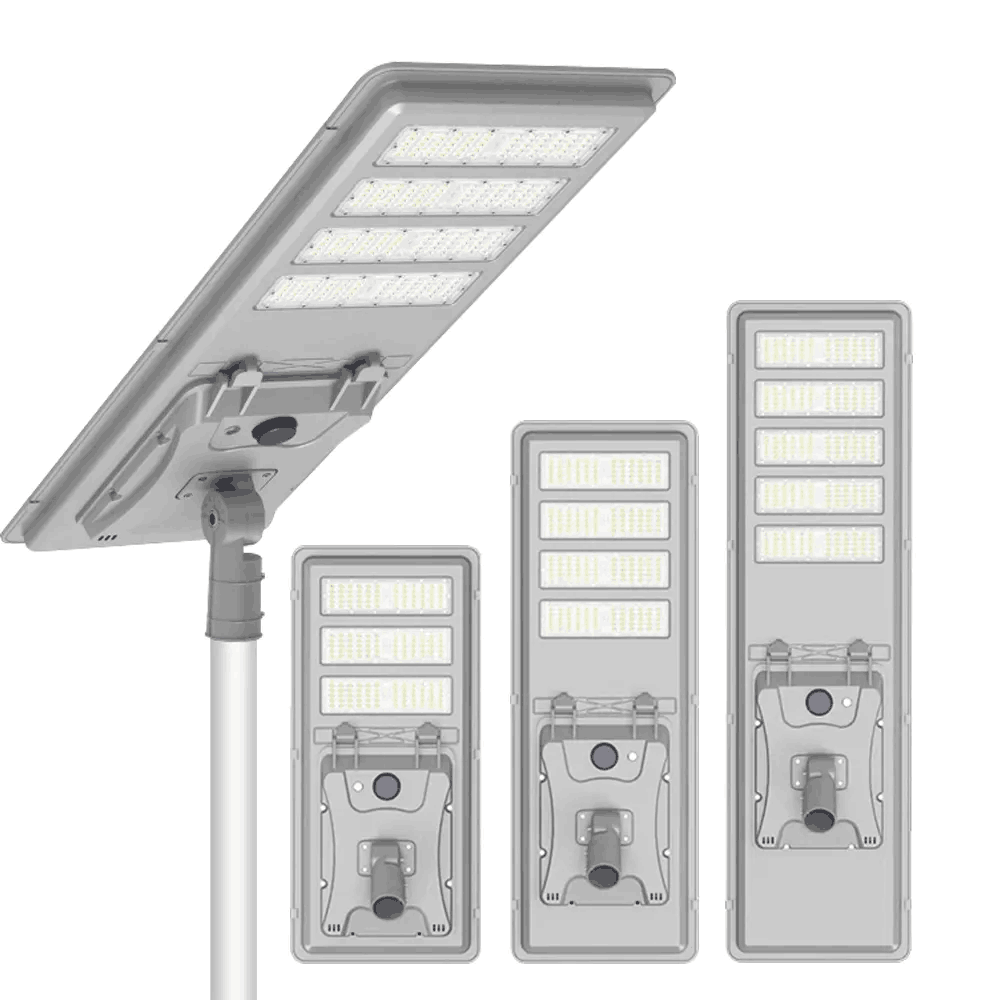

Solar Street Lights Products Outdoor Road Project Lighting Waterproof 100W-500W LED 200lm/w IP66 Motion Sensor


Model
DP-SSL30WU
DP-SSL40WU
DP-SSL60WU
Power
30W
40W
60W
Solar panel Max power
36V / 45W
36V / 60W
36V / 80W
Battery Type
3.2V / 240WH
3.2V / 336WH
12.8V / 460WH
G.W
12.5kg
13.5kg
17kg
Product size
730*390*200mm
850*390*200mm
1350*390*200mm
Model
DP-SSL80WU
DP-SSL100WU
DP-SSL120WU
Power
80W
100W
120W
Solar panel Max power
36V / 100W
36V / 105W
36V / 105W
Battery Type
12.8V / 537WH
25.6V / 615WH
25.6V / 768WH
G.W
19kg
23kg
23kg
Product size
1600*390*200mm
1720*390*200mm
1720*390*200mm


led chip brand
SMD 3030
CCT
6000-6500k
Light distribution
Batwing lens with polarized light
Space between light
25-30M
Lighting time
5-7 rainy days
Warranty period
3 years
Working TEMP
-20~+60
LED life time
50000h

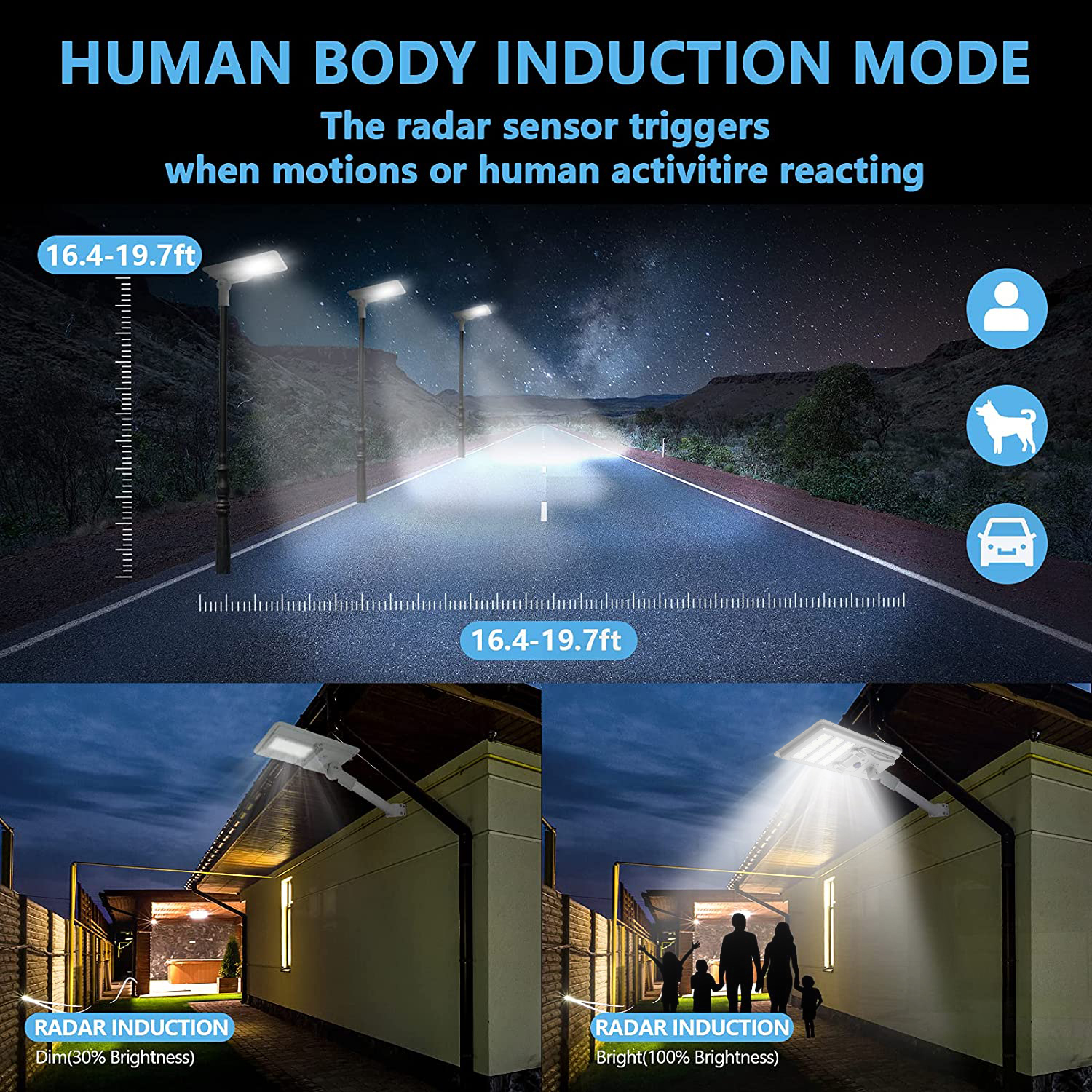

Solar Street Light Working Modes

High Quality Solar Light Waterproof 30w 40w 60w 90w 100w 120w Outdoor Aluminum Road Solar LED Street LightsFeatured Golden Solar Streetlight Supplier Top Quality Parking Garden Outdoor Led Solar Induction Street Light with PV Panel

41001546

Q1. Do you have warehouse in Europe?


A:Yes, we do have a warehouse in Germany, with enough stock.


Q2.Can I have a sample order for led street light?

A:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q3. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 15-20 days for order quantity more than 500pcs.

The actual delivery time depends on order quantity and production plan.


Q4. Do you have any MOQ limit for solar led street light order?

A: Low MOQ, 1pc for sample checking is available


Q5. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.


Q6. How to proceed an order for solar led light?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.


Q7. Is it OK to print my logo on solar led street light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


Q8: Do you offer guarantee for the all in one solar street lights?

A: Yes, we offer 10 years warranty to our solar street lights.


Q9: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.


  • Product Description

    Solar Street Lights Products Outdoor Road Project Lighting Waterproof 100W-500W LED 200lm/w IP66 Motion Sensor


    Model
    DP-SSL30WU
    DP-SSL40WU
    DP-SSL60WU
    Power
    30W
    40W
    60W
    Solar panel Max power
    36V / 45W
    36V / 60W
    36V / 80W
    Battery Type
    3.2V / 240WH
    3.2V / 336WH
    12.8V / 460WH
    G.W
    12.5kg
    13.5kg
    17kg
    Product size
    730*390*200mm
    850*390*200mm
    1350*390*200mm
    Model
    DP-SSL80WU
    DP-SSL100WU
    DP-SSL120WU
    Power
    80W
    100W
    120W
    Solar panel Max power
    36V / 100W
    36V / 105W
    36V / 105W
    Battery Type
    12.8V / 537WH
    25.6V / 615WH
    25.6V / 768WH
    G.W
    19kg
    23kg
    23kg
    Product size
    1600*390*200mm
    1720*390*200mm
    1720*390*200mm


    led chip brand
    SMD 3030
    CCT
    6000-6500k
    Light distribution
    Batwing lens with polarized light
    Space between light
    25-30M
    Lighting time
    5-7 rainy days
    Warranty period
    3 years
    Working TEMP
    -20~+60
    LED life time
    50000h






    Solar Street Light Working Modes

    High Quality Solar Light Waterproof 30w 40w 60w 90w 100w 120w Outdoor Aluminum Road Solar LED Street LightsFeatured Golden Solar Streetlight Supplier Top Quality Parking Garden Outdoor Led Solar Induction Street Light with PV Panel

    41001546

    Q1. Do you have warehouse in Europe?


    A:Yes, we do have a warehouse in Germany, with enough stock.


    Q2.Can I have a sample order for led street light?

    A:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


    Q3. What about the lead time?

    A:Sample needs 3-5 days, mass production time needs 15-20 days for order quantity more than 500pcs.

    The actual delivery time depends on order quantity and production plan.


    Q4. Do you have any MOQ limit for solar led street light order?

    A: Low MOQ, 1pc for sample checking is available


    Q5. How do you ship the goods and how long does it take to arrive?

    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.


    Q6. How to proceed an order for solar led light?

    A: Firstly let us know your requirements or application.

    Secondly We quote according to your requirements or our suggestions.

    Thirdly customer confirms the samples and places deposit for formal order.

    Fourthly We arrange the production.


    Q7. Is it OK to print my logo on solar led street light product?

    A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


    Q8: Do you offer guarantee for the all in one solar street lights?

    A: Yes, we offer 10 years warranty to our solar street lights.


    Q9: How to deal with the faulty?

    A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

    Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.


Easy to installation in 5 mins.

Each light in a commercial system is independent of each other and doesn't need main power grid connectivity. No digging, no wiring, simply install and let the sun do the work!

1. Install bracket support

Fix the multi-angel brackrt buckles on the solar panel with 6pcs M6x20 screws. Be sure 'up' towards to led light.


2. Rotating Platform

Use 6pcs M6x12 screws to fix the 360° rotating platform,according to the orientarion of the road.



3. Combination

Use 2pcs M8x30 screws and 1set M8x100 screw to fix the multi-angle brackrt buckles. Choose the right holes according to the installation position of the sun at 2:00pm.

4. Install light

Fix the light fixture to the pole with 8pcs M10x25 screws.
