Fly Hawk Series All In One Smart Solar Street Lights

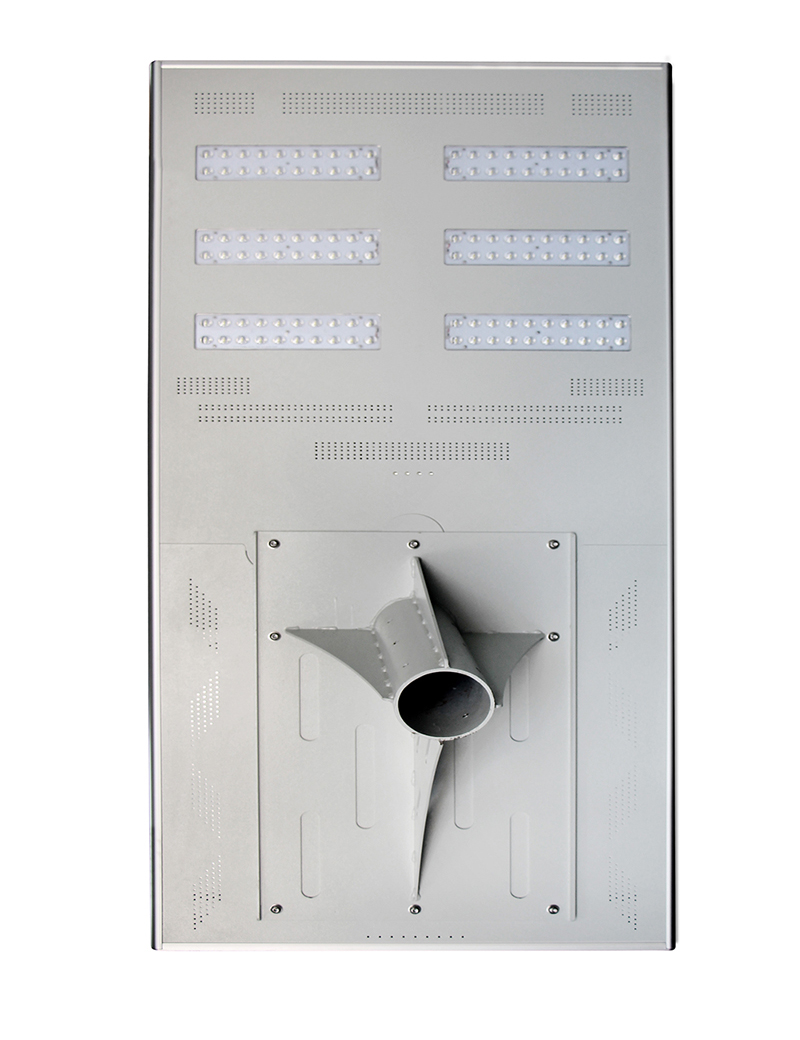

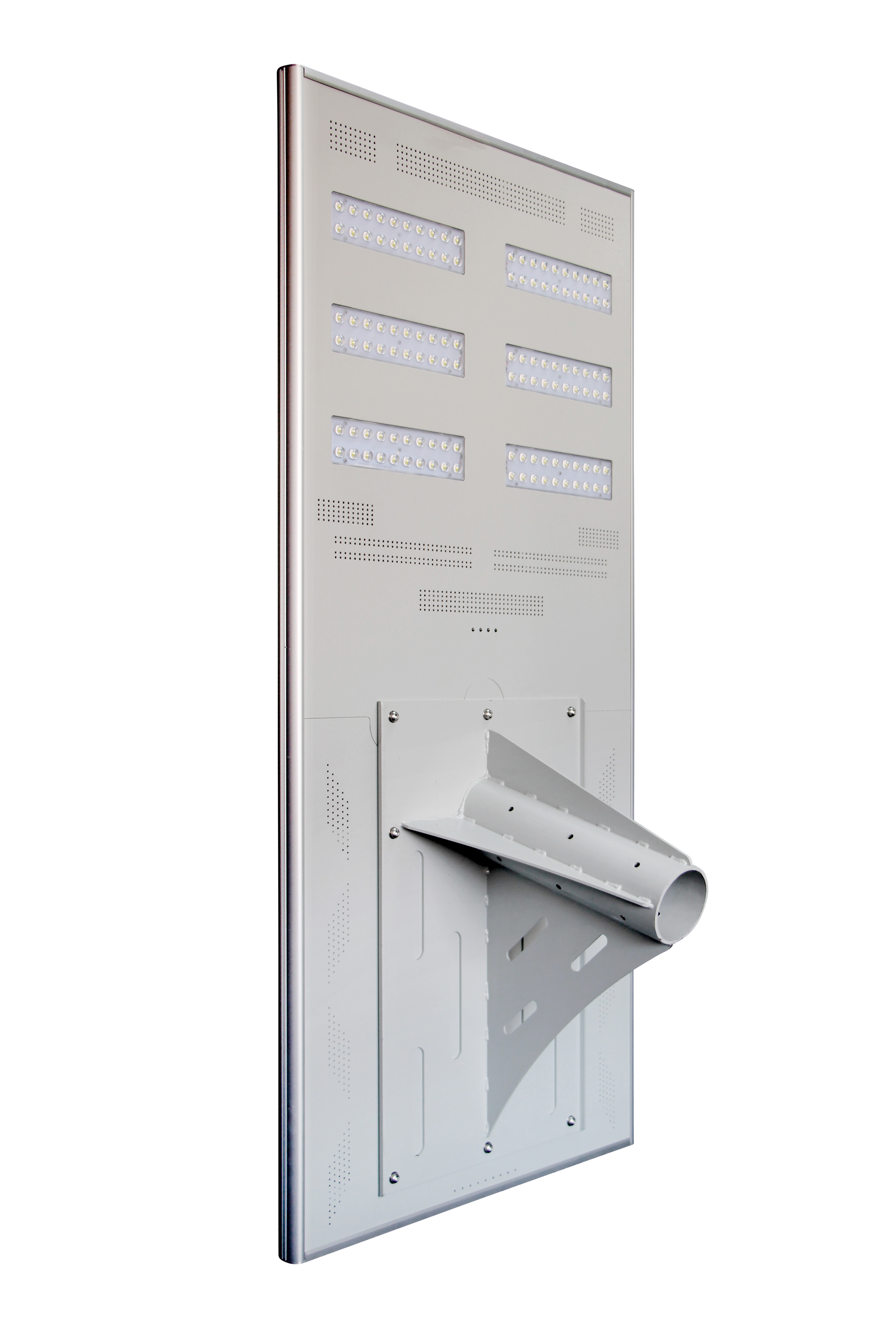

200w Integrated Solar LED Street Light

200W Solar LED Street Light
Features:
1.2023 Durapower patented solar street light, elegant appearance and adjustable molded design.
2.Using high brightness Bridgelux / Osram / Philips led chip up to 210lm/w, the whole light can be 42000Lumens
3. Big capacity and deep cycle lithium battery, more durable service life.
4. Top quality solar cells, smaller size but higher efficiency.
5.Remote Control, support 4-5 nights after full charging.
6.Easy to install and Auto on/off/sensor,140°wide lighting angle.

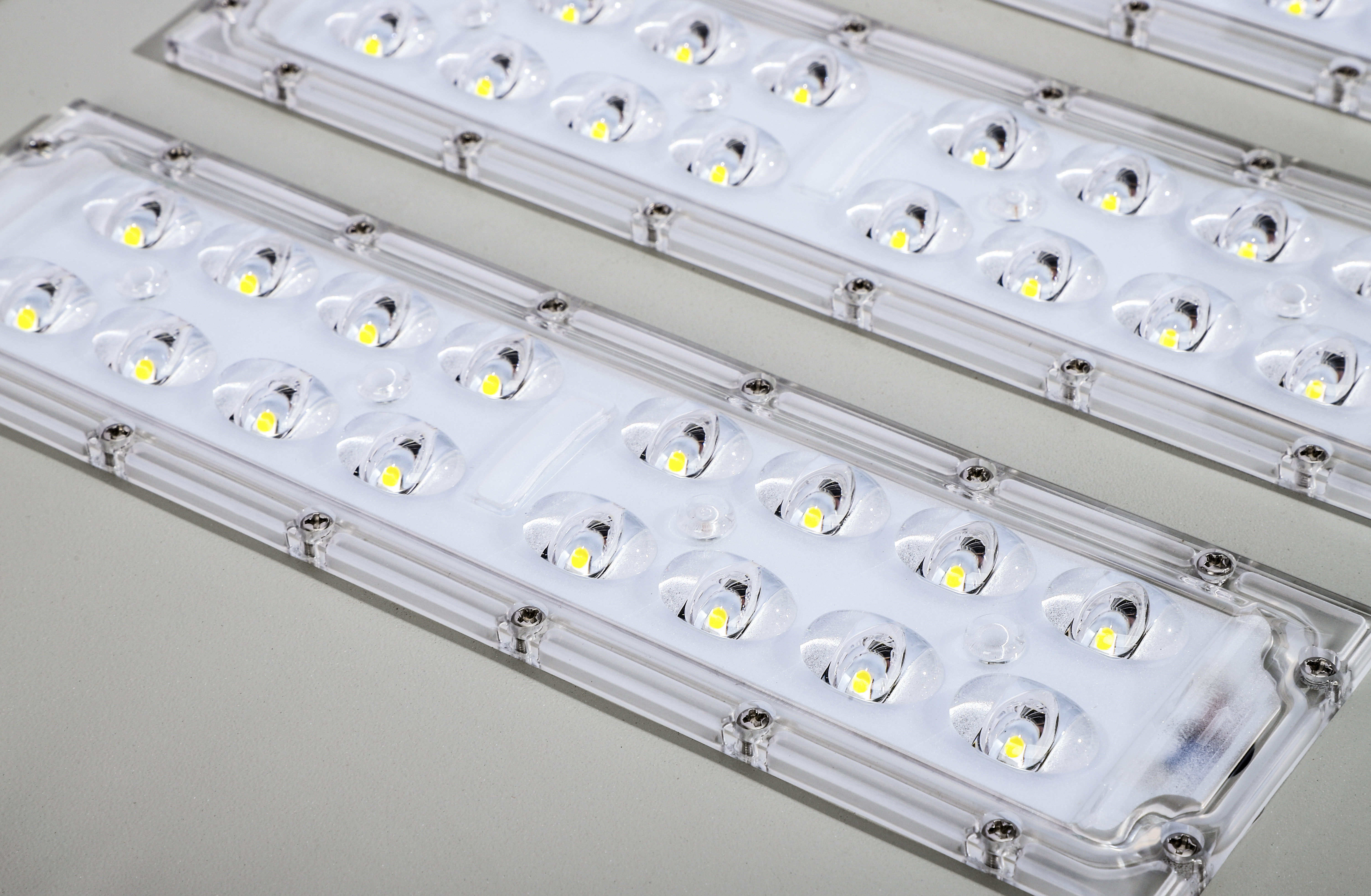

7.25 degree adjustable angle module design, various LED Modules are available.



FH Series is HeiSolar's flagship model, tailor made for government solar street lighting project.

'Fly Hawk' shape light body, 'All In One' Modern and elegent appearance.
Rotatable solar panel design (5 angle) to maximum efficiency of solar energy.

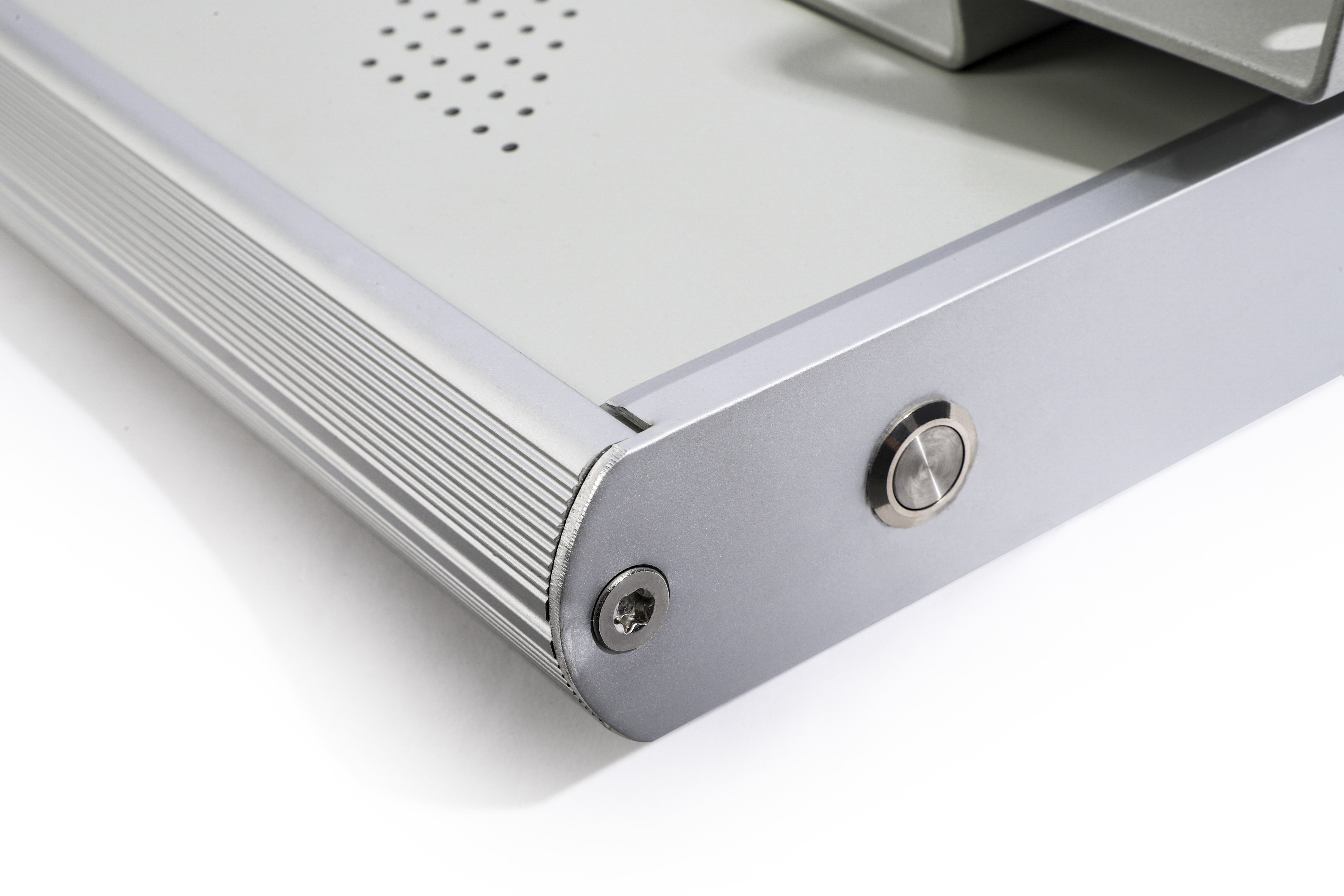

All die-casting aluminum light body zinc plated anti-rust corrosion.
Perfect modular structure design, no wiring, easily replace the battery and other parts.
100% powered by solar. Support Customized Hybrid Solar Street Light With Wind Turbine.
Product Feactures
Here are some advantageous features of our Solar LED Lighting Products, help you understand moreover of our solar lamps
Product Videos
Technical Resources Download
Declaration of Conformity 001.jpg
DP-SSL08.pdf
DP-SSL08.pdf
EMC.pdf
IEC60598-2-3-Durapower.pdf
LVD.pdf
RoHS.pdf
Solar LED street light -Catalogue.pdf

200W Solar LED Street Light

Products Description

Shenzhen Durapower IntelligenceTechnology CO.,LTD. is a solar street light manufacturer in shenzhen

We are a solar street light manufacturer in shenzhen. OEM/ODM Integrated all in one solar street light and solar street light. We can produce 3different price light, because different type battery.

Bset and expensive one is 12.8v 26650 LiFePO4 battery, good for hot weather,3000cycle.
secend one is 12v 18650 Lithium battery,good for cold weather.1000cycle.
Last one is 3.2v 32650 LiFePO4 battery, that type of batteries are very cheap but not bright.

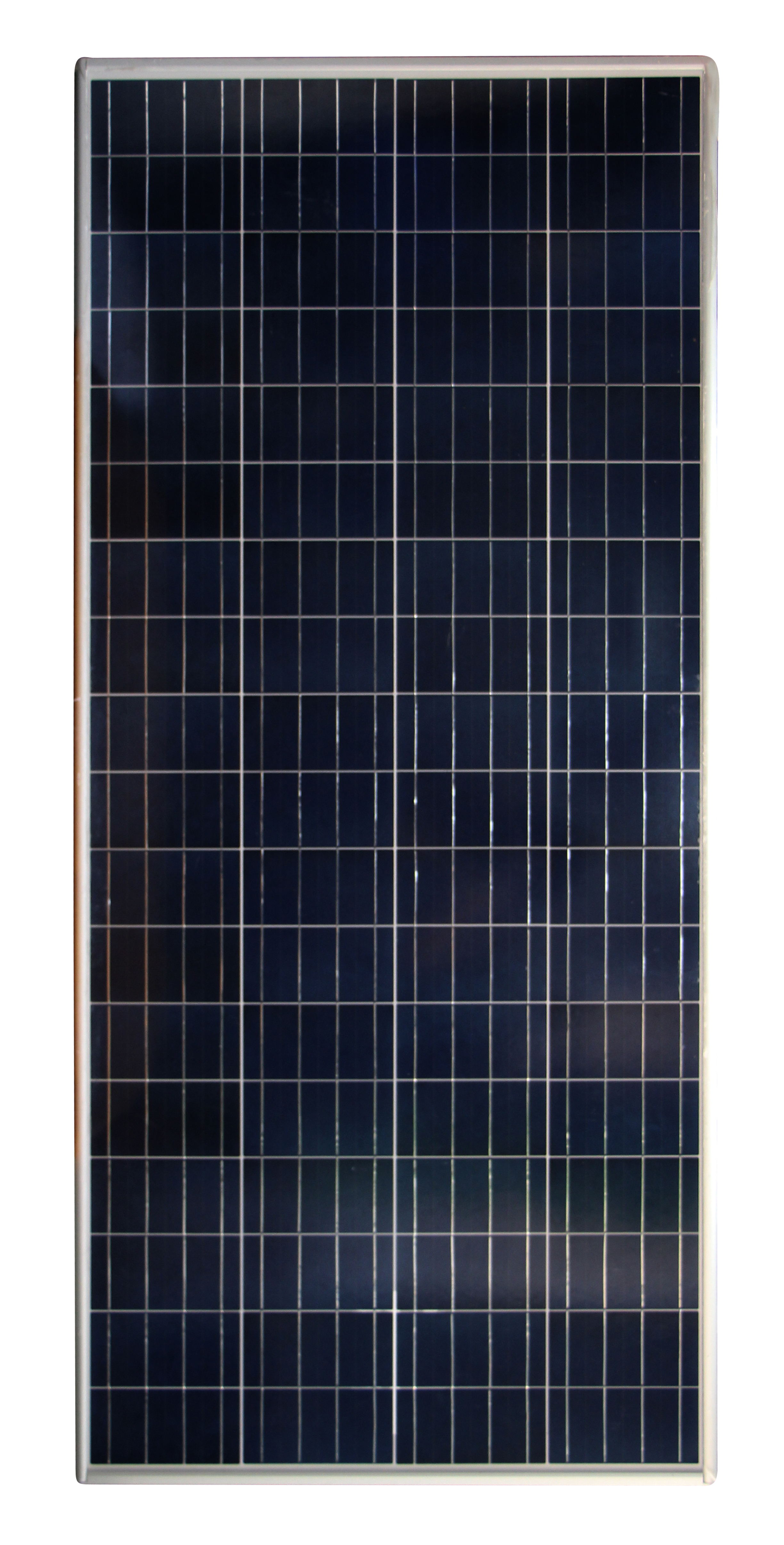

Solar Panel
Max Power
36v 200W ( monocrystalline silicon)
Life time
25 years
LED Lamp with sensor
battery Type
Li-Fe PO4 battery
Life time
3 years
Max power
200w
Led chip brand
Brigdelux SMD 3030LED Chip with high brightness
Lumen (LM)
210 lm/w
Life Time
100000 hours
Viewing Angle
140º
Charge time
By Sun
5-6hours (with enough strong shine)
Discharge time
Full power
more 12 hours
Saving mode
more 24 hours
Working temperature
Range(ºC)
-30ºC ~ +60ºC
Colour temperature
Range (k)
6000k
Mounting height
Range (m)
8-12 m
Space between light
Range (m)
25-30m
Lamps material of main
Aluminium alloy
Certificate
CE / ROHS
Warranty Period
3years
Packing & Weight
Product size
1950*385*55mm(lamp)585*125*320mm(bracket)
Product weight
21kg
Packing size
2020*120*460MM(lamp)610*140*340MM(bracket)
Q’ty/ctn
1 sets / ctn
GW for carton
22.5kg
Packs Containers
20 GP
300sets
40 GP
600sets

240W正面


120WD1-1


120WD2

120WD1

Our Advantages
1) Factory direct competitive prices;
2) Own R&D department for the drivers and whole products to ensure high quality;
3) Most products with TUV GS, SAA, ETL,cETL,UL,cUL. DLC, ES certificates;
4) with ISO9001 quality control system;
5) Long working lifespan: 45000h~50000h & 5 years' warranty;
6) Die-casting alumunum for better heat dissipation;

7) Own RoHS instrument to check raw marterials

1256

Ctrl+D灯杆240W

20160524105957

3358

Q1:How can I place an order?

A:a)You can use alibaba platform to Draft Trade Assurance Order, Or please tell us the consignee information-address,telephone, we can also draft trade assurance order for you.

b)When you confirm to buy from us, please tell us, the proforma invoice with our bank information could be sent to you for payment.


Q2:What kind of certificate you have?

A:We have ISO, ROHS, CE, IP65, IEC, as well as national patent.


Q3:You are factory or trading company?

A:We are a professional lighting company that is mainly engaged in product research and development, production, sales and service with our own factory.



Q4:What's the payment term?

A:We accept TT, Western Union, MoneyGram.


Q5:What’s the sample time and lead time for mass productions?

A:Normally, sample time is about 3-7 days after receiving your details. Lead time for mass productions is about 10 days.


Q6:Tell us the standard of package?

A:We usually use carton box, flight case, carton with wooden frame is also ok if required.


Q7:How about your monthly capacity?

A:It depends on which model .For example, solar light , monthly capacity can reach near 5000sets and big capacity near 20000sets solar street lights.


Q8:Where is your major market?

A:Our products are popular in European countries, America area, Asia, such as Germany, France, UK, Italy, united states, Mexico, Brazil, Egypt, Japan, and so on. Some of them are our regular clients and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.



  • Product Description

    200W Solar LED Street Light

    Products Description

    Shenzhen Durapower IntelligenceTechnology CO.,LTD. is a solar street light manufacturer in shenzhen

    We are a solar street light manufacturer in shenzhen. OEM/ODM Integrated all in one solar street light and solar street light. We can produce 3different price light, because different type battery.

    Bset and expensive one is 12.8v 26650 LiFePO4 battery, good for hot weather,3000cycle.
    secend one is 12v 18650 Lithium battery,good for cold weather.1000cycle.
    Last one is 3.2v 32650 LiFePO4 battery, that type of batteries are very cheap but not bright.


    Solar Panel
    Max Power
    36v 200W ( monocrystalline silicon)
    Life time
    25 years
    LED Lamp with sensor
    battery Type
    Li-Fe PO4 battery
    Life time
    3 years
    Max power
    200w
    Led chip brand
    Brigdelux SMD 3030LED Chip with high brightness
    Lumen (LM)
    210 lm/w
    Life Time
    100000 hours
    Viewing Angle
    140º
    Charge time
    By Sun
    5-6hours (with enough strong shine)
    Discharge time
    Full power
    more 12 hours
    Saving mode
    more 24 hours
    Working temperature
    Range(ºC)
    -30ºC ~ +60ºC
    Colour temperature
    Range (k)
    6000k
    Mounting height
    Range (m)
    8-12 m
    Space between light
    Range (m)
    25-30m
    Lamps material of main
    Aluminium alloy
    Certificate
    CE / ROHS
    Warranty Period
    3years
    Packing & Weight
    Product size
    1950*385*55mm(lamp)585*125*320mm(bracket)
    Product weight
    21kg
    Packing size
    2020*120*460MM(lamp)610*140*340MM(bracket)
    Q’ty/ctn
    1 sets / ctn
    GW for carton
    22.5kg
    Packs Containers
    20 GP
    300sets
    40 GP
    600sets

    240W正面


    120WD1-1


    120WD2

    120WD1

    Our Advantages
    1) Factory direct competitive prices;
    2) Own R&D department for the drivers and whole products to ensure high quality;
    3) Most products with TUV GS, SAA, ETL,cETL,UL,cUL. DLC, ES certificates;
    4) with ISO9001 quality control system;
    5) Long working lifespan: 45000h~50000h & 5 years' warranty;
    6) Die-casting alumunum for better heat dissipation;

    7) Own RoHS instrument to check raw marterials

    1256

    Ctrl+D灯杆240W

    20160524105957

    3358

    Q1:How can I place an order?

    A:a)You can use alibaba platform to Draft Trade Assurance Order, Or please tell us the consignee information-address,telephone, we can also draft trade assurance order for you.

    b)When you confirm to buy from us, please tell us, the proforma invoice with our bank information could be sent to you for payment.


    Q2:What kind of certificate you have?

    A:We have ISO, ROHS, CE, IP65, IEC, as well as national patent.


    Q3:You are factory or trading company?

    A:We are a professional lighting company that is mainly engaged in product research and development, production, sales and service with our own factory.



    Q4:What's the payment term?

    A:We accept TT, Western Union, MoneyGram.


    Q5:What’s the sample time and lead time for mass productions?

    A:Normally, sample time is about 3-7 days after receiving your details. Lead time for mass productions is about 10 days.


    Q6:Tell us the standard of package?

    A:We usually use carton box, flight case, carton with wooden frame is also ok if required.


    Q7:How about your monthly capacity?

    A:It depends on which model .For example, solar light , monthly capacity can reach near 5000sets and big capacity near 20000sets solar street lights.


    Q8:Where is your major market?

    A:Our products are popular in European countries, America area, Asia, such as Germany, France, UK, Italy, united states, Mexico, Brazil, Egypt, Japan, and so on. Some of them are our regular clients and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.



Easy to installation in 5 mins.

Each light in a commercial system is independent of each other and doesn't need main power grid connectivity. No digging, no wiring, simply install and let the sun do the work!

1. Install bracket support

Fix the multi-angel brackrt buckles on the solar panel with 6pcs M6x20 screws. Be sure 'up' towards to led light.


2. Rotating Platform

Use 6pcs M6x12 screws to fix the 360° rotating platform,according to the orientarion of the road.



3. Combination

Use 2pcs M8x30 screws and 1set M8x100 screw to fix the multi-angle brackrt buckles. Choose the right holes according to the installation position of the sun at 2:00pm.

4. Install light

Fix the light fixture to the pole with 8pcs M10x25 screws.





Check out Project Gallery

Enjoying our commercial solar street lighting project case from all over the world
