Fly Hawk Series All In One Smart Solar Street Lights

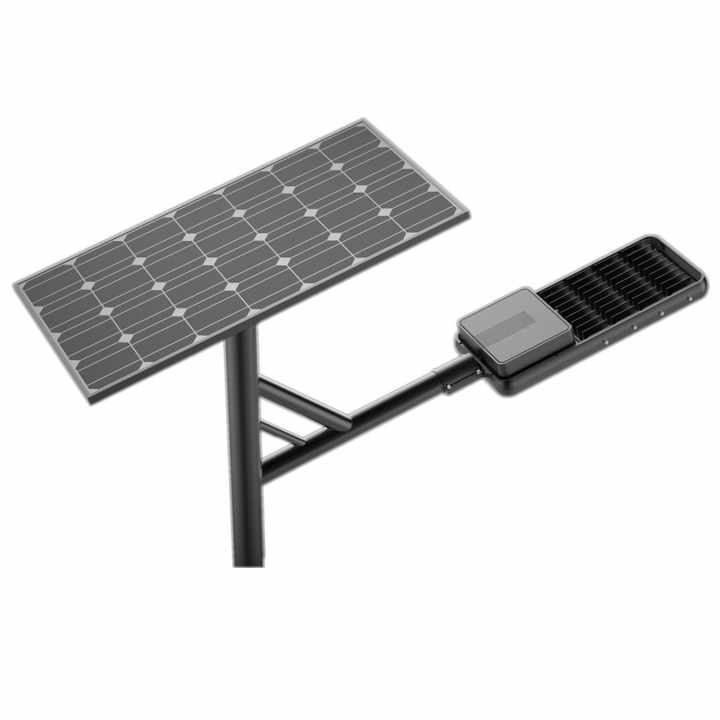

Patent Separated 170lm/w 80W led solar street light

80W solar led street light Feature:
1.Whole lamp adopt high-end aluminum alloy material.
2.LED module adjustable angle,suitable for different terrain roads.
3.Super-big battery box,the battery inside led lamp.
4.View angle is 140°,lighting more area.
5.Very easy install,maintaince,disassembly takes only three minutes,auto on/off.
6.With remote control,use UAV technology,can penetrate walls, remote control distance up to 30 meters.

FH Series is HeiSolar's flagship model, tailor made for government solar street lighting project.

'Fly Hawk' shape light body, 'All In One' Modern and elegent appearance.
Rotatable solar panel design (5 angle) to maximum efficiency of solar energy.
All die-casting aluminum light body zinc plated anti-rust corrosion.
Perfect modular structure design, no wiring, easily replace the battery and other parts.
100% powered by solar. Support Customized Hybrid Solar Street Light With Wind Turbine.
Product Feactures
Here are some advantageous features of our Solar LED Lighting Products, help you understand moreover of our solar lamps
Product Videos
Technical Resources Download
Declaration of Conformity 001.jpg
DP-SSL08.pdf
DP-SSL08.pdf
EMC.pdf
IEC60598-2-3-Durapower.pdf
LVD.pdf
RoHS.pdf
Solar LED street light -Catalogue.pdf

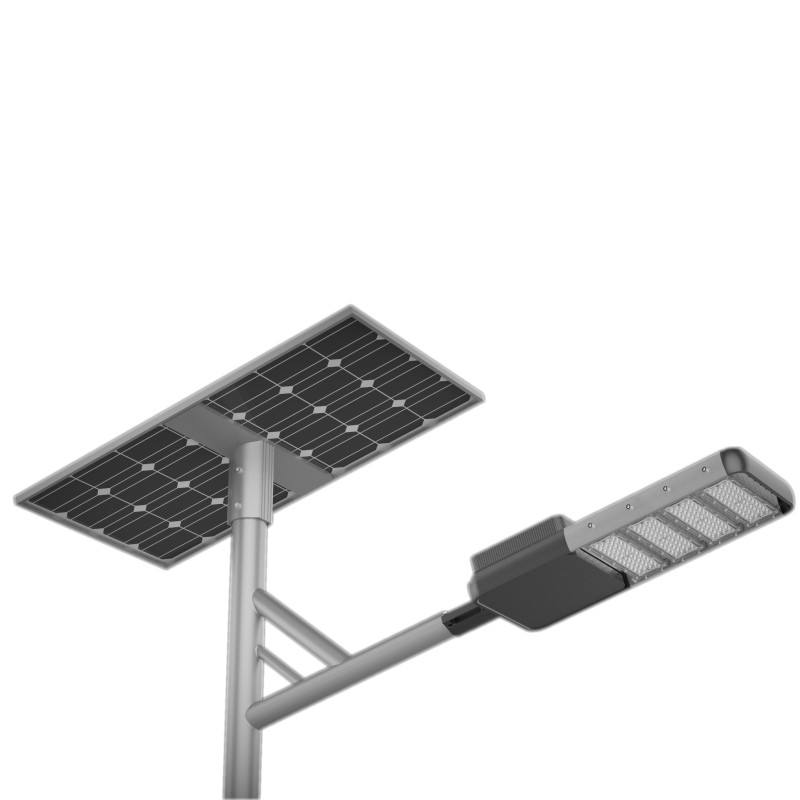

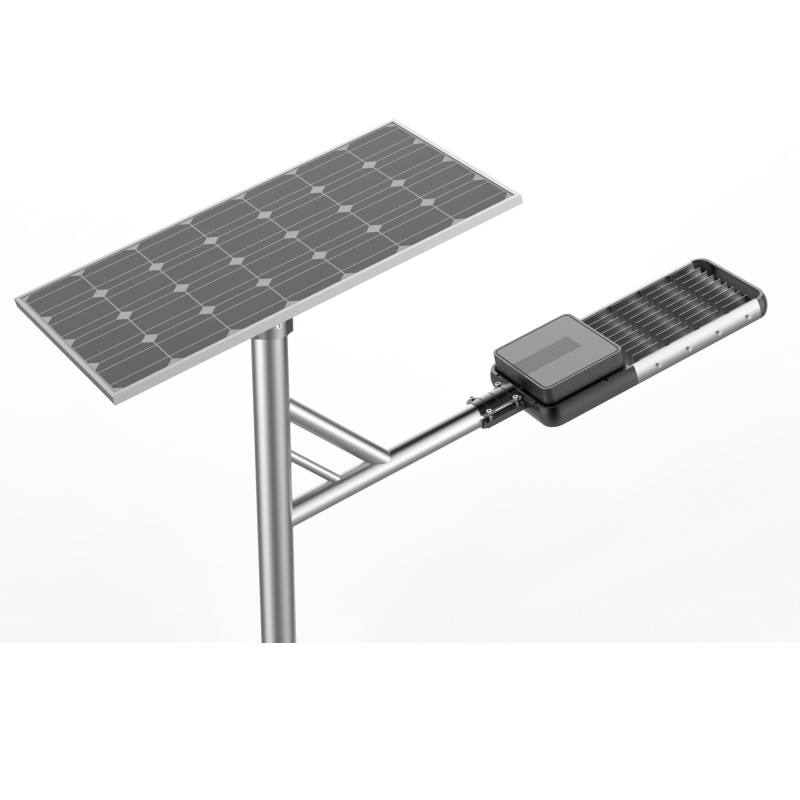

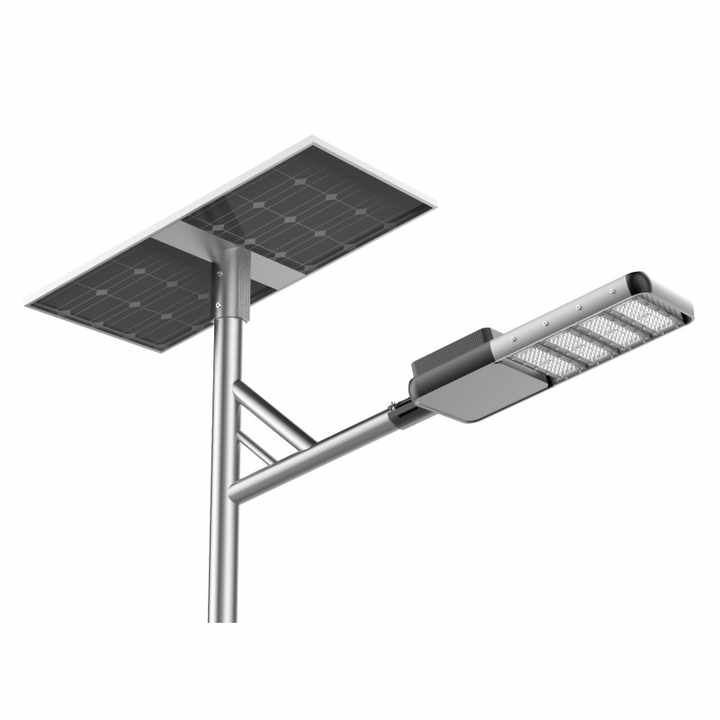

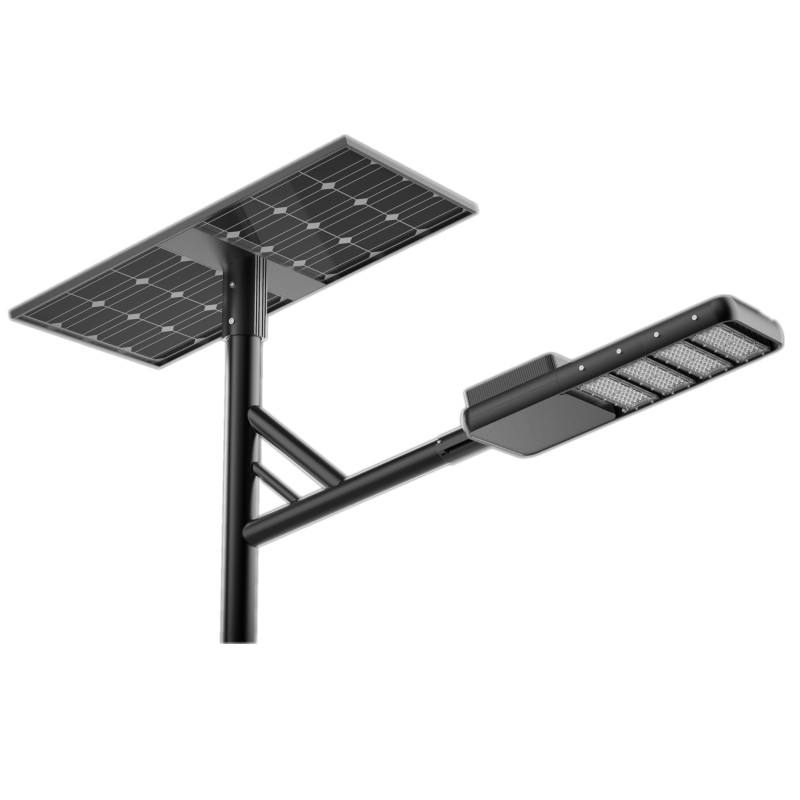

Patent Separated 170lm/w 80W led solar street light

Product Description

80W led street light solar street lighting

LifePO4 Battery 48AH 12.8V
Solar Panel 18V 120W Imported High Efficiency Monocrystalline Silicon
Install Pole diameter 60-65mm
Mounting Height 8~10m (Suggest install between space10-20m)
Solar Charging Time 5-6 hurs by bright sunlight
Cloudy/Rainy days 5 -7Cloudy/Rainy days
Material High Class Aluminum
Product Size  755*280*100mm
LED Lamp 192PCS
Motion sensor No(customize is available)
Remote Control Yes(1pc remote control per lot)
Waterproof IP65
Working Tempreture -25℃ to 65℃
Certificates CE,ROHS,IP65
Warranty 3Years

80W solar led street light Feature:

1.Whole lamp adopt high-end aluminum alloy material.

2.LED module adjustable angle,suitable for different terrain roads.

3.Super-big battery box,the battery inside led lamp.

4.View angle is 140°,lighting more area.

5.Very easy install,maintaince,disassembly takes only three minutes,auto on/off.

6.With remote control,use UAV technology,can penetrate walls, remote control distance up to 30 meters.


80W solar led street light Lighting Mode :

3hrs 100% brightness+2hrs 80% brightness+7 hrs 25% brightness


80W solar led street light Packing:

LED Lamp Packing Size:785*300*115MM

Q'ty/ctn:1Set

G.W:7.5KG

Solar Panel Packing Size:1290*580*80MM

Q'ty/ctn:1Set

G.W:11KG

Packs Containers:

20GP:320Sets

40GP:655Sets

40HP:780Sets

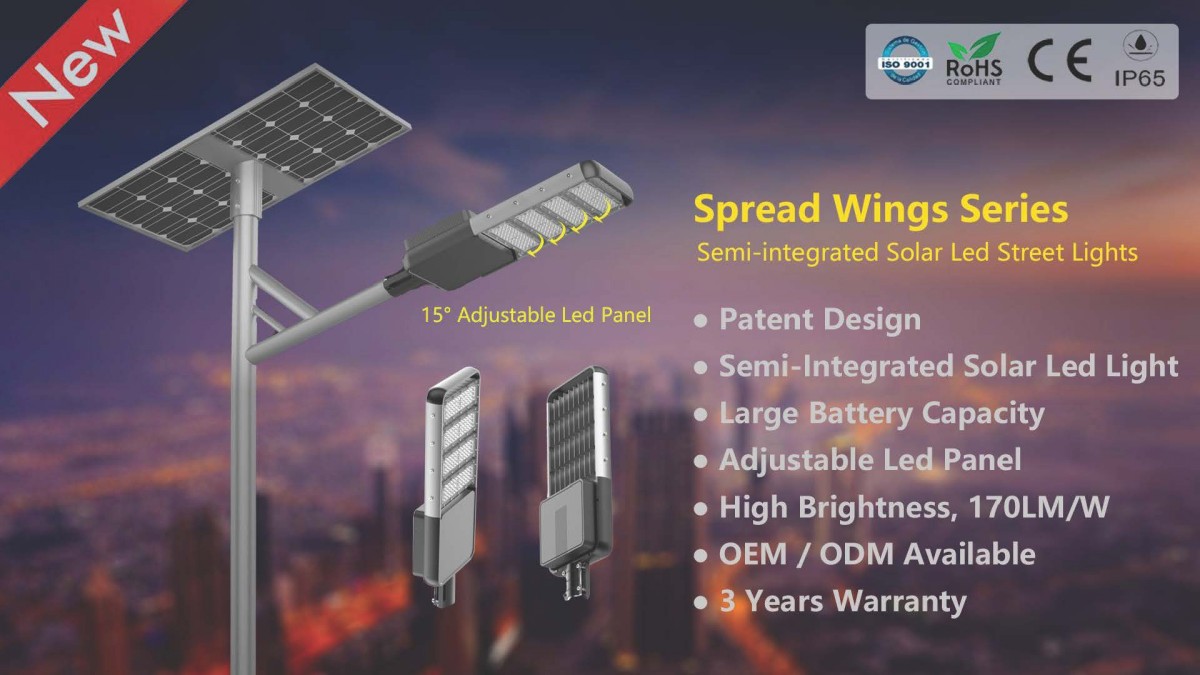

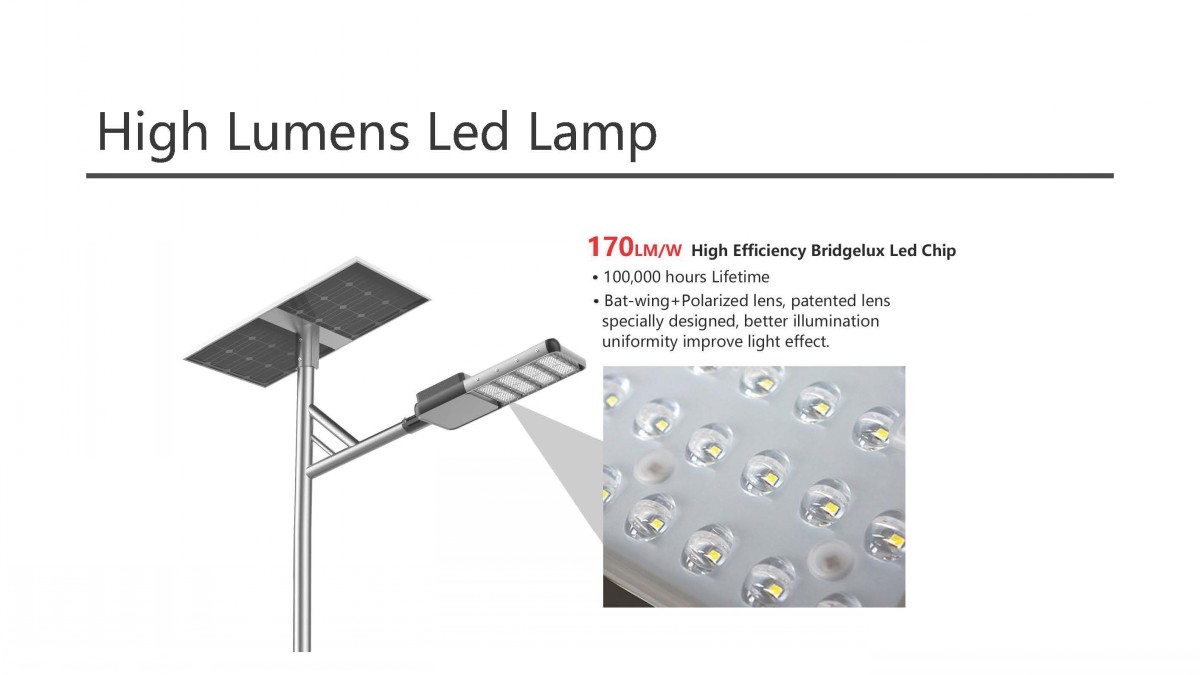

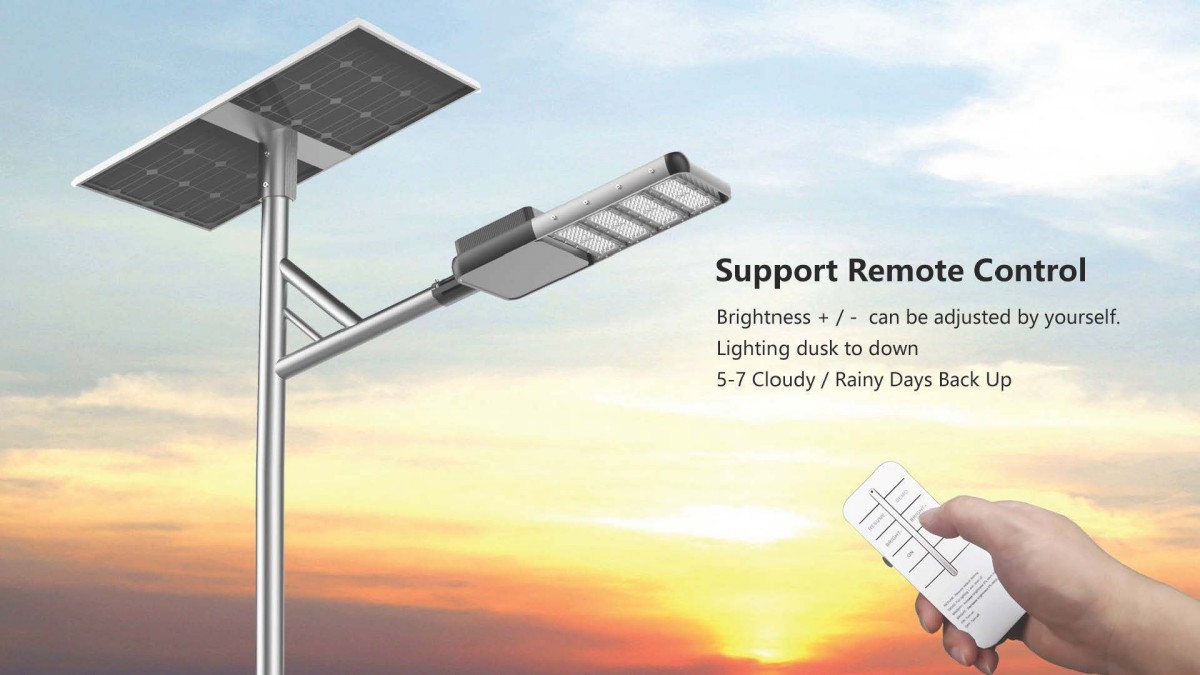

New Patent Separated 170lm/w 80W led street light solar street lighting led luminaires


Hot selling SOLAR STREET LIGHT 20W-200W avaliable Orignal from Durapower


All in One / Integrated LED Solar Street Light with 360 adjustable solar panel.


The fourth generation of sensing technology -----Microwave Sensor Intelligent Adjustable Brightness, more energy-saving, more humanize.


Using LiFePO4 Lithium Battery----5-8 years lifespan.


Using American Bridgelux or Cree Outdoor LED chip with high lumen----lighting area is expanded by 40%, lighting uniformity increase of 200%


All die-casting alumiunm light body ---patent 'Batwing' style design.


New products outdoor all in one solar led street light, aluminum street led lamp, solar fly leaf light made in China. 3-5 years warranty.

New Patent Separated 170lm/w 80W led street light solar street lighting led luminaires

New Patent Separated 170lm/w 80W led street light solar street lighting led luminaires



B1


Product Features:

1. More than 2000 deep cycles 100% Brand New A grade LifePO4 battery, 8-10 years lifespan.

2. Support more than 5-7 rainy days with the inteligent charge controller.

3. Specific design for high way and government project,install heght up to 10M.

4. Adjustable brackets, support 2 different install ways,lighting angle up to 140° .

5. Customized microwave sensor, sensing distance reach to 12M.

6. All in two design with patent,Aluminum alloy case, waterproof IP65.

7. Turn on at dusk and tun off at dawn automatically.

8. Remote control the lighting mode, ODM is available.

0817

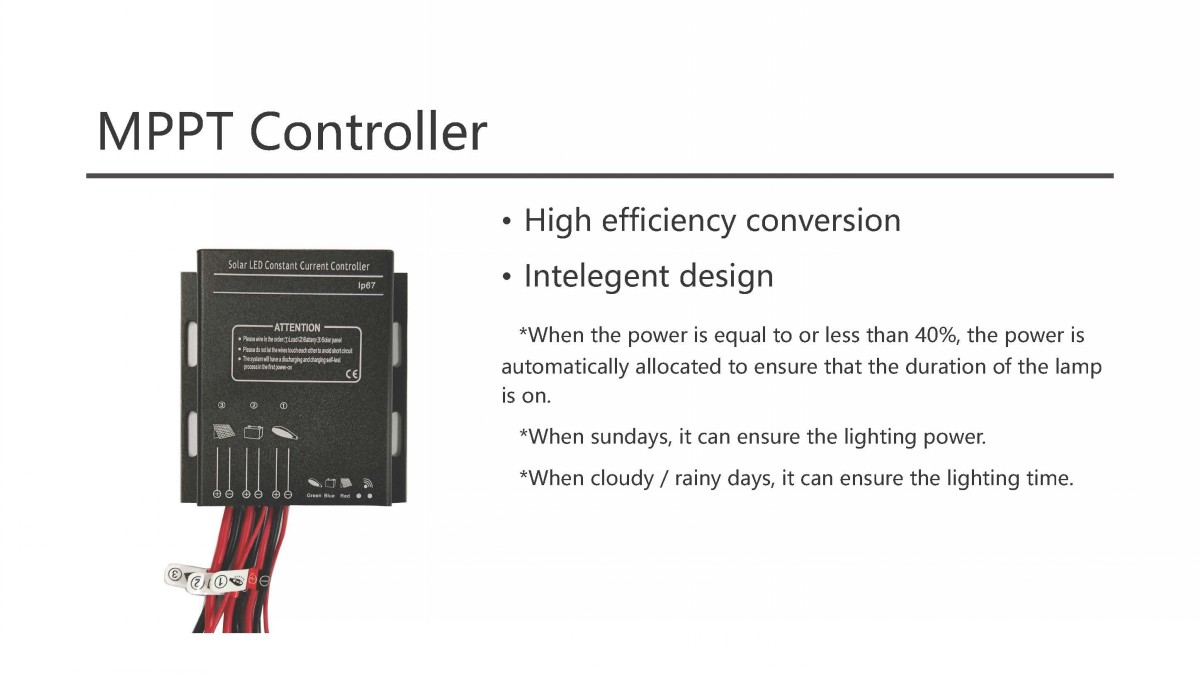

all in two solar light 170lm/w 120W led street light lighting led luminaires africa solar lamp luminarias solares

Solar Panel Bracket

Advantages of integrated solar street light:


1. Integrated design,Installation is simple, Convenient transportation, Save costs.


2. Service life of more than 3-5 years, Africa, South America of lifespan up to 10 years.


3.Stable quality, burn-in tests with 100% full load for more than 4 hours.


4. Protections: With overcharge, overdischarge, light control, time control, anti-reverse connection, undervoltage, waterproof protection


5.Products through CE / ROHS /  IP65 / IEC ISO9001:2015 certificates.


3. HOW TO INSTALL A WARM WHITE SOLAR STREET LIGHT

  • Note: If the solar street light is without a solar panel

bracket, please prepare it by yourself before installing it.

solar light street light


Attention:

1. Please Charge All Models of light (without discharge at night) for 3 days before installing;

2. Please notice to install the light to the place without any shade and

better face to the south to get good sunlight for charging.

3. Please remove the plastic isolation film on the transparent lampshade if any before using;

4. Keep the device away from fire, water, and moist places in order to avoid explosion, leakage, and moisture;

5. Any severe shock or smash to the light is not recommended;

6. No one expects a professional technician should attempt to disassemble the light in order to avoid damaging the light.

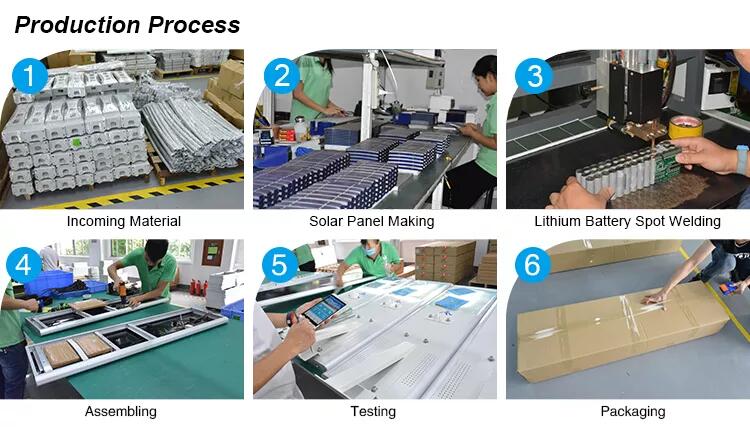

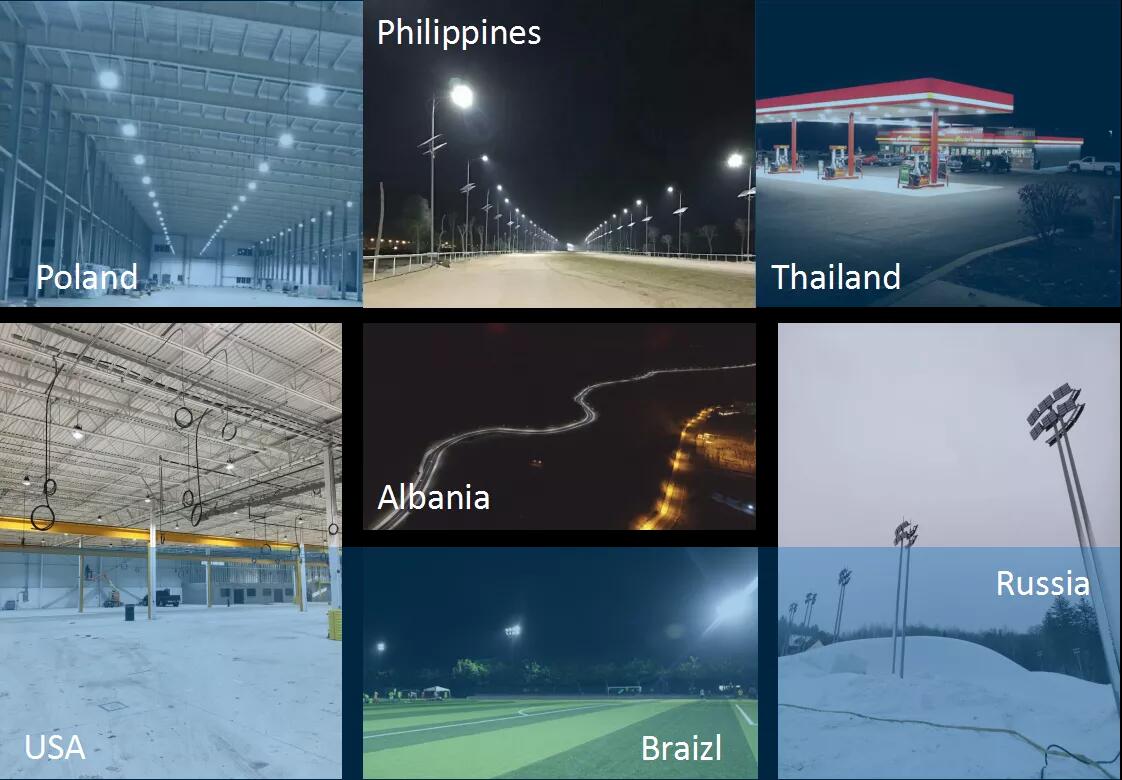

025203501628


FAQ

Q1:Why choose Durapower integrated all in one solar led street lights?

A:1)We are developping at the fastest speed in ShenZhen in solar lighting field.

2)More than 9 years experience in LED lighting and we only offer top quality LED lights.

3)Well equipped with complete facilities and workers with rich experience to ensure short delivery time.

4)We have strict quality control team and excellent pre-sales,sales & after sales service.

5)We can offer good discount price for your bulk orders.


Q2:How many years for warranty?

A:Our warranty is 3 years and 5 years.

And any quality problem occurred within warranty period,we will send new part for replacement for free.


Q3:What's the colour temperature can you offer?

A:Usually the colour temperature is 6000-7000K, other range colour temperature we can offer,including RGB.


Q4:How to do in rainy days,cloudy days or cloudy days?

A:Our solar integrated led street light is waterproof. You don't need to worry about it. After fully charged, the capacity of battery can keep the lights working for 3-7 raniy/couldy/snowy days.


Q5:How to send the solar led street lights to our country?

A:Usually sample order ship by express or by air to your door,it takes 3-6 days;big orders by sea,it takes 15-35days(depending on your location)







  • Product Description

    Patent Separated 170lm/w 80W led solar street light

    Product Description

    80W led street light solar street lighting

    LifePO4 Battery 48AH 12.8V
    Solar Panel 18V 120W Imported High Efficiency Monocrystalline Silicon
    Install Pole diameter 60-65mm
    Mounting Height 8~10m (Suggest install between space10-20m)
    Solar Charging Time 5-6 hurs by bright sunlight
    Cloudy/Rainy days 5 -7Cloudy/Rainy days
    Material High Class Aluminum
    Product Size  755*280*100mm
    LED Lamp 192PCS
    Motion sensor No(customize is available)
    Remote Control Yes(1pc remote control per lot)
    Waterproof IP65
    Working Tempreture -25℃ to 65℃
    Certificates CE,ROHS,IP65
    Warranty 3Years

    80W solar led street light Feature:

    1.Whole lamp adopt high-end aluminum alloy material.

    2.LED module adjustable angle,suitable for different terrain roads.

    3.Super-big battery box,the battery inside led lamp.

    4.View angle is 140°,lighting more area.

    5.Very easy install,maintaince,disassembly takes only three minutes,auto on/off.

    6.With remote control,use UAV technology,can penetrate walls, remote control distance up to 30 meters.


    80W solar led street light Lighting Mode :

    3hrs 100% brightness+2hrs 80% brightness+7 hrs 25% brightness


    80W solar led street light Packing:

    LED Lamp Packing Size:785*300*115MM

    Q'ty/ctn:1Set

    G.W:7.5KG

    Solar Panel Packing Size:1290*580*80MM

    Q'ty/ctn:1Set

    G.W:11KG

    Packs Containers:

    20GP:320Sets

    40GP:655Sets

    40HP:780Sets

    New Patent Separated 170lm/w 80W led street light solar street lighting led luminaires


    Hot selling SOLAR STREET LIGHT 20W-200W avaliable Orignal from Durapower


    All in One / Integrated LED Solar Street Light with 360 adjustable solar panel.


    The fourth generation of sensing technology -----Microwave Sensor Intelligent Adjustable Brightness, more energy-saving, more humanize.


    Using LiFePO4 Lithium Battery----5-8 years lifespan.


    Using American Bridgelux or Cree Outdoor LED chip with high lumen----lighting area is expanded by 40%, lighting uniformity increase of 200%


    All die-casting alumiunm light body ---patent 'Batwing' style design.


    New products outdoor all in one solar led street light, aluminum street led lamp, solar fly leaf light made in China. 3-5 years warranty.

    New Patent Separated 170lm/w 80W led street light solar street lighting led luminaires

    New Patent Separated 170lm/w 80W led street light solar street lighting led luminaires



    B1


    Product Features:

    1. More than 2000 deep cycles 100% Brand New A grade LifePO4 battery, 8-10 years lifespan.

    2. Support more than 5-7 rainy days with the inteligent charge controller.

    3. Specific design for high way and government project,install heght up to 10M.

    4. Adjustable brackets, support 2 different install ways,lighting angle up to 140° .

    5. Customized microwave sensor, sensing distance reach to 12M.

    6. All in two design with patent,Aluminum alloy case, waterproof IP65.

    7. Turn on at dusk and tun off at dawn automatically.

    8. Remote control the lighting mode, ODM is available.

    0817

    all in two solar light 170lm/w 120W led street light lighting led luminaires africa solar lamp luminarias solares

    Solar Panel Bracket

    Advantages of integrated solar street light:


    1. Integrated design,Installation is simple, Convenient transportation, Save costs.


    2. Service life of more than 3-5 years, Africa, South America of lifespan up to 10 years.


    3.Stable quality, burn-in tests with 100% full load for more than 4 hours.


    4. Protections: With overcharge, overdischarge, light control, time control, anti-reverse connection, undervoltage, waterproof protection


    5.Products through CE / ROHS /  IP65 / IEC ISO9001:2015 certificates.


    3. HOW TO INSTALL A WARM WHITE SOLAR STREET LIGHT

    • Note: If the solar street light is without a solar panel

    bracket, please prepare it by yourself before installing it.

    solar light street light


    Attention:

    1. Please Charge All Models of light (without discharge at night) for 3 days before installing;

    2. Please notice to install the light to the place without any shade and

    better face to the south to get good sunlight for charging.

    3. Please remove the plastic isolation film on the transparent lampshade if any before using;

    4. Keep the device away from fire, water, and moist places in order to avoid explosion, leakage, and moisture;

    5. Any severe shock or smash to the light is not recommended;

    6. No one expects a professional technician should attempt to disassemble the light in order to avoid damaging the light.

    025203501628


    FAQ

    Q1:Why choose Durapower integrated all in one solar led street lights?

    A:1)We are developping at the fastest speed in ShenZhen in solar lighting field.

    2)More than 9 years experience in LED lighting and we only offer top quality LED lights.

    3)Well equipped with complete facilities and workers with rich experience to ensure short delivery time.

    4)We have strict quality control team and excellent pre-sales,sales & after sales service.

    5)We can offer good discount price for your bulk orders.


    Q2:How many years for warranty?

    A:Our warranty is 3 years and 5 years.

    And any quality problem occurred within warranty period,we will send new part for replacement for free.


    Q3:What's the colour temperature can you offer?

    A:Usually the colour temperature is 6000-7000K, other range colour temperature we can offer,including RGB.


    Q4:How to do in rainy days,cloudy days or cloudy days?

    A:Our solar integrated led street light is waterproof. You don't need to worry about it. After fully charged, the capacity of battery can keep the lights working for 3-7 raniy/couldy/snowy days.


    Q5:How to send the solar led street lights to our country?

    A:Usually sample order ship by express or by air to your door,it takes 3-6 days;big orders by sea,it takes 15-35days(depending on your location)







Easy to installation in 5 mins.

Each light in a commercial system is independent of each other and doesn't need main power grid connectivity. No digging, no wiring, simply install and let the sun do the work!

1. Install bracket support

Fix the multi-angel brackrt buckles on the solar panel with 6pcs M6x20 screws. Be sure 'up' towards to led light.


2. Rotating Platform

Use 6pcs M6x12 screws to fix the 360° rotating platform,according to the orientarion of the road.



3. Combination

Use 2pcs M8x30 screws and 1set M8x100 screw to fix the multi-angle brackrt buckles. Choose the right holes according to the installation position of the sun at 2:00pm.

4. Install light

Fix the light fixture to the pole with 8pcs M10x25 screws.





Check out Project Gallery

Enjoying our commercial solar street lighting project case from all over the world

Request A Free Quote

Any requests or question about product or others are welcome.

Add

2/F, Bldg B1, Xindabao Industrial Park, Sanlian Industrial Area. Shiyan Town, Bao'an Dist., Shenzhen, China.

Tel

+86-13691934113
Contact Us
  • 2/F, Bldg B1, Xindabao Industrial Park, Sanlian Industrial Area. Shiyan Town, Bao'an Dist., Shenzhen, China.
  • E-email us:
    info@duresolar.com
  • call us on:
    +86 755 33169402
    +86 755 21072927
