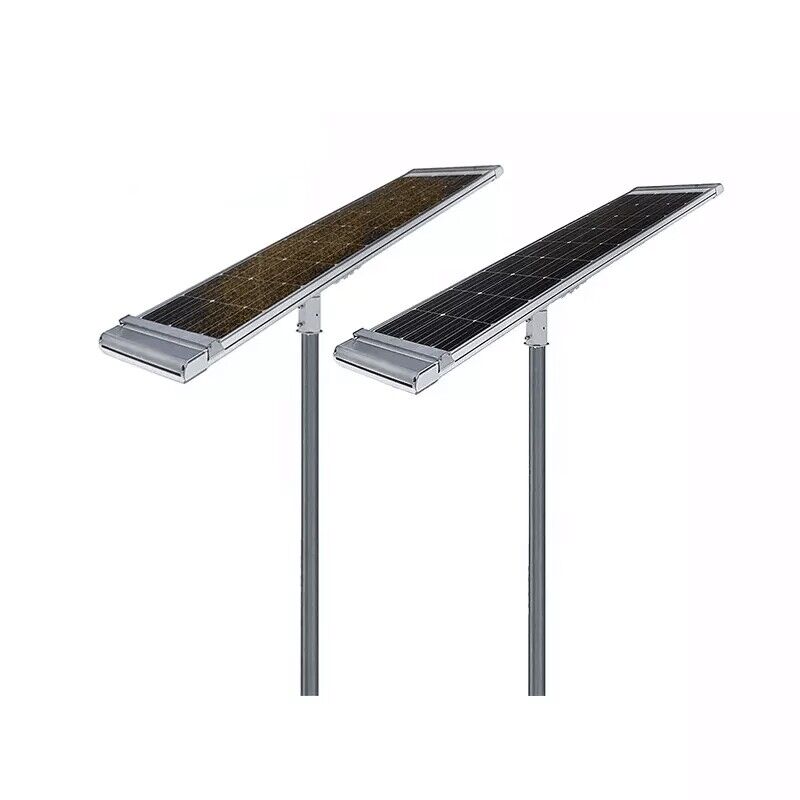

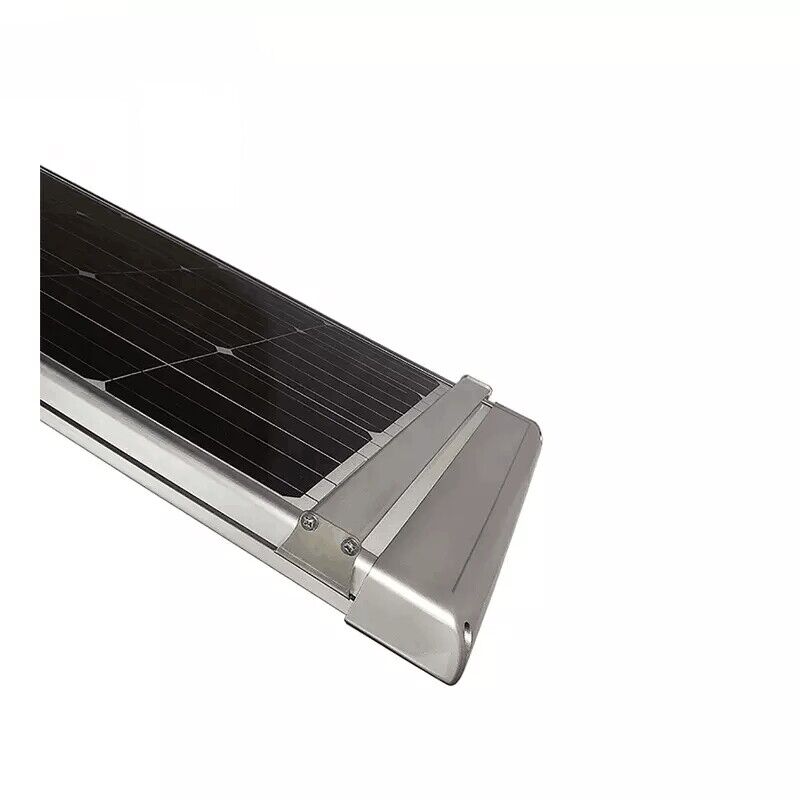

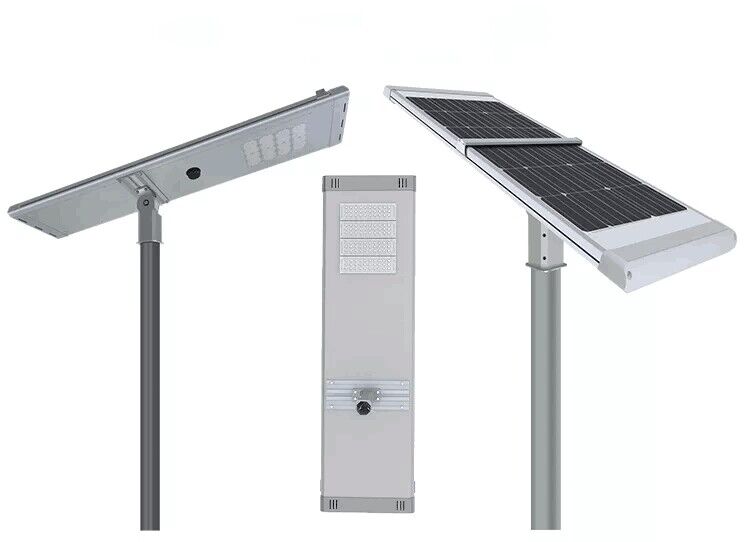

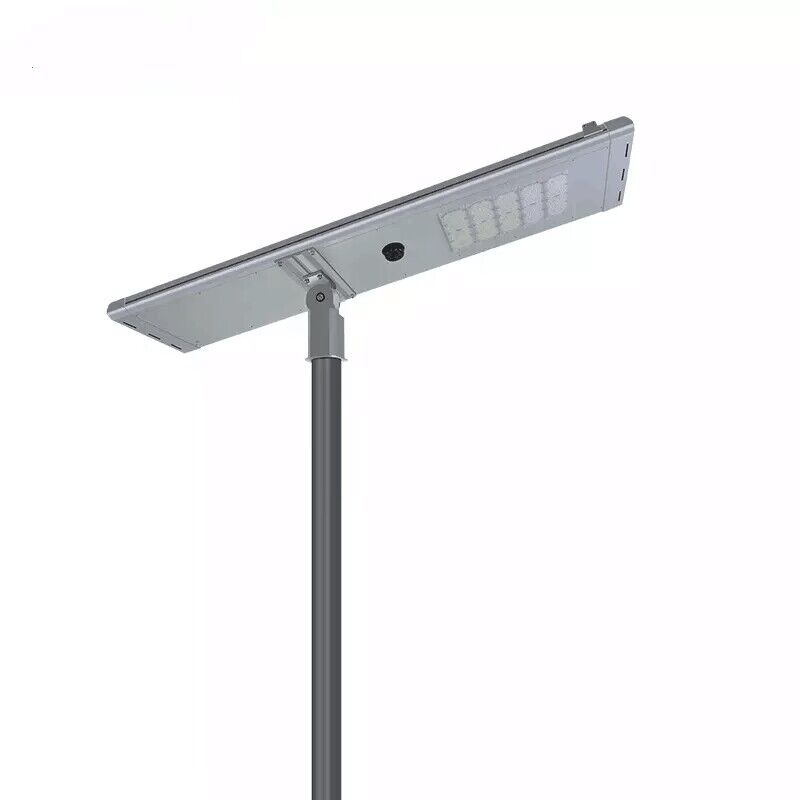

Fly Hawk Series All In One Smart Solar Street Lights

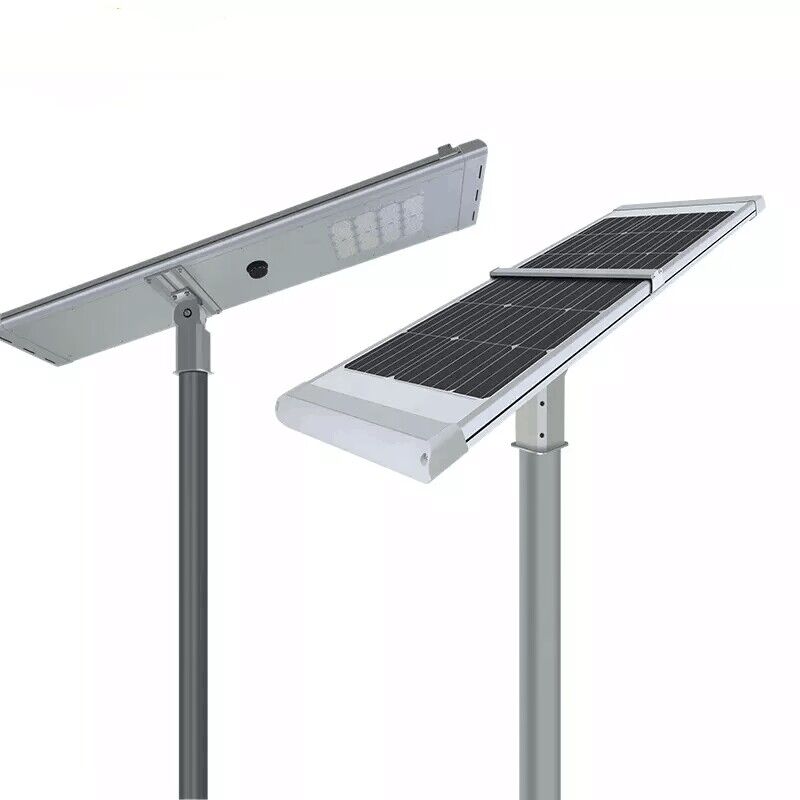

self cleaning solar street lights

Feature:
1.Automatic self cleaning solar street light, easy to install and maintaince
2.Adjustable angle LED module, suitable for different roads
3.140°wide lighting angle can light more area
4.Big battery box, build-in new LifePo4 battery, lifespan up to 8years
5.Adjust brightness via remote control

FH Series is HeiSolar's flagship model, tailor made for government solar street lighting project.

'Fly Hawk' shape light body, 'All In One' Modern and elegent appearance.

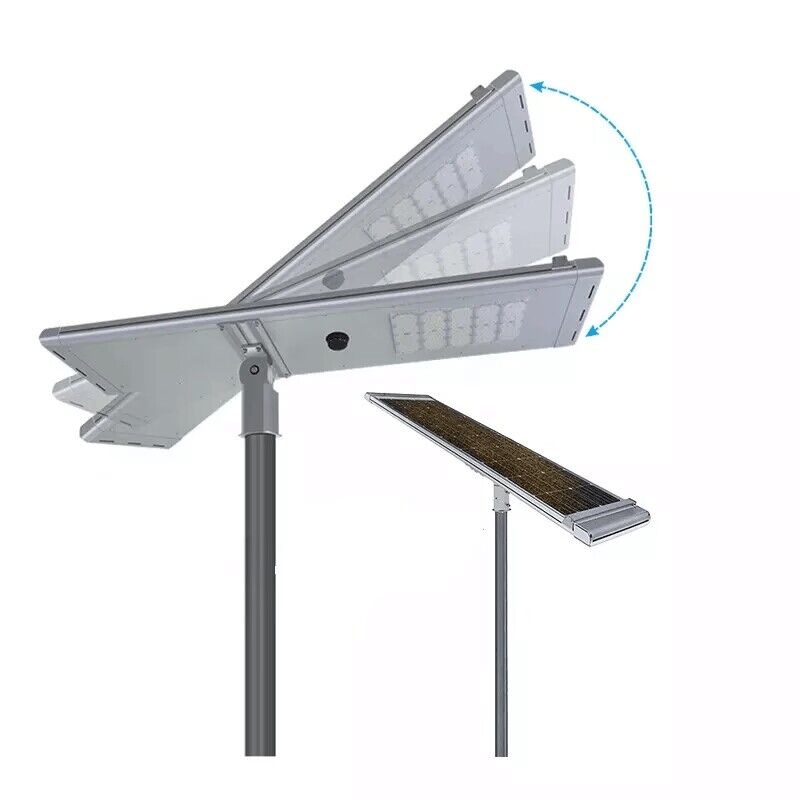

Rotatable solar panel design (5 angle) to maximum efficiency of solar energy.
All die-casting aluminum light body zinc plated anti-rust corrosion.
Perfect modular structure design, no wiring, easily replace the battery and other parts.
100% powered by solar. Support Customized Hybrid Solar Street Light With Wind Turbine.
Product Feactures
Here are some advantageous features of our Solar LED Lighting Products, help you understand moreover of our solar lamps
Product Videos
Technical Resources Download
Declaration of Conformity 001.jpg
DP-SSL08.pdf
DP-SSL08.pdf
EMC.pdf
IEC60598-2-3-Durapower.pdf
LVD.pdf
RoHS.pdf
Solar LED street light -Catalogue.pdf

Self Clean Solar Street Light


Quotation sheet of 120W All in one Solar Street Light
Model: DP-SSL80W-SC CRI >70Ra
Solar panel Max power: 18V130W (monocrtystalline silicon) Special Function Self Cleaning
Solar panel Life time: 25 years Lamps material of main: aluminium alloy
Battery Type: LiFePo4 battery 12.8V 66AH Certificate: CE / ROHS / IP65
LED Max power: 12.V 120W Warranty period: 3years
Led chip brand: 3030 LED chips with high brightness Mounting height(m): 10-12m
Lumen (LM): 150-160lm/w Space between light(m): 30-35m
LED Life time: 50000hours Inner box: /
Lighting Viewing Angle: 65°x 120°(bar wing street light distribution ) N.W 28.6KG
Charge time(by sun): 6-7hours (with enough strong shine) Unit size 1469*420*395mm
Working TEMP( ℃ )  -25~+65℃ carton size

1530*130*520mm/

710*420*310mm

Charge / Storage 0 - 45℃ Q'ty/ctn: 1set/ctn
CCT (k): 5000k-6500k GW.for carton: 33.KG
20GP container: 155pcs 40GP container: 376pcs
Working mode Working time : Light control + Time control
The lamp attomatically turn on after sunset , and off when sunrise.

Alternative working mode for your ref. :
 During the working time ,4 hours on full capacity + 2 hours half power + 6 hours of 25% capacity


1. LiFepo4 battery can work in extreme high temperature surrounding,battery can work well under 25℃ to 65℃ environment temperature,system will stop charging battery over 65℃ and recovery below 65℃;
2. Intelligent lighting control system is with smart timely calculation function , system can smartly calculate remaining battery capacity in bad weather to adapt LED lighting working mode to make sure long lighting time;

3. Automatic self cleaning.

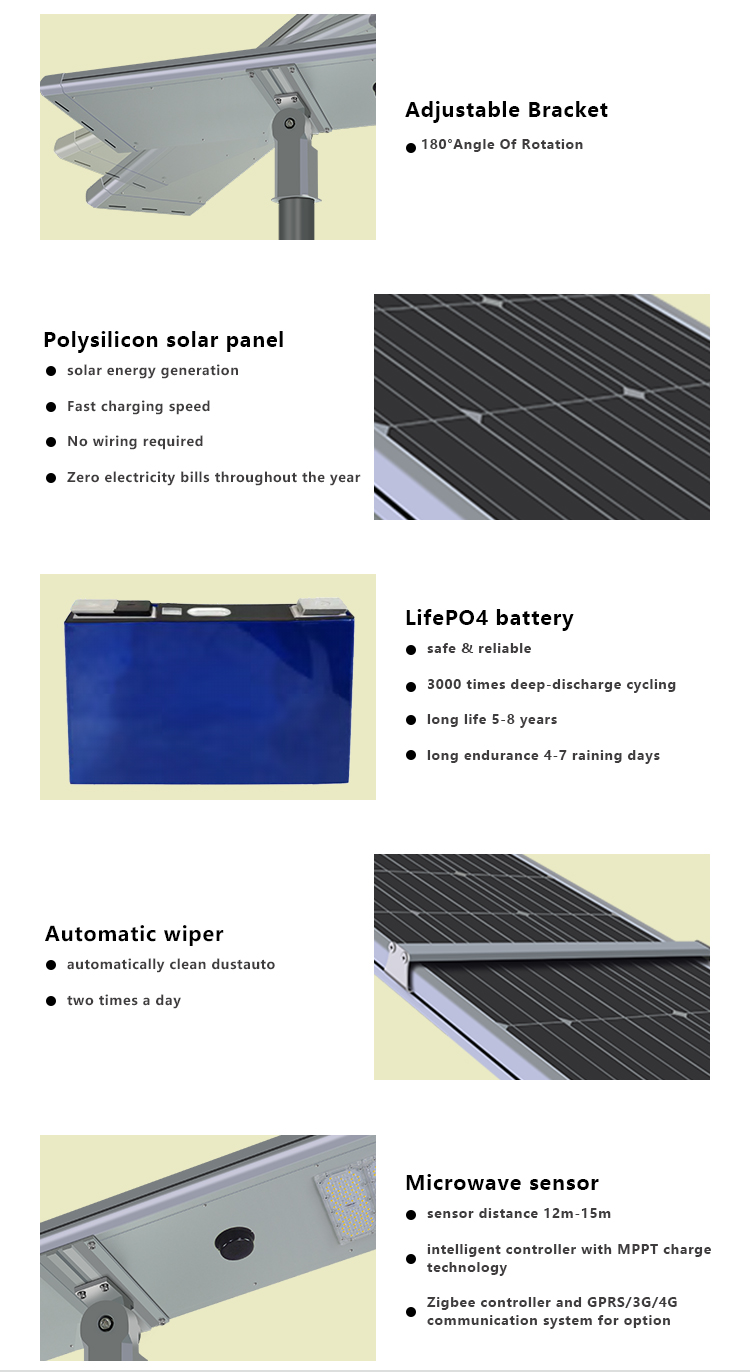

Product Details:

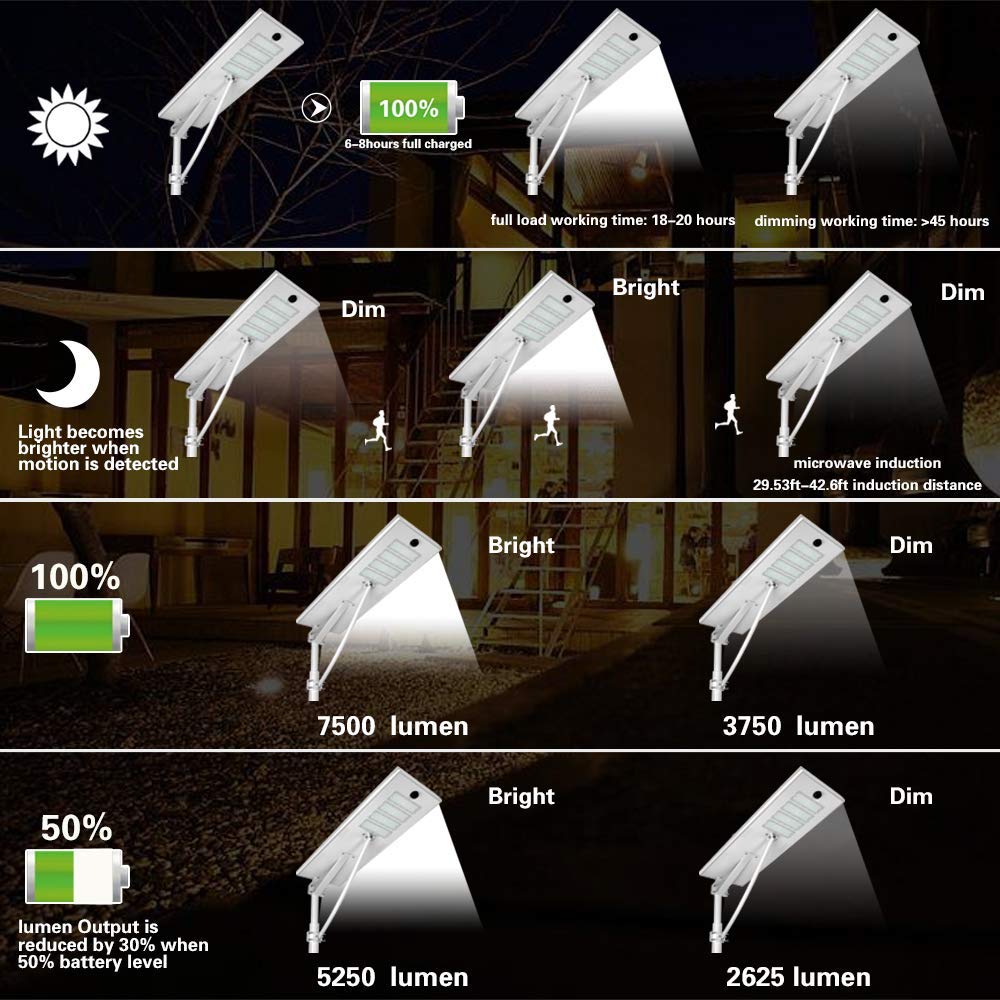

* There are two working modes for integrated light: full power working mode and energy saving working mode.
* Energy saving working mode means the light will dim to 30 % working efficiency when nobody passes by. When people or vehicle passe by, the sensor will detect the motion and the light will lighten up to 100% efficiency. The brightness of the light will be reduced gradually to 25% after the people and vehicle pass through.




3800



6

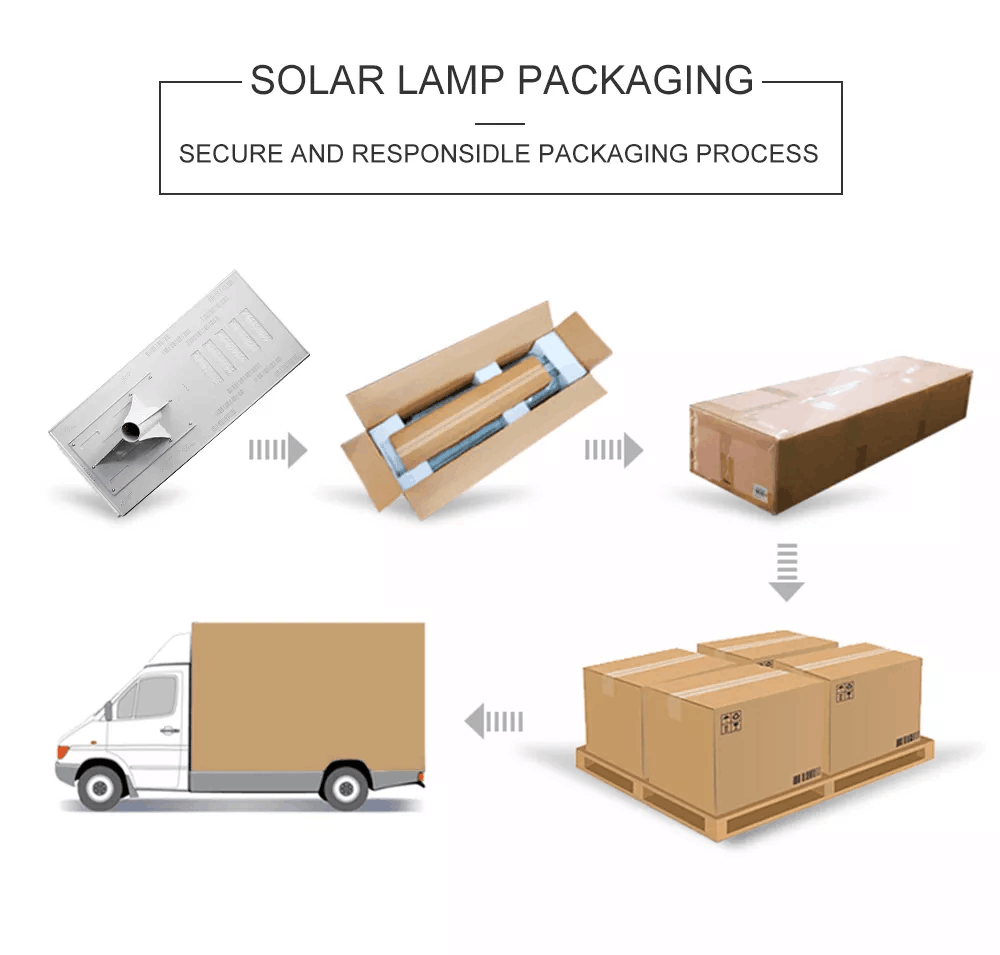

4134

4745

4757



DURAPOWER LED Lights Warranty:


 We do the warranty not from a guarantee words or paper, but from our quality confidence and responsibility to our customers

-----(1) If controller failed, we'll send new controller.

-----(2) If LED failed, we'll send new LED.

-----(3) Unclear reason, we'll sent full new set.


 FAQ for DURAPOWER LED Lights:


Q1. Can I have a sample order for LED Light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q2. What about the lead time for your LED Lights?

A: 1~50pcs(3 days)51~200pcs(7 days)201~100pcs(10 days)>1000pcs(Agreement)


Q3. Do you have any MOQ limit for LED Light order?

A: Low MOQ, 1pc for sample checking is available


Q4. How do you ship the LED Lights and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.


Q5. How to proceed an order for LED Light?

A: Firstly let us know your requirements or application.

    Secondly We quote according to your requirements or our suggestions.

    Thirdly customer confirms the samples and sends the payment for formal order.

    Finally we arrange the production.



Q6. Is it OK to print my logo on LED Light product?

A: Yes. Please inform us formally before our production and confirm the design


Q7: Do you offer guarantee for the products?

A: Yes, we offer 3-5 years warranty to our products.


Q8: How to deal with the faulty?

A: Firstly, our products are produced in strict quality control system and the defective rate will be less than 0.3%.

Secondly, during the guarantee period, we will send new lights with new order for small quantity.


  • Product Description

    Self Clean Solar Street Light


    Quotation sheet of 120W All in one Solar Street Light
    Model: DP-SSL80W-SC CRI >70Ra
    Solar panel Max power: 18V130W (monocrtystalline silicon) Special Function Self Cleaning
    Solar panel Life time: 25 years Lamps material of main: aluminium alloy
    Battery Type: LiFePo4 battery 12.8V 66AH Certificate: CE / ROHS / IP65
    LED Max power: 12.V 120W Warranty period: 3years
    Led chip brand: 3030 LED chips with high brightness Mounting height(m): 10-12m
    Lumen (LM): 150-160lm/w Space between light(m): 30-35m
    LED Life time: 50000hours Inner box: /
    Lighting Viewing Angle: 65°x 120°(bar wing street light distribution ) N.W 28.6KG
    Charge time(by sun): 6-7hours (with enough strong shine) Unit size 1469*420*395mm
    Working TEMP( ℃ )  -25~+65℃ carton size

    1530*130*520mm/

    710*420*310mm

    Charge / Storage 0 - 45℃ Q'ty/ctn: 1set/ctn
    CCT (k): 5000k-6500k GW.for carton: 33.KG
    20GP container: 155pcs 40GP container: 376pcs
    Working mode Working time : Light control + Time control
    The lamp attomatically turn on after sunset , and off when sunrise.

    Alternative working mode for your ref. :
     During the working time ,4 hours on full capacity + 2 hours half power + 6 hours of 25% capacity


    1. LiFepo4 battery can work in extreme high temperature surrounding,battery can work well under 25℃ to 65℃ environment temperature,system will stop charging battery over 65℃ and recovery below 65℃;
    2. Intelligent lighting control system is with smart timely calculation function , system can smartly calculate remaining battery capacity in bad weather to adapt LED lighting working mode to make sure long lighting time;

    3. Automatic self cleaning.


    Product Details:

    * There are two working modes for integrated light: full power working mode and energy saving working mode.
    * Energy saving working mode means the light will dim to 30 % working efficiency when nobody passes by. When people or vehicle passe by, the sensor will detect the motion and the light will lighten up to 100% efficiency. The brightness of the light will be reduced gradually to 25% after the people and vehicle pass through.




    3800



    6

    4134

    4745

    4757



    DURAPOWER LED Lights Warranty:


     We do the warranty not from a guarantee words or paper, but from our quality confidence and responsibility to our customers

    -----(1) If controller failed, we'll send new controller.

    -----(2) If LED failed, we'll send new LED.

    -----(3) Unclear reason, we'll sent full new set.


     FAQ for DURAPOWER LED Lights:


    Q1. Can I have a sample order for LED Light?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


    Q2. What about the lead time for your LED Lights?

    A: 1~50pcs(3 days)51~200pcs(7 days)201~100pcs(10 days)>1000pcs(Agreement)


    Q3. Do you have any MOQ limit for LED Light order?

    A: Low MOQ, 1pc for sample checking is available


    Q4. How do you ship the LED Lights and how long does it take to arrive?

    A: We usually ship by DHL, UPS, FedEx. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.


    Q5. How to proceed an order for LED Light?

    A: Firstly let us know your requirements or application.

        Secondly We quote according to your requirements or our suggestions.

        Thirdly customer confirms the samples and sends the payment for formal order.

        Finally we arrange the production.



    Q6. Is it OK to print my logo on LED Light product?

    A: Yes. Please inform us formally before our production and confirm the design


    Q7: Do you offer guarantee for the products?

    A: Yes, we offer 3-5 years warranty to our products.


    Q8: How to deal with the faulty?

    A: Firstly, our products are produced in strict quality control system and the defective rate will be less than 0.3%.

    Secondly, during the guarantee period, we will send new lights with new order for small quantity.

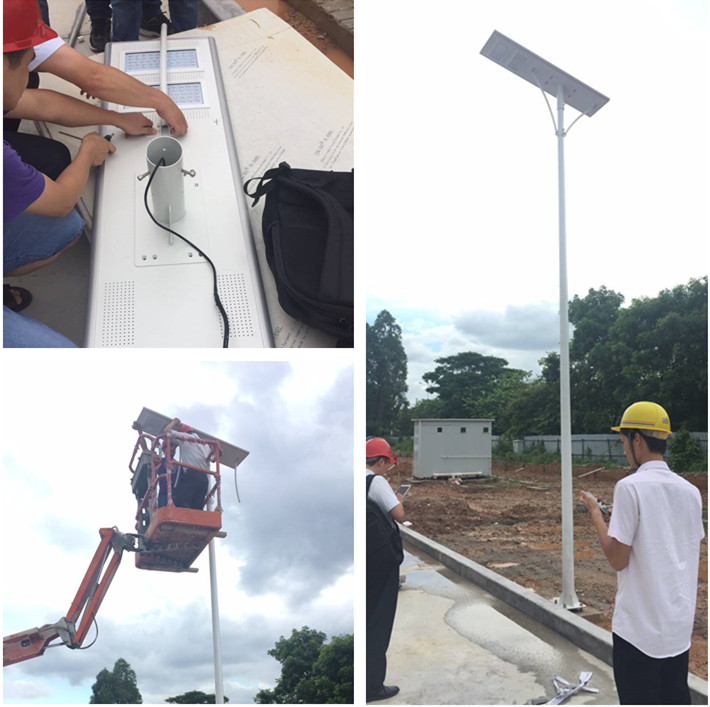

Easy to installation in 5 mins.

Each light in a commercial system is independent of each other and doesn't need main power grid connectivity. No digging, no wiring, simply install and let the sun do the work!

1. Install bracket support

Fix the multi-angel brackrt buckles on the solar panel with 6pcs M6x20 screws. Be sure 'up' towards to led light.


2. Rotating Platform

Use 6pcs M6x12 screws to fix the 360° rotating platform,according to the orientarion of the road.



3. Combination

Use 2pcs M8x30 screws and 1set M8x100 screw to fix the multi-angle brackrt buckles. Choose the right holes according to the installation position of the sun at 2:00pm.

4. Install light

Fix the light fixture to the pole with 8pcs M10x25 screws.

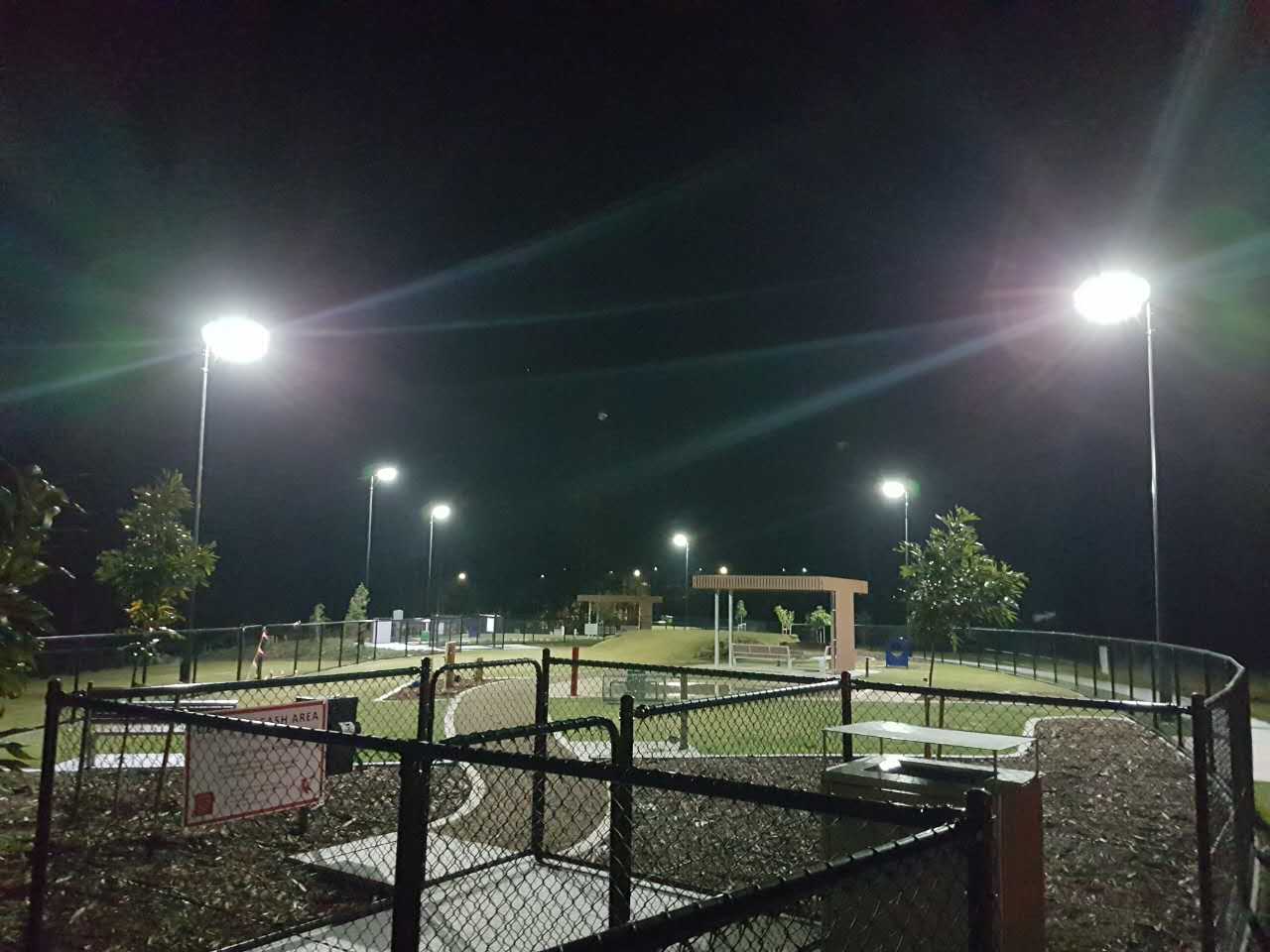

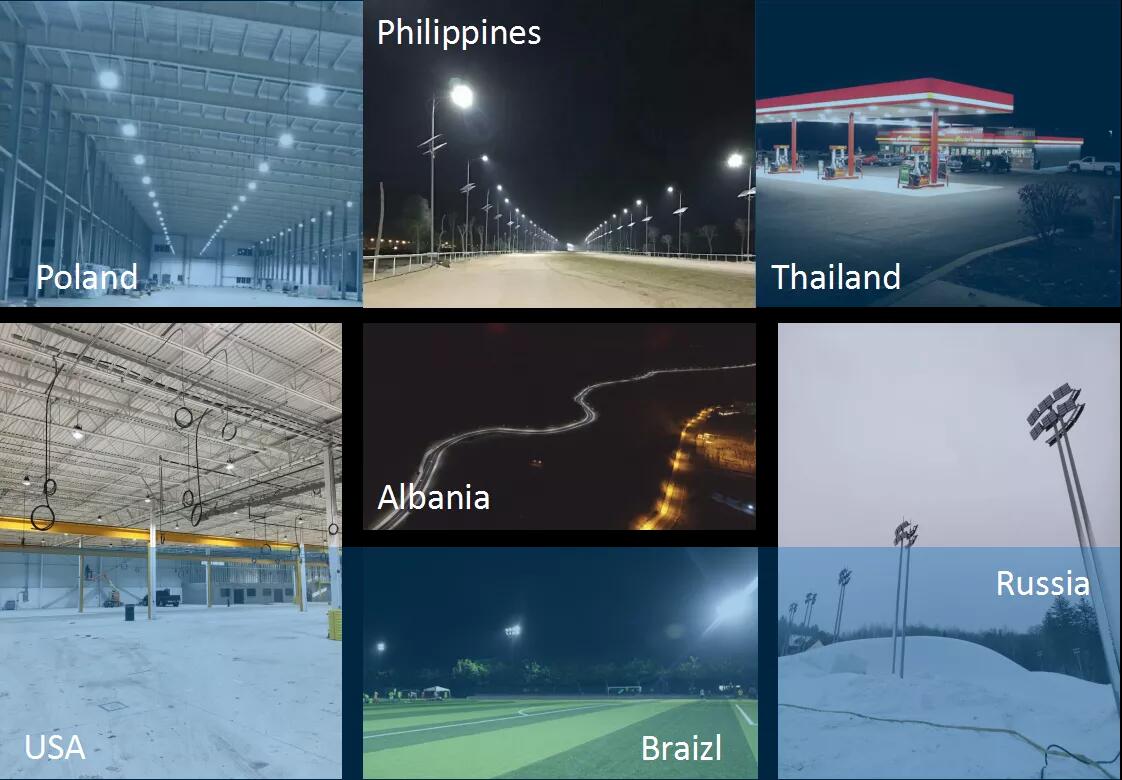

Check out Project Gallery
