Fly Hawk Series All In One Smart Solar Street Lights

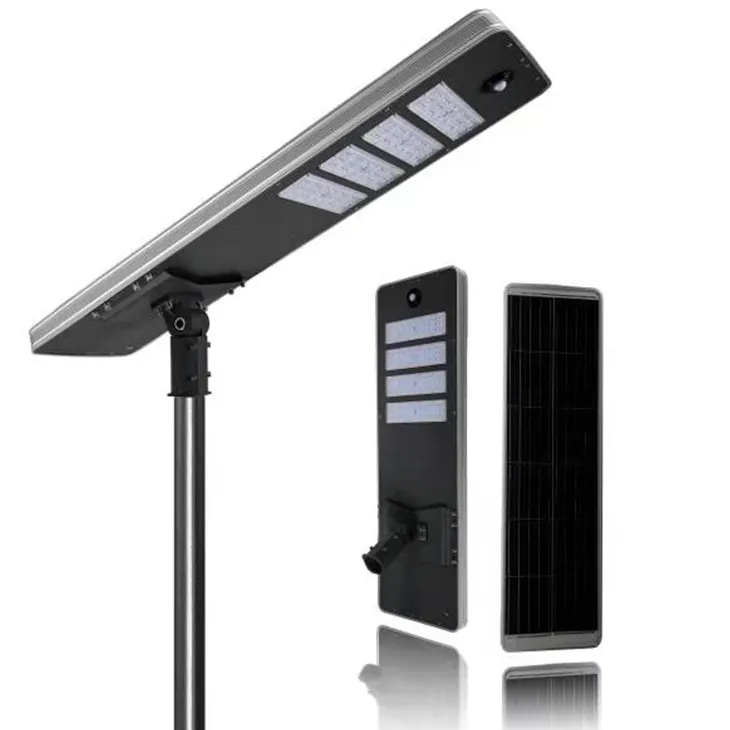

All In One Integrated Modern Solar LED Street Lights

Industrial design appearance attracts more market attention
Classic all-in-one design, by using Philips LED chip (180lm/w) with LiFePO4 lithium battery, well-favored by the market.
High power all in one solar street light, customized specification maximum to 240W
By using Philips led chip (180lm/w) with wide beam angle COB lens to improve the use of effective light. The number of lamp bead modules can be added or subtracted at will.
IoT solar street light intelligent lighting system is optional.
You can expect 8-10 years of quality operation from Shenzhen Durapower all-in-one solar-led street light.

FH Series is HeiSolar's flagship model, tailor made for government solar street lighting project.

'Fly Hawk' shape light body, 'All In One' Modern and elegent appearance.
Rotatable solar panel design (5 angle) to maximum efficiency of solar energy.
All die-casting aluminum light body zinc plated anti-rust corrosion.
Perfect modular structure design, no wiring, easily replace the battery and other parts.
100% powered by solar. Support Customized Hybrid Solar Street Light With Wind Turbine.
Product Feactures
Here are some advantageous features of our Solar LED Lighting Products, help you understand moreover of our solar lamps
Product Videos
Technical Resources Download
Declaration of Conformity 001.jpg
DP-SSL08.pdf
DP-SSL08.pdf
EMC.pdf
IEC60598-2-3-Durapower.pdf
LVD.pdf
RoHS.pdf
Solar LED street light -Catalogue.pdf

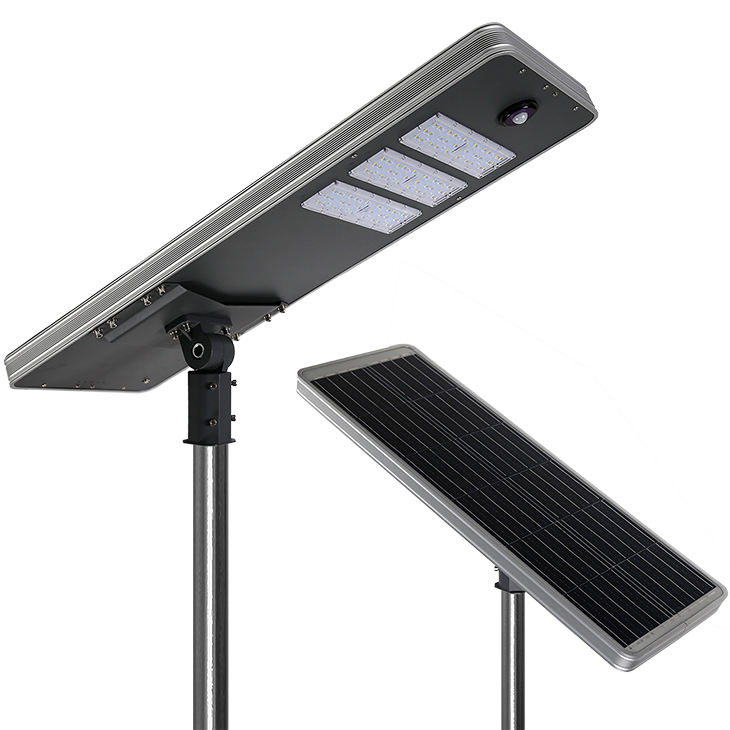

All In One Integrated Modern Solar LED Street Lights

Product Description

Specification of 60W Led solar street light :

Model DP-SSL60W-N Solar panel Max power 18V 64W
Lumen 6000lm LED Lamp power 60W
Light Source 3030 Advantage Independently developed controller
Protection Level IP65 Color temperature 6000-6500K
Working Temperature -20°C-+60°C Battery Type 302WH Lithium battery
Warranty 3~5 years Working Hours 10-12hours, 5-7rainy days
Mounting height 7-8M Charger Time(by sun) 8 hours
product size 910*371*57mm Certificate IES, CE. ROHS, IP65. ISO
Package size 930*120*437mm Net Weight 8.5kg
Gross Weight 9kg

Lighting mode by remote control 1.Time control mode, 2.Sensoring mode, 3,Time control+Sensoring mode

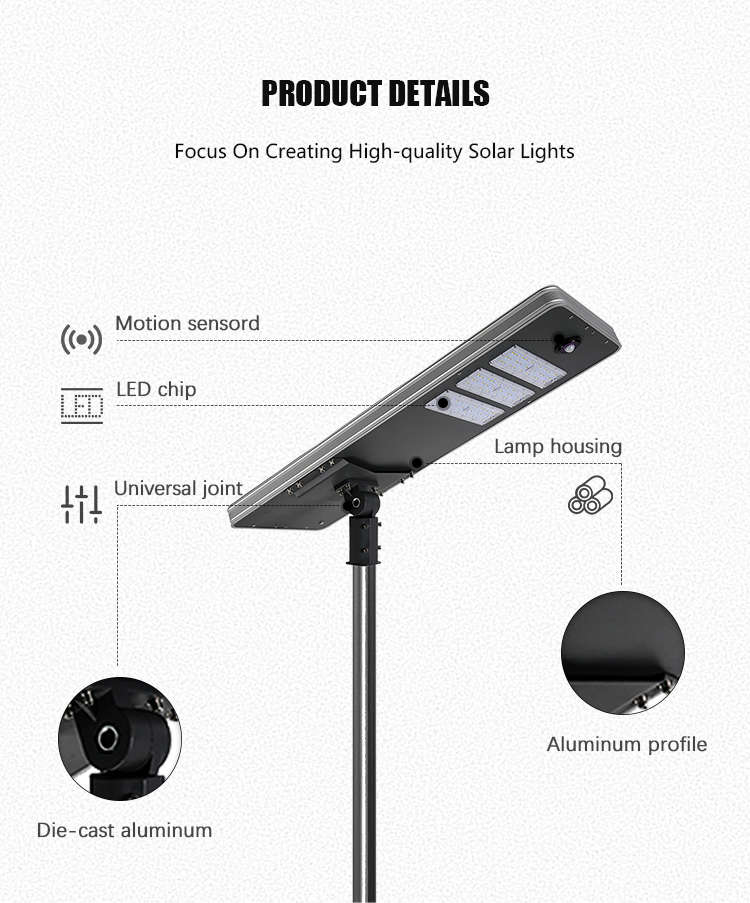

delicate appearance outdoor waterproof ip65 40w all in one led solar street lights


1. All in one Solar garden&street lights, New invention patent products.
2. From DP-SSL60W-N (equal to 70w)
3. Integration design, put solar panel, Led lamp, battery and cotroller all in a box, without any cable.
4. What you need to do when you receive them is to put them on the pole or wall, easy to ship, install and maintain.

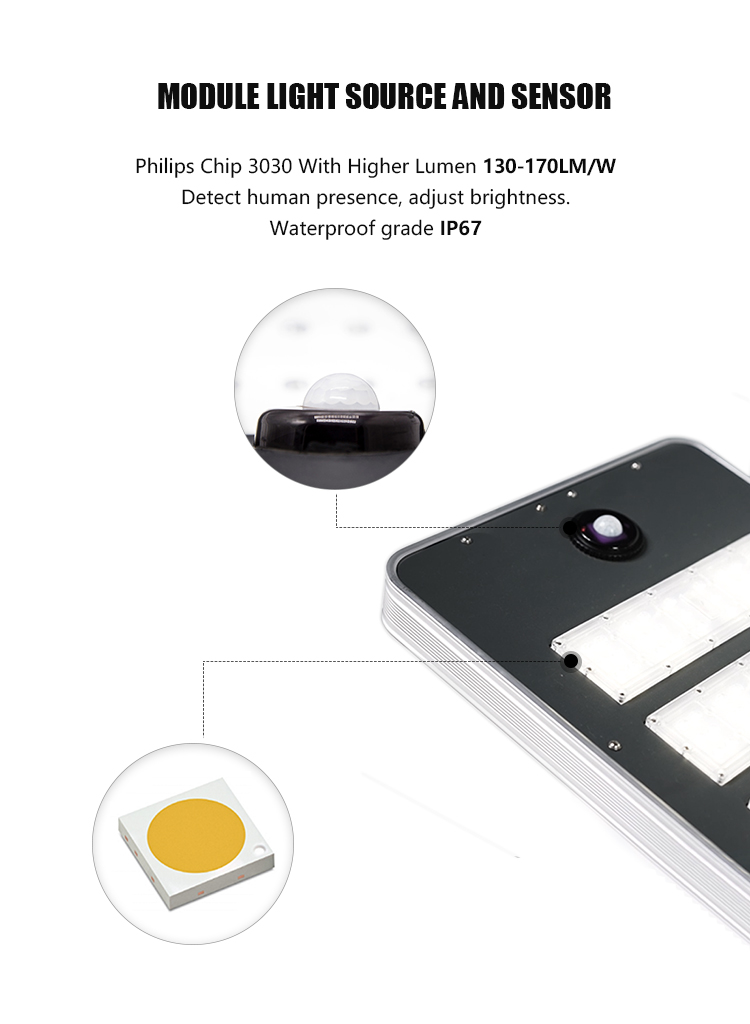

delicate appearance outdoor waterproof ip65 40w all in one led solar street lights

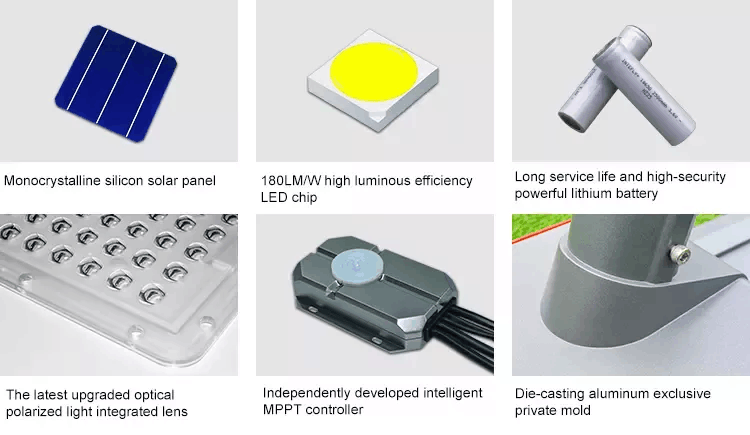

2413

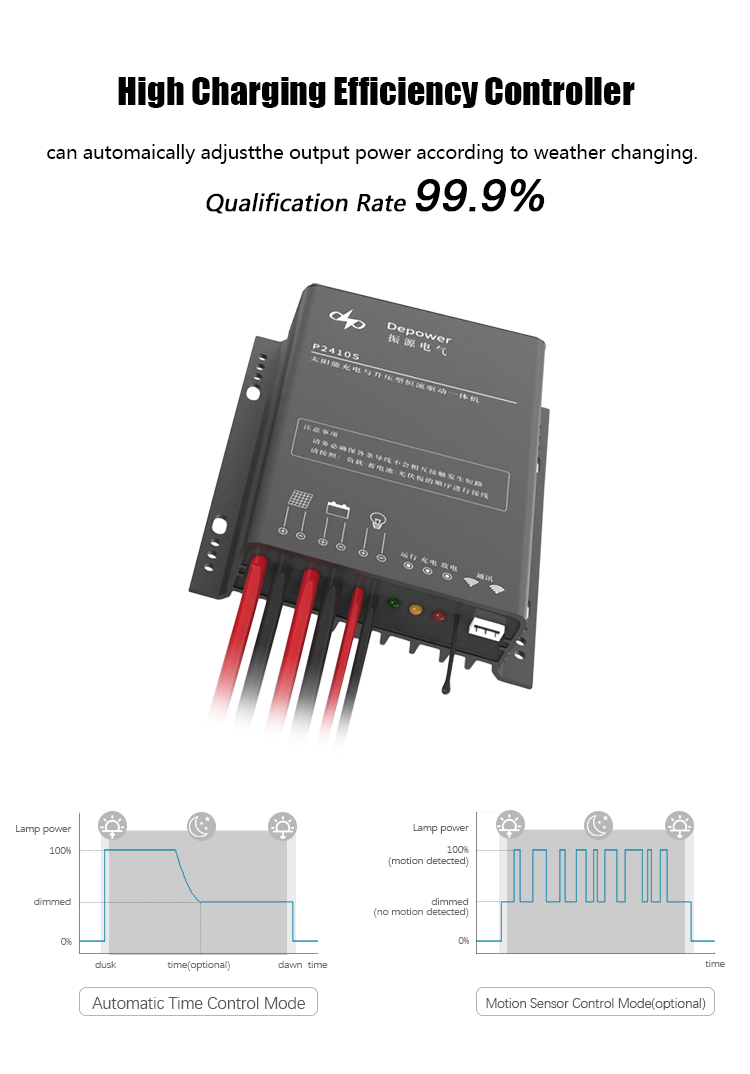

delicate appearance outdoor waterproof ip65 40w all in one led solar street lights

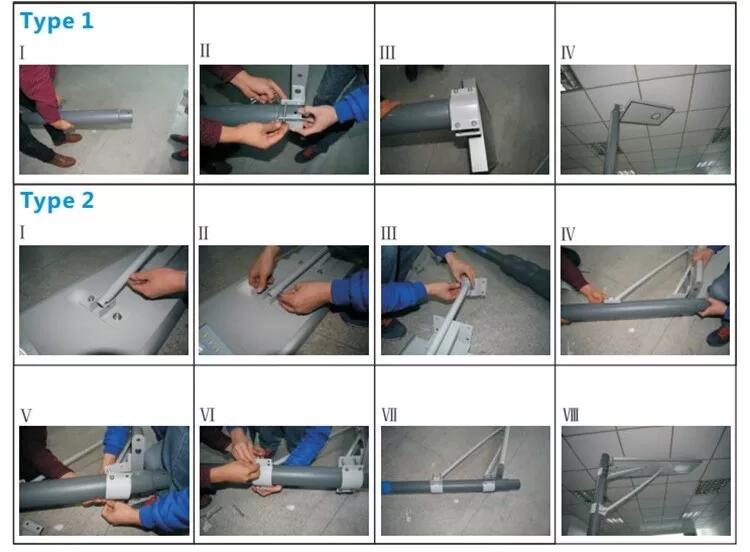

2448

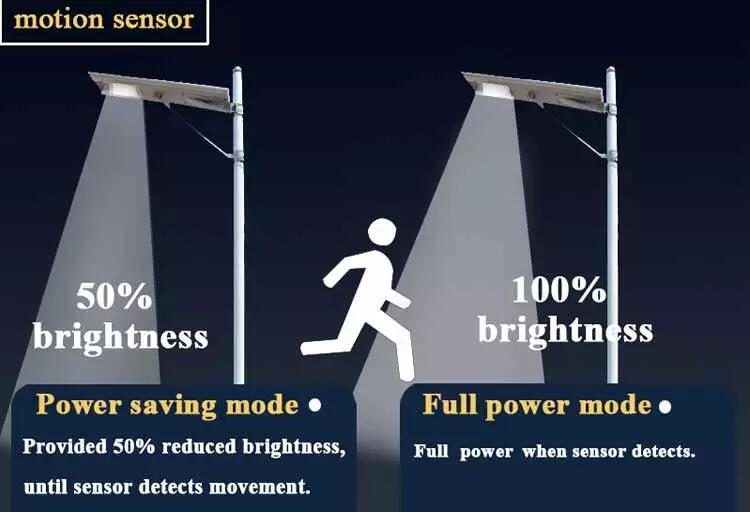

2424

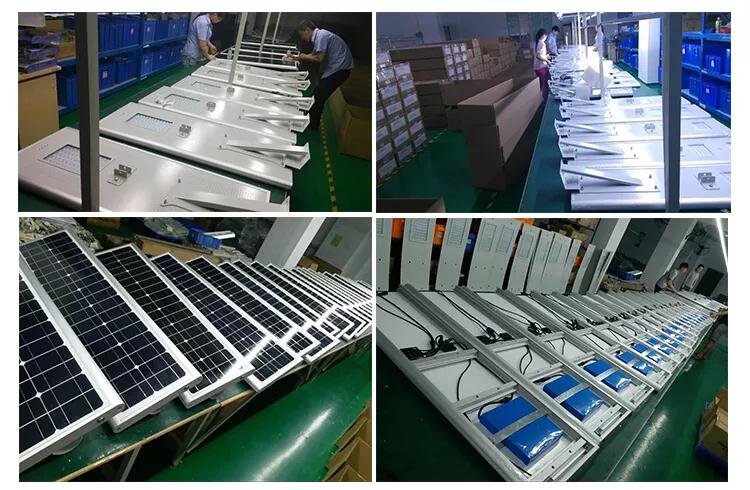

2437

2513


4100

FAQ

1. Are you a manufacturer or trading company ?
A: Yes, we are manufacturer of solar street & garden lights for 10 years, has the capacity of R & D, accept OEM and ODM.


2. How to proceed an order for the solar led lights?

A: First, let us know your requirement or application;

   Second, we quote according to your requirements or our suggestions;

   Third, clients confirm the order and place deposit for formal order;

   Forth, we arrange the production.


3. Do you offer guarantee for the products?

A: Yes, we offer 2-5  years warranty for our products.


4. Is it ok to print my logo on the products?

A: Yes, please inform us formally confirm the design before our production.


5. Do you have any MOQ limit for the order?

A: Low MOQ, 1pcs sample for testing is okay.


6.How do you ship the goods and how long does it take to arrive?

A: Usually, International Express such as DHL, UPS etc and air cargo for samll order, it takes 3-5 days to arrive, sea cargo for mass order, the lead time vary from clinets' area, usually 1-2 weeks.





  • Product Description

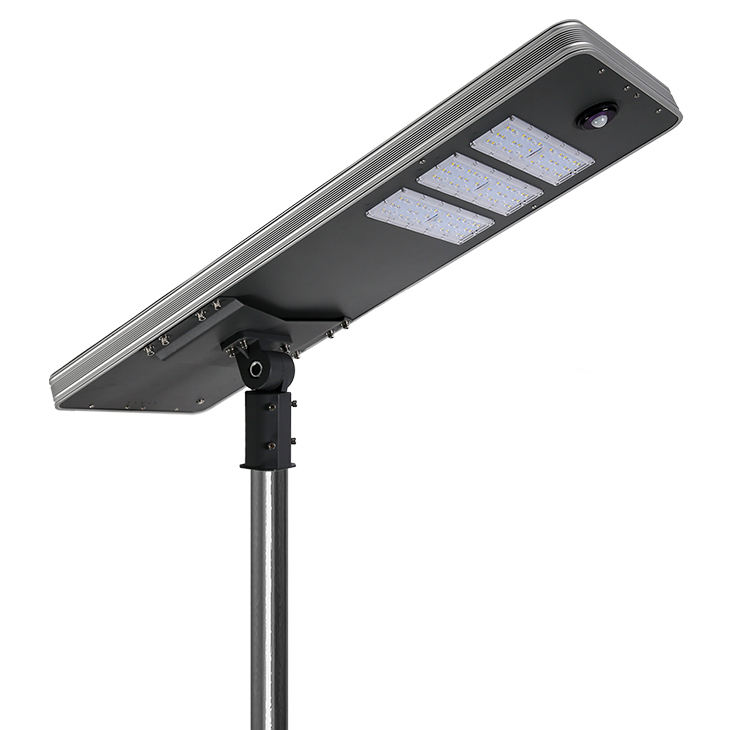

    All In One Integrated Modern Solar LED Street Lights

    Product Description

    Specification of 60W Led solar street light :

    Model DP-SSL60W-N Solar panel Max power 18V 64W
    Lumen 6000lm LED Lamp power 60W
    Light Source 3030 Advantage Independently developed controller
    Protection Level IP65 Color temperature 6000-6500K
    Working Temperature -20°C-+60°C Battery Type 302WH Lithium battery
    Warranty 3~5 years Working Hours 10-12hours, 5-7rainy days
    Mounting height 7-8M Charger Time(by sun) 8 hours
    product size 910*371*57mm Certificate IES, CE. ROHS, IP65. ISO
    Package size 930*120*437mm Net Weight 8.5kg
    Gross Weight 9kg

    Lighting mode by remote control 1.Time control mode, 2.Sensoring mode, 3,Time control+Sensoring mode

    delicate appearance outdoor waterproof ip65 40w all in one led solar street lights


    1. All in one Solar garden&street lights, New invention patent products.
    2. From DP-SSL60W-N (equal to 70w)
    3. Integration design, put solar panel, Led lamp, battery and cotroller all in a box, without any cable.
    4. What you need to do when you receive them is to put them on the pole or wall, easy to ship, install and maintain.



    delicate appearance outdoor waterproof ip65 40w all in one led solar street lights

    2413

    delicate appearance outdoor waterproof ip65 40w all in one led solar street lights

    2448

    2424

    2437

    2513


    4100

    FAQ

    1. Are you a manufacturer or trading company ?
    A: Yes, we are manufacturer of solar street & garden lights for 10 years, has the capacity of R & D, accept OEM and ODM.


    2. How to proceed an order for the solar led lights?

    A: First, let us know your requirement or application;

       Second, we quote according to your requirements or our suggestions;

       Third, clients confirm the order and place deposit for formal order;

       Forth, we arrange the production.


    3. Do you offer guarantee for the products?

    A: Yes, we offer 2-5  years warranty for our products.


    4. Is it ok to print my logo on the products?

    A: Yes, please inform us formally confirm the design before our production.


    5. Do you have any MOQ limit for the order?

    A: Low MOQ, 1pcs sample for testing is okay.


    6.How do you ship the goods and how long does it take to arrive?

    A: Usually, International Express such as DHL, UPS etc and air cargo for samll order, it takes 3-5 days to arrive, sea cargo for mass order, the lead time vary from clinets' area, usually 1-2 weeks.





Easy to installation in 5 mins.

Each light in a commercial system is independent of each other and doesn't need main power grid connectivity. No digging, no wiring, simply install and let the sun do the work!

1. Install bracket support

Fix the multi-angel brackrt buckles on the solar panel with 6pcs M6x20 screws. Be sure 'up' towards to led light.


2. Rotating Platform

Use 6pcs M6x12 screws to fix the 360° rotating platform,according to the orientarion of the road.



3. Combination

Use 2pcs M8x30 screws and 1set M8x100 screw to fix the multi-angle brackrt buckles. Choose the right holes according to the installation position of the sun at 2:00pm.

4. Install light

Fix the light fixture to the pole with 8pcs M10x25 screws.

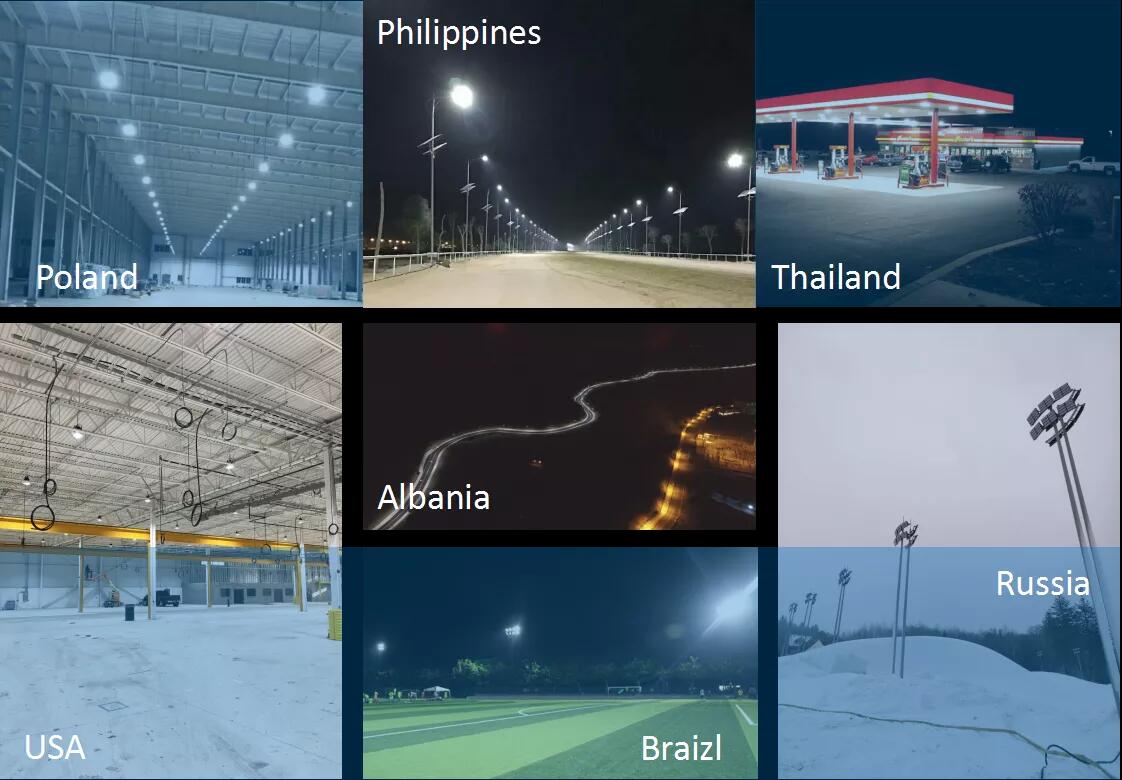

Check out Project Gallery
