Advantage of Integrated Solar Street Light
1, Independent installation,flexible and easy, no need to dig trench, connection layout and backfill, saving construction costs.
2, No need extra enhancement equipment, saving costs of related parts.
3, Automatic controlling without people management,saving power and management costs.
4, PIR motion sensor system, lover power consumption, long time keeping, high brightness and long lifespan.
5, Take energy from the sun,saving energy and environmental protection, saving operation costs.
6, High-efficient storage lithium battery, lightweight,small volume and large capacity, high times of charging and discharging
7, Easy maintenance, safe using, no danger of electric shock.
8, HD solar IP camera

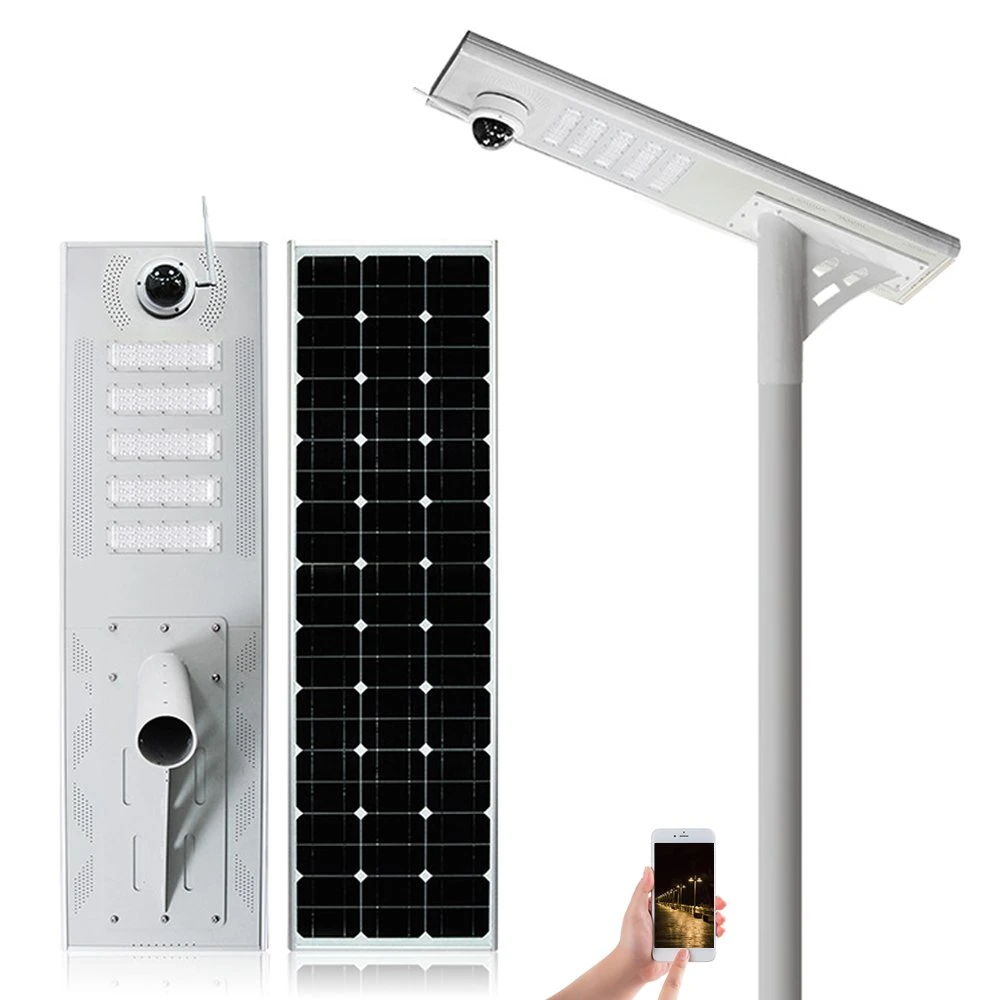

20W 30W 40W 50W 60W 80W 100W 120W 150W 200W 250W Integrated All in one Solar Street Light with CCTV Camera
45m Max IR Distance 30W Solar Street Light with Mono Solar Panel High Effciency 2MP 45X Two Way Audio Ap Hotspot Motion Detection CCTV Camera
Product Parameters
| Solar panel | Max power | 60W/18V | ||
| Lifespan | 25 years | |||
| Battery | Type | LiFe PO4 battery | ||
| Lifespan | 2 years | |||
| LED source | Power | 12V/30W | ||
| LED chip brand | 3030 Bridgelux led chips with high brightness | |||
| Lumen | 150-160LM/W | |||
| Lifespan | 50000hours | |||
| Wifi Camera | Main features: 1. 2.0MP,1/2.8" CMOS SENSOR 2. H.265 video coding, support dual-stream 3. ≤2.0MP,25FPS (CIF) 4. support Wifi 802.11b/n/g wireless standard 5. Built-in TF storage card (Max storage 64G) 6. Exquisite small metal shell | |||
| Specifications | ||||
| 1. Hardware stricture | built-in RTOS design+2.0MP 1/2.8"CMOS sensor | |||
| 2. Minimum Lux | 0.1 Lux@F1.2 for color mode, 0.01 Lux@F1.2 for white and black mode | |||
| 3. SNR | >= 50dB | |||
| 4. Image quality | automatic white balance and exposure, 3D DNR, D-WDR | |||
| 5. Video function: | OSD character superimposition,planing vedio and vedio replay (need to put the TF card in) | |||
| 6. Audio | Optional(need External pickup to use, support G.711 audio code decoding standard | |||
| 7. LENS FOCUS | fixed-focus | |||
| 8. Coding form | H.264 Main Profile/High Profile;H.265/HEVC Main Profile/High Profile | |||
| 9. Image Resolution | 2.0MP main code stream, 1920*1080 | |||
| 10. Image model | Subcode flow S640*360MM, support Horizontal flip and vertical flip | |||
| 11. Video compression code rate | 500Kbps-5Mbps, Adjustable constantly, support CBR/VBR | |||
| 12. Network port | 10-100 Adaptive Ethernet interface,RJ45 port, anti-thunder design | |||
| 13. WIFI | Support wifi 802.11b/n/g, still monitoring without network. | |||
| 14. FTP | support IP HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ONVIF/P2P etc. | |||
| 15. Data storage | support built-in TF card, 4G-64G optional | |||
| 16. LENS | 3.0MP M12 lens, 3.6mm | |||
| 17. IR LED | 15PCSΦ5 IR LED, IR distance 15-20M | |||
| 19. Service function | support IE6.0 and the above browser(built-in Web Server devices), support Fron-end storage playback/download, support Unified client software, support CMS system APPs | |||
| 20. General parameter | DC12V, size Φ108mm*80mm(excluding antenna), working temp. -20ºC~50ºC, humidity <90% rh=""> | |||
| Lamp body material | Aluminium alloy | |||
| Charging time | 6-7hours (with enough strong shine) | |||
| Lighting time | 10-12 hours per day for 3-5 days | |||
| Products certificate | CE/ROHS/IP65 | |||
| Warranty | 3 years | |||
| Package | Product size | 1136*325*44mm | Carton size | 1190*360*220mm |
| N.W. | 13.5kg | G.W. | 14.5KG | |
| Q'TY/CTN | 1sets/ctn | |||
| Cantainer | 20'GP | 280sets | 40'HP | 710sets |
Working principle of integrated solar street light

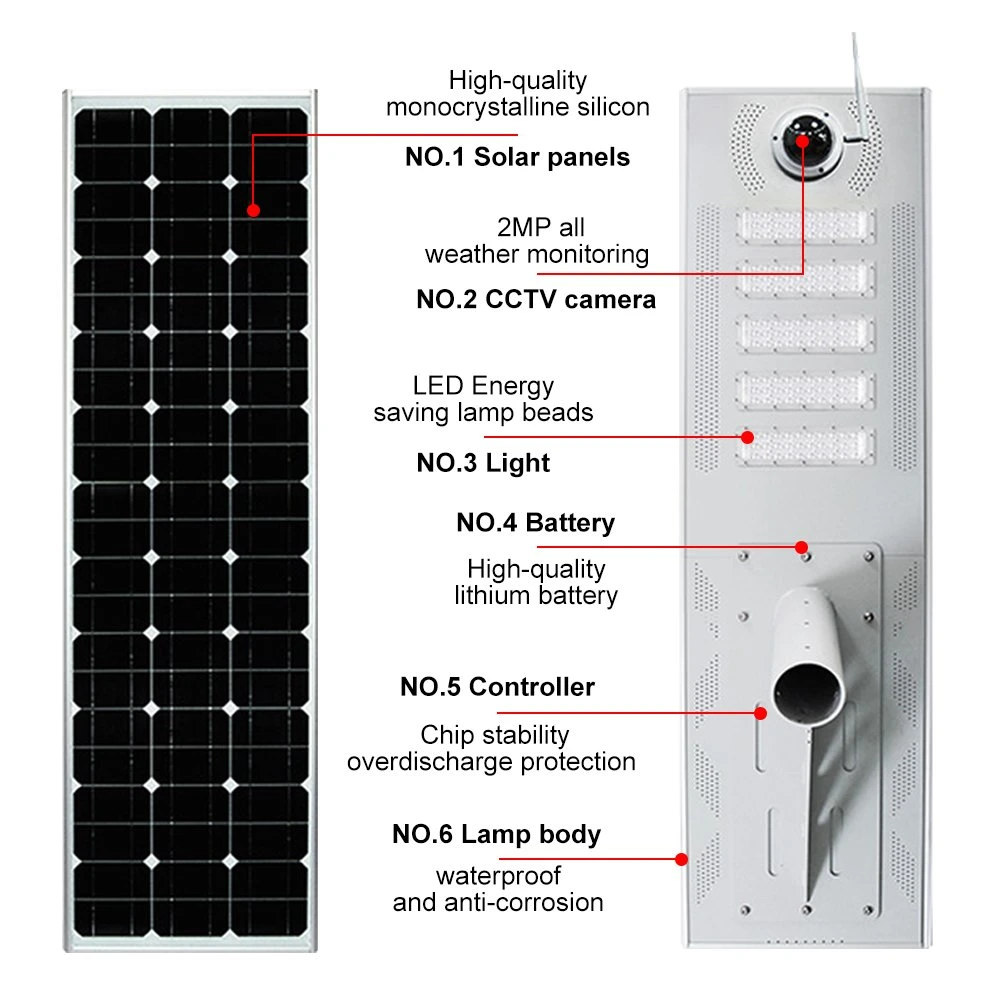

Integrated street light mainly includes high efficiency Solar panel,Lithium Battery(LiFePO4),Intelligent Controller and Imported LED Chip.

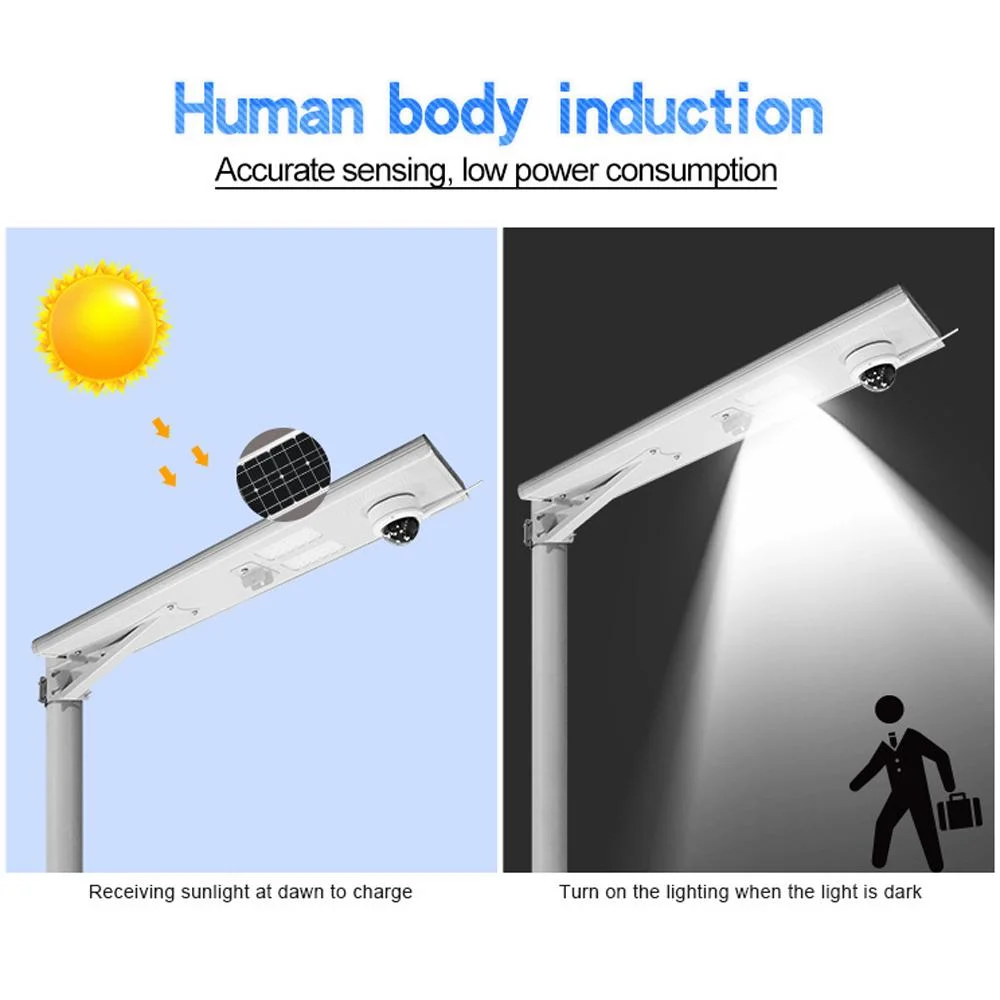

During the day, the solar cells absorb the energy generated by solar photons, charge the lithium battery pack through intelligent controller, when night falls or the light intensity around the lamp is low or reaching to the limited time, lithium battery pack will be provided power to led lamps by controller and the lamp working.
20W 30W 40W 50W 60W 80W 100W 120W 150W 200W 250W Integrated All in one Solar Street Light with CCTV Camera
45m Max IR Distance 30W Solar Street Light with Mono Solar Panel High Effciency 2MP 45X Two Way Audio Ap Hotspot Motion Detection CCTV Camera
Product Parameters
| Solar panel | Max power | 60W/18V | ||
| Lifespan | 25 years | |||
| Battery | Type | LiFe PO4 battery | ||
| Lifespan | 2 years | |||
| LED source | Power | 12V/30W | ||
| LED chip brand | 3030 Bridgelux led chips with high brightness | |||
| Lumen | 150-160LM/W | |||
| Lifespan | 50000hours | |||
| Wifi Camera | Main features: 1. 2.0MP,1/2.8" CMOS SENSOR 2. H.265 video coding, support dual-stream 3. ≤2.0MP,25FPS (CIF) 4. support Wifi 802.11b/n/g wireless standard 5. Built-in TF storage card (Max storage 64G) 6. Exquisite small metal shell | |||
| Specifications | ||||
| 1. Hardware stricture | built-in RTOS design+2.0MP 1/2.8"CMOS sensor | |||
| 2. Minimum Lux | 0.1 Lux@F1.2 for color mode, 0.01 Lux@F1.2 for white and black mode | |||
| 3. SNR | >= 50dB | |||
| 4. Image quality | automatic white balance and exposure, 3D DNR, D-WDR | |||
| 5. Video function: | OSD character superimposition,planing vedio and vedio replay (need to put the TF card in) | |||
| 6. Audio | Optional(need External pickup to use, support G.711 audio code decoding standard | |||
| 7. LENS FOCUS | fixed-focus | |||
| 8. Coding form | H.264 Main Profile/High Profile;H.265/HEVC Main Profile/High Profile | |||
| 9. Image Resolution | 2.0MP main code stream, 1920*1080 | |||
| 10. Image model | Subcode flow S640*360MM, support Horizontal flip and vertical flip | |||
| 11. Video compression code rate | 500Kbps-5Mbps, Adjustable constantly, support CBR/VBR | |||
| 12. Network port | 10-100 Adaptive Ethernet interface,RJ45 port, anti-thunder design | |||
| 13. WIFI | Support wifi 802.11b/n/g, still monitoring without network. | |||
| 14. FTP | support IP HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ONVIF/P2P etc. | |||
| 15. Data storage | support built-in TF card, 4G-64G optional | |||
| 16. LENS | 3.0MP M12 lens, 3.6mm | |||
| 17. IR LED | 15PCSΦ5 IR LED, IR distance 15-20M | |||
| 19. Service function | support IE6.0 and the above browser(built-in Web Server devices), support Fron-end storage playback/download, support Unified client software, support CMS system APPs | |||
| 20. General parameter | DC12V, size Φ108mm*80mm(excluding antenna), working temp. -20ºC~50ºC, humidity <90% rh=""> | |||
| Lamp body material | Aluminium alloy | |||
| Charging time | 6-7hours (with enough strong shine) | |||
| Lighting time | 10-12 hours per day for 3-5 days | |||
| Products certificate | CE/ROHS/IP65 | |||
| Warranty | 3 years | |||
| Package | Product size | 1136*325*44mm | Carton size | 1190*360*220mm |
| N.W. | 13.5kg | G.W. | 14.5KG | |
| Q'TY/CTN | 1sets/ctn | |||
| Cantainer | 20'GP | 280sets | 40'HP | 710sets |
Working principle of integrated solar street light
Integrated street light mainly includes high efficiency Solar panel,Lithium Battery(LiFePO4),Intelligent Controller and Imported LED Chip.
During the day, the solar cells absorb the energy generated by solar photons, charge the lithium battery pack through intelligent controller, when night falls or the light intensity around the lamp is low or reaching to the limited time, lithium battery pack will be provided power to led lamps by controller and the lamp working.
