Fly Hawk Series All In One Smart Solar Street Lights

Remotely Wireless Control All In Two Solar Street Light

FEATURES
60° and 360° solar panel design to get maximum solar power.
Patent design with aesthetic visual exterior.
8 colors tail light to decorate city and indicate road curve.
APP Bluetooth Smart Control.
MPPT charge controller with 12m detection microwave sensor.
High Lumen efficiency 180lm/w with USA Bridgelux or Philips LED.

FH Series is HeiSolar's flagship model, tailor made for government solar street lighting project.

'Fly Hawk' shape light body, 'All In One' Modern and elegent appearance.

Rotatable solar panel design (5 angle) to maximum efficiency of solar energy.
All die-casting aluminum light body zinc plated anti-rust corrosion.
Perfect modular structure design, no wiring, easily replace the battery and other parts.
100% powered by solar. Support Customized Hybrid Solar Street Light With Wind Turbine.

Request A Free Quote

Remotely Wireless Control All In Two Solar Street Light

Product Feactures

Here are some advantageous features of our Solar LED Lighting Products, help you understand moreover of our solar lamps

Product Videos

Technical Resources Download

Declaration of Conformity 001.jpg

DP-SSL08.pdf

DP-SSL08.pdf

EMC.pdf

IEC60598-2-3-Durapower.pdf


LVD.pdf

RoHS.pdf

Solar LED street light -Catalogue.pdf

Download

Product Description

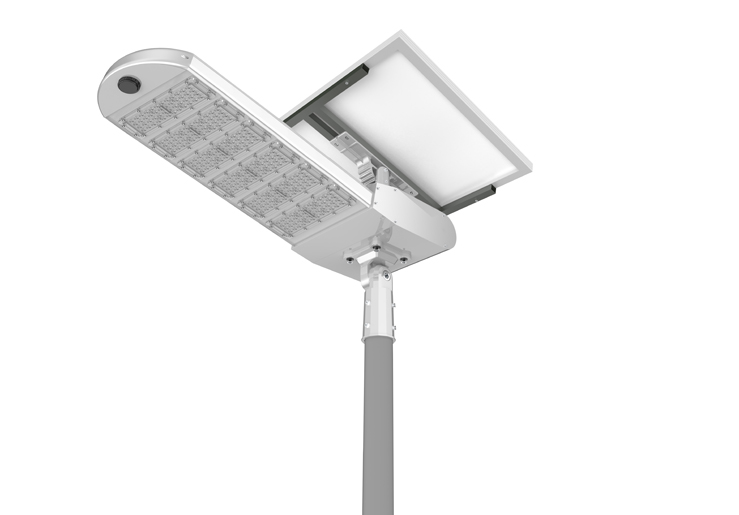

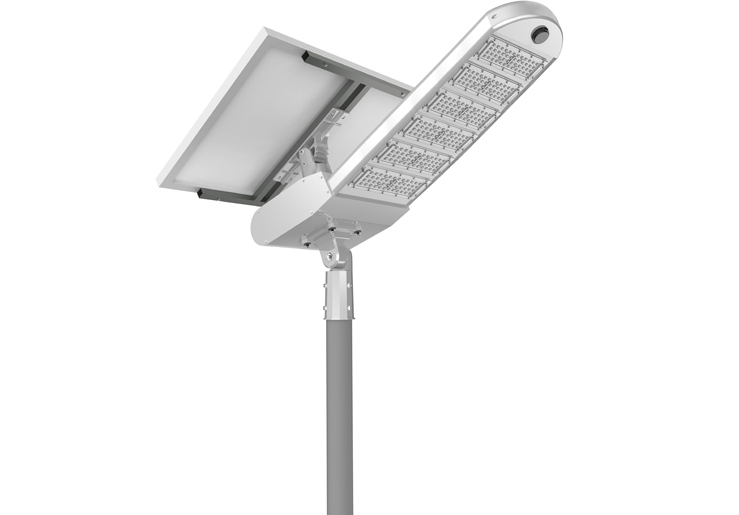

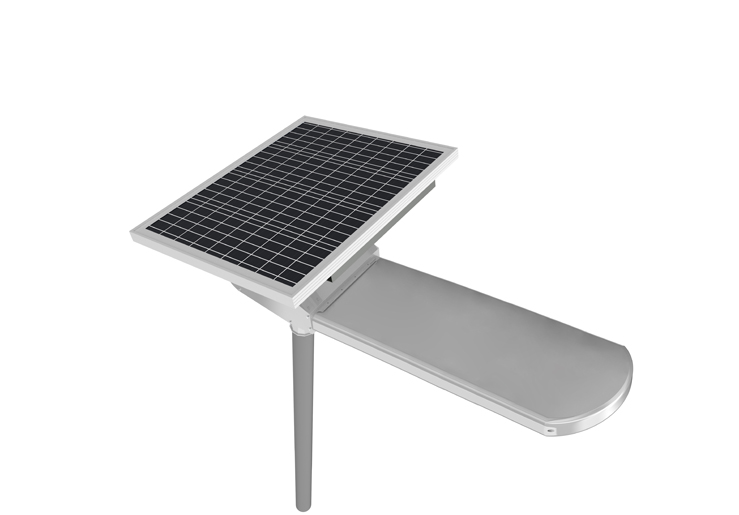

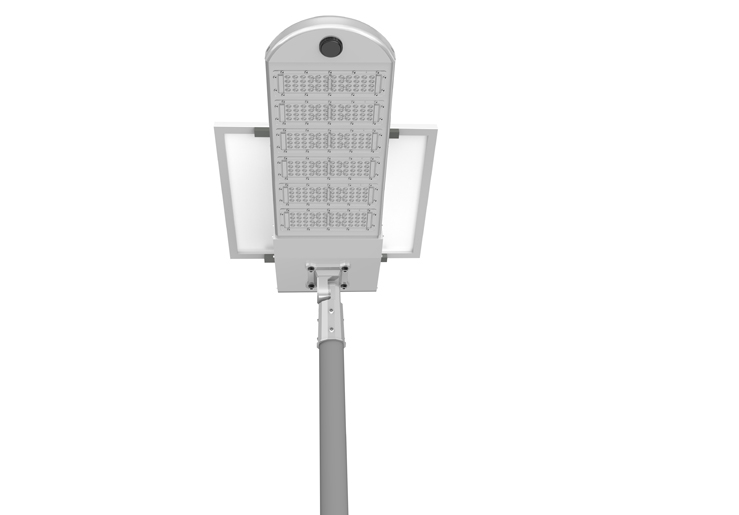

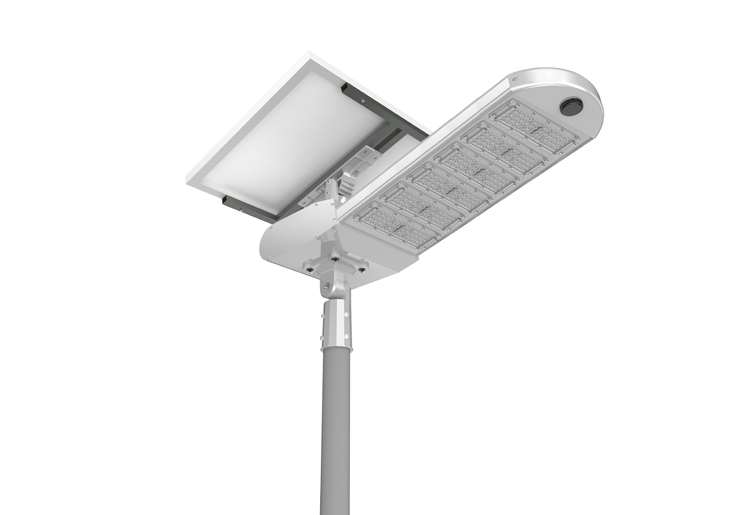

200W Remotely Wireless Control All In Two Solar Street Light

1-6S

Batwing solar street light is to ensure solar panel absorb sunlight efficient according to adjust PV orientation, product presentation part to make the showing how the solar lighting working different like LED light on-off / timing / dimming / mode/ stage in front of customers or government by mobile APP control.

FEATURES

60° and 360° solar panel design to get maximum solar power.

Patent design with aesthetic visual exterior.

8 colors tail light to decorate city and indicate road curve.

APP Bluetooth Smart Control.

MPPT charge controller with 12m detection microwave sensor.

High Lumen efficiency 160lm/w with USA Bridgelux or Philips LED.

SPECIFICATIONS

Model		DP-SSL50W	DP-SSL90W	DPSSL120W	DP-SSL150W	DP-SSL200W
Mono Solar Panel	Power	50W	90W	120W	150W	200W
	Efficiency	>22%
	Life	25years
LED light	Power	40W	60W	80W	100W	120W
	Color Temp	3000-6500k
	LED Chip	Bridgelux/Philips
	Luminums flux	180lm/w
	Lumen	7200lm	10800lm	14400lm	18000lm	21600lm
	Life	≥50000hrs
CATL LiFePO4 Battery	Capacity	307.2Wh	537.6Wh	614.4Wh	844.8Wh	998.4Wh
CATL LiFePO4 Battery	Life Cycle	3000cycles

Dialux Layout

DP-SSL60W-2

All In Two Solar Street Light Supplier and Manufacturer

High efficiency Mono Solar Panel with TUV, CE,Rohs,ISO

The cost is cheaper than All in one solar road lighting

Easy to install, easy to operate , long life span

New Original LiFePO4 Battery with BMS, more than 2000 cycles

We are a top professional solar street light manufacturer in China.

Product Description

200W Remotely Wireless Control All In Two Solar Street Light

1-6S

FEATURES

60° and 360° solar panel design to get maximum solar power.

Patent design with aesthetic visual exterior.

8 colors tail light to decorate city and indicate road curve.

APP Bluetooth Smart Control.

MPPT charge controller with 12m detection microwave sensor.

High Lumen efficiency 160lm/w with USA Bridgelux or Philips LED.

SPECIFICATIONS

Model		DP-SSL50W	DP-SSL90W	DPSSL120W	DP-SSL150W	DP-SSL200W
Mono Solar Panel	Power	50W	90W	120W	150W	200W
	Efficiency	>22%
	Life	25years
LED light	Power	40W	60W	80W	100W	120W
	Color Temp	3000-6500k
	LED Chip	Bridgelux/Philips
	Luminums flux	180lm/w
	Lumen	7200lm	10800lm	14400lm	18000lm	21600lm
	Life	≥50000hrs
CATL LiFePO4 Battery	Capacity	307.2Wh	537.6Wh	614.4Wh	844.8Wh	998.4Wh
CATL LiFePO4 Battery	Life Cycle	3000cycles

Dialux Layout

DP-SSL60W-2

All In Two Solar Street Light Supplier and Manufacturer

High efficiency Mono Solar Panel with TUV, CE,Rohs,ISO

The cost is cheaper than All in one solar road lighting

Easy to install, easy to operate , long life span

New Original LiFePO4 Battery with BMS, more than 2000 cycles

We are a top professional solar street light manufacturer in China.

Easy to installation in 5 mins.

Each light in a commercial system is independent of each other and doesn't need main power grid connectivity. No digging, no wiring, simply install and let the sun do the work!

企业微信截图_3c9a7666-e949-43ec-97c3-d7ed65fcc87e

1. Install bracket support

Fix the multi-angel brackrt buckles on the solar panel with 6pcs M6x20 screws. Be sure 'up' towards to led light.

企业微信截图_0f008043-107d-4d63-904b-16ac65a2183b

2. Rotating Platform

Use 6pcs M6x12 screws to fix the 360° rotating platform,according to the orientarion of the road.

企业微信截图_98917ffe-354e-4a87-afe0-13ffbc9cc70e

3. Combination

Use 2pcs M8x30 screws and 1set M8x100 screw to fix the multi-angle brackrt buckles. Choose the right holes according to the installation position of the sun at 2:00pm.
